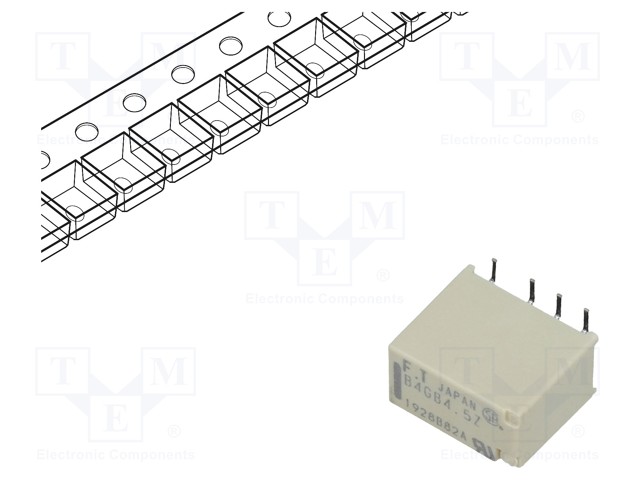

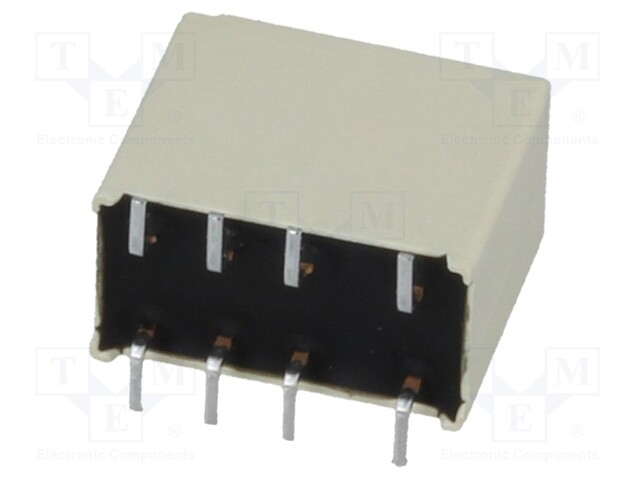

Relay: electromagnetic; DPDT; Ucoil: 4.5VDC; 0.3A/125VAC; 1A/30VDC

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: FTR-B4GB4.5Z-B05
Tootja: FUJITSU
Tootja tootekood: FTR-B4GB4.5Z-B05
  • Mounting
  • Operating temperature
  • Contact material
  • Terminal pitch
  • Body dimensions
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • DC contacts rating @R
  • Contact resistance
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Relay variant
  • Relay variant
  • Type of relay
  • Coil power consumption
  • Relay series

0,00 € 0,00 € (KM-TA) 0.0 EUR

0,00 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 4.5VDC; 0.3A/125VAC; 1A/30VDC

Mounting SMT
Operating temperature -40...85°C
Contact material AgNi + Au
Terminal pitch 2.2mm
Body dimensions 10.6x5.7x9.7mm
Switched voltage ≤ 220V DC, ≤ 250V AC
Coil resistance 203Ω
Rated coil voltage 4.5V DC
Contacts configuration DPDT
DC contacts rating @R 1A / 30V DC
Contact resistance 100MΩ
AC contacts rating @R 300mA / 125V AC
Contact current max. 2A
Relay variant bistable, signal, subminiature
Type of relay electromagnetic
Coil power consumption 100mW
Relay series FTR-B4
