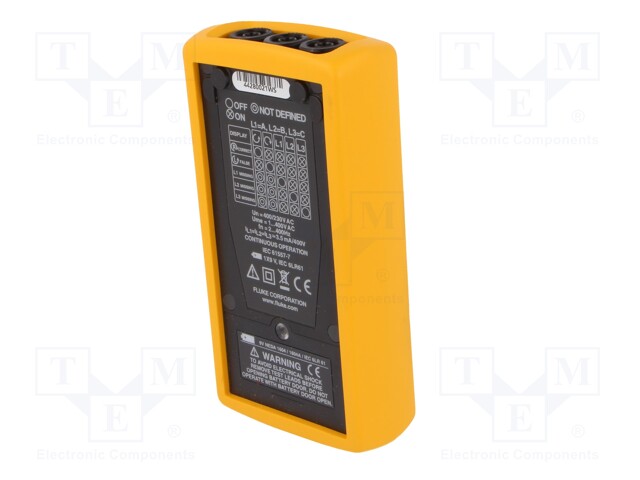

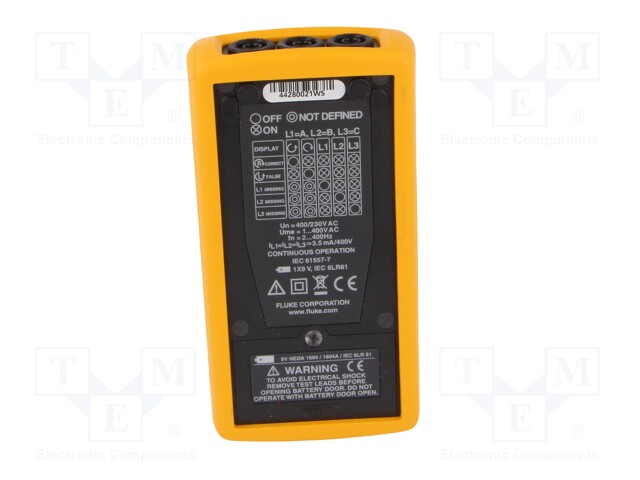

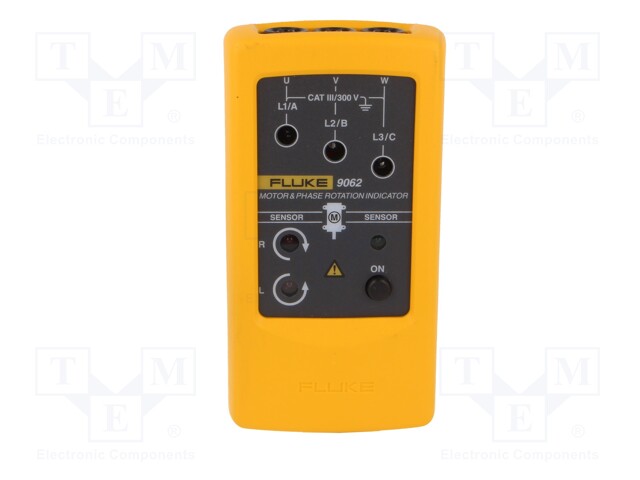

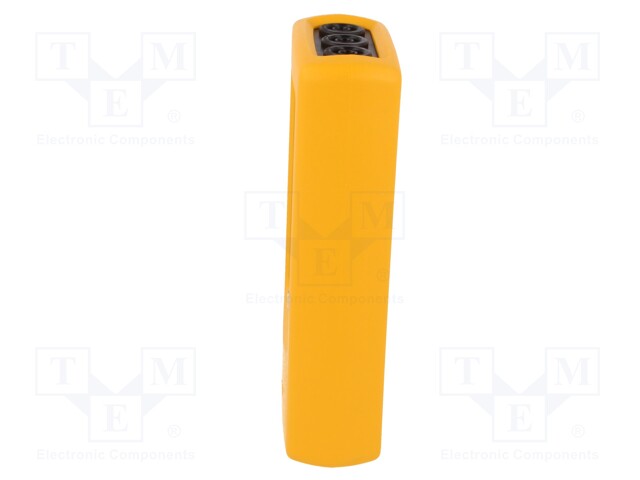

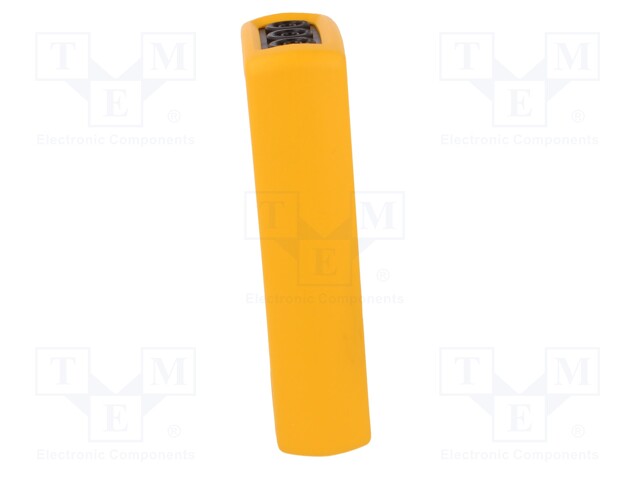

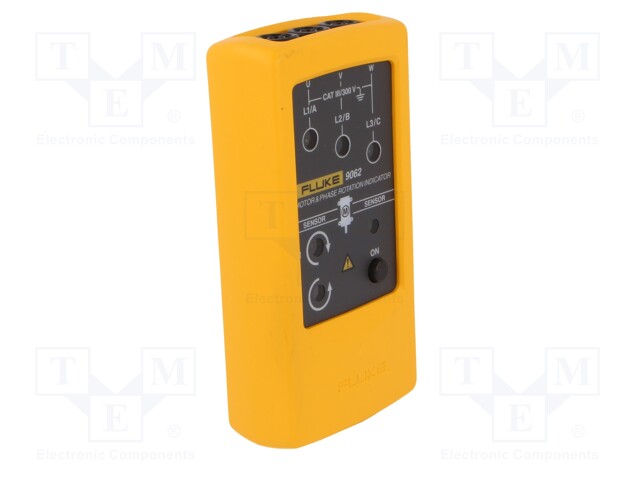

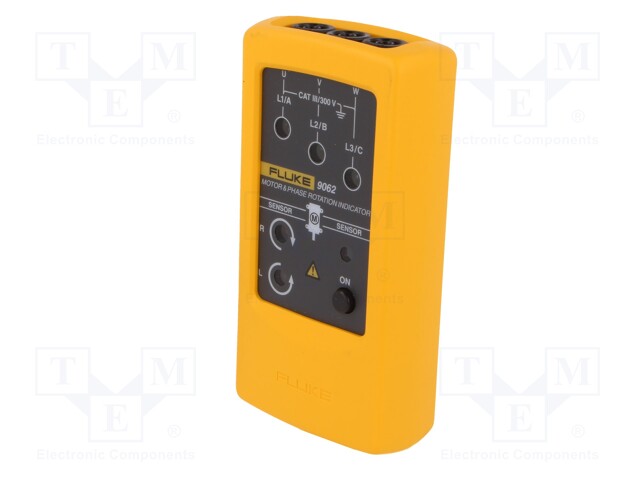

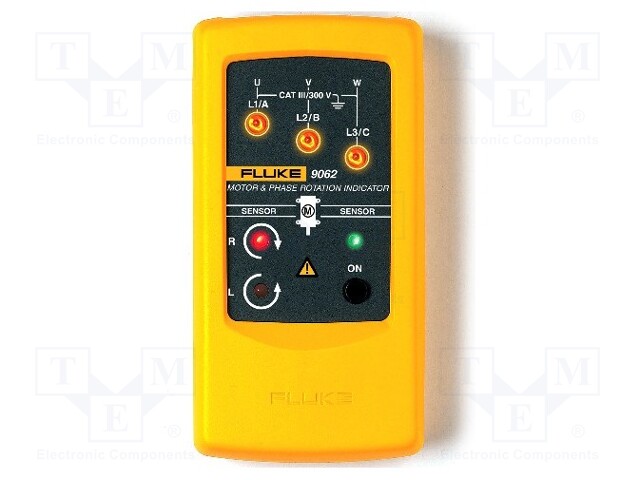

Tester: phase sequence; LED; 120÷400VAC; Freq: 2÷400Hz; IP40
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
FLUKE-9062
Tootja: FLUKE
Tootja tootekood: FLUKE-9062
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3A3B3BE8AB84FF26B&compId=9062____umeng0000.pdf?ci_sign=40cc94b0007ff2fdac9785b15d27ab3b621903eb
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB707E25CAE1DC&compId=INB-TEST-EN.pdf?ci_sign=aaaf551ab9b544baa66bd2816fe4578821c3f28c
- pVersion=0046&contRep=ZT&docId=E1C0437DAD5AA4F1A6F5005056AB5A8F&compId=11078-eng.pdf?ci_sign=f1ccb49ab1a2eee3696281d882b567bd3ced2e5b
Spetsifikatsioon tootele Tester: phase sequence; LED; 120÷400VAC; Freq: 2÷400Hz; IP40
| IP rating | IP40 |
| Body dimensions | 124x61x27mm |
| Kind of display used | LED |
| Operating frequency | 2...400Hz |
| Conform to the norm | CAT III 300V, EN 61010 |
| Measuring instrument features | non-contact determination of rotation field direction, voltage indicator individual for each phase |
| Standard equipment | 3 crocodile clips, test leads ( 3pcs.) |
| Type of tester | phase sequence |
| Pollution degree | 2 |
| Measurement | motor's rotation direction, phase sequence indicators |
| Weight with battery | 150g |
| Phase-to-phase voltage range for phase sequence indication | 120...400V AC, 1...400V AC |
