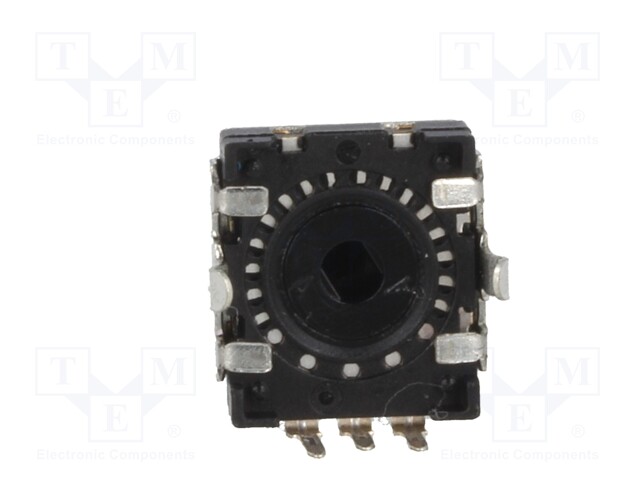

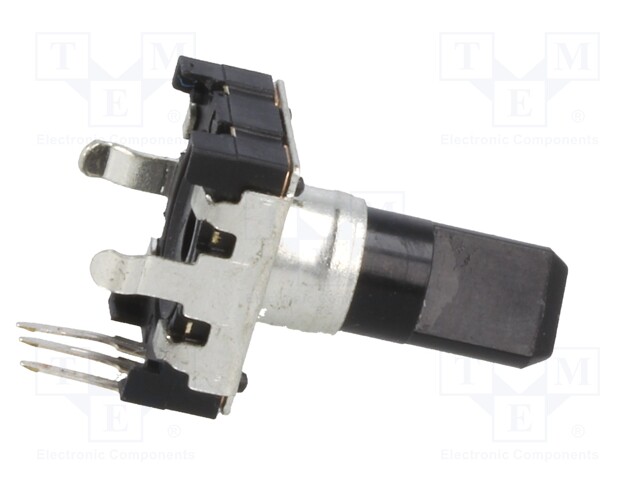

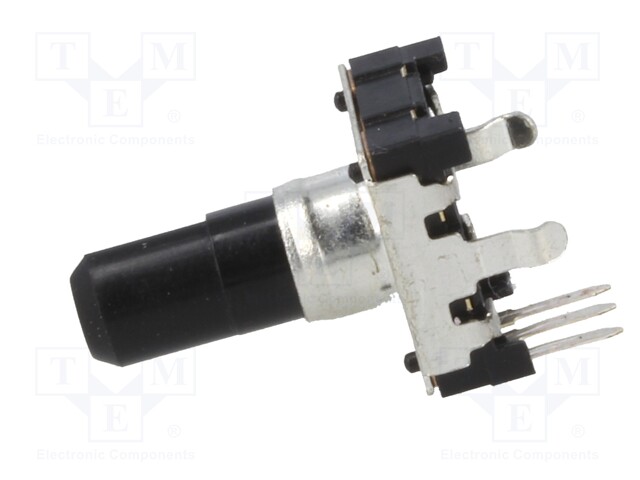

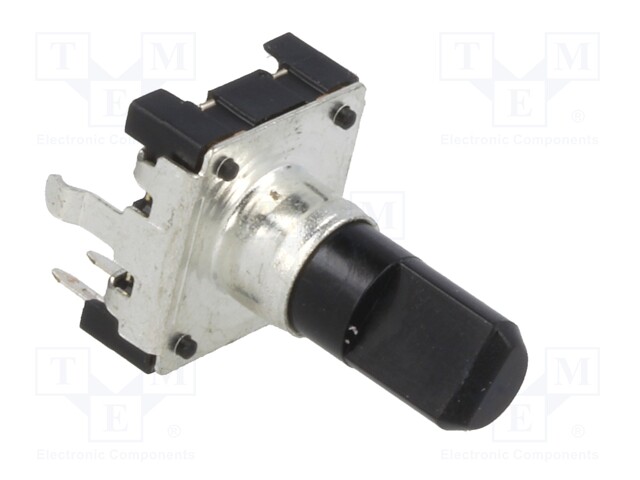

Encoder: incremental; THT; 24imp/revol; two phase A and B; 5mA

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EC12E20-24P24C
    Tootja: SR PASSIVES
    Tootja tootekood: EC12E20-24P24C
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Number of positions
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Spatial orientation 1
    • Thread length
    • Cut depth
    • L shaft length

    1,74 € 1,74 € (KM-TA) 1.74 EUR

    1,74 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Encoder: incremental; THT; 24imp/revol; two phase A and B; 5mA

    Mounting THT
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 5mA
    Number of positions 24
    Terminal pitch 2.54mm
    Body dimensions 12.7x12.4x5.2mm
    Mechanical durability 50000cycles
    Resolution 24imp/revol.
    Output signal two phase A and B
    Shaft length 10mm
    Shaft diameter 6mm
    Shaft surface D spring
    Spatial orientation 1 vertical
    Thread length 5mm
    Cut depth 1.5mm
    L shaft length 15mm
