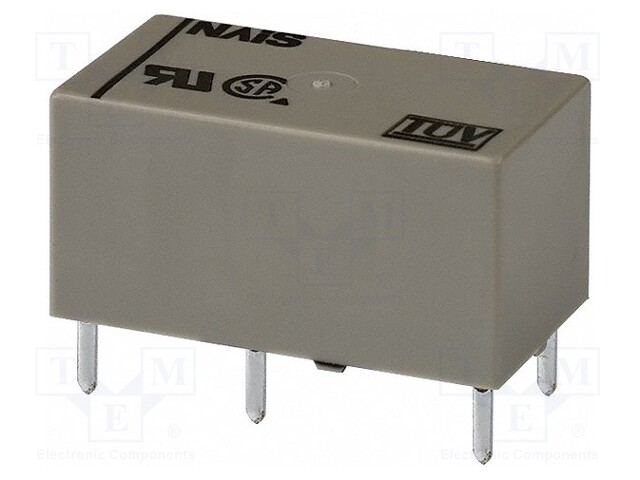

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 9VDC; miniature

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: DSP1-DC9V-F
Tootja: PANASONIC
Tootja tootekood: DSP1-DC9V-F
  • Mounting
  • Mounting
  • Operating temperature
  • Contact material
  • Body dimensions
  • Mechanical durability
  • Switched voltage
  • Switched voltage
  • Coil resistance
  • Rated coil voltage
  • Contacts configuration
  • AC contacts rating @R
  • Contact current max.
  • Relay variant
  • Type of relay
  • Coil voltage min.
  • Coil power consumption
  • Relay series
  • Coil current

10,61 € 10,61 € (KM-TA) 10.61 EUR

10,61 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 9VDC; miniature

Mounting PCB, socket
Operating temperature -40...65°C
Contact material AgSnO<sub>2</sub>

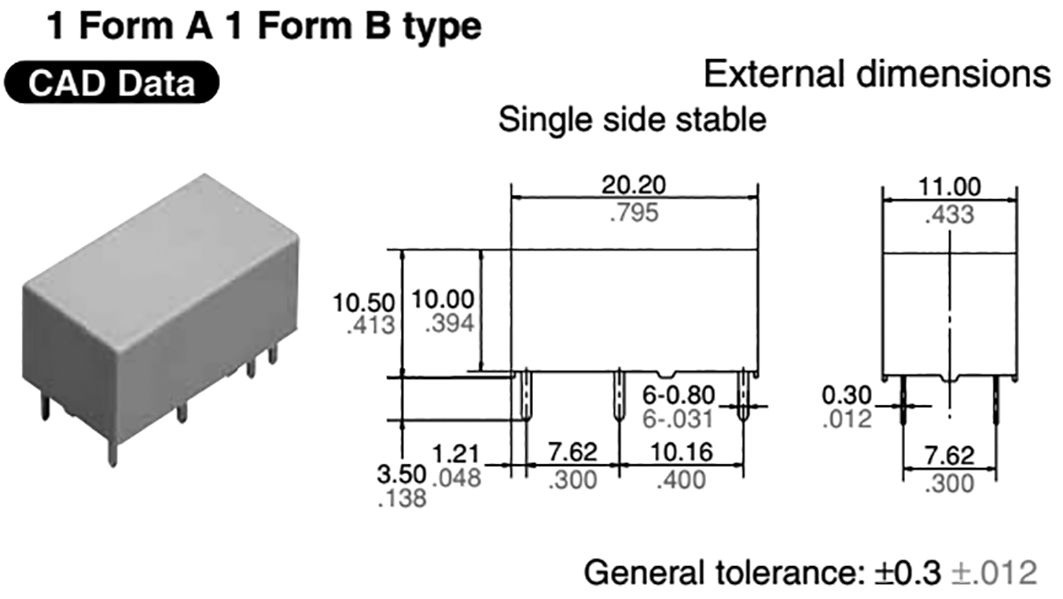

Body dimensions 20.2x11x10.5mm
Mechanical durability 50000000cycles
Switched voltage ≤ 125V DC, ≤ 250V AC
Coil resistance 270Ω
Rated coil voltage 9V DC

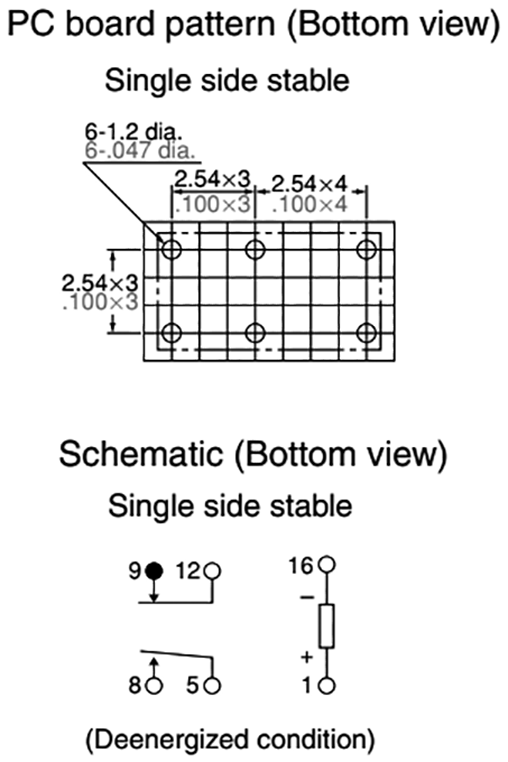

Contacts configuration SPST-NO + SPST-NC
AC contacts rating @R 5A / 250V AC
Contact current max. 5A
Relay variant miniature
Type of relay electromagnetic
Coil voltage min. 7.2V DC
Coil power consumption 300mW
Relay series DS-P
Coil current 33.3mA
