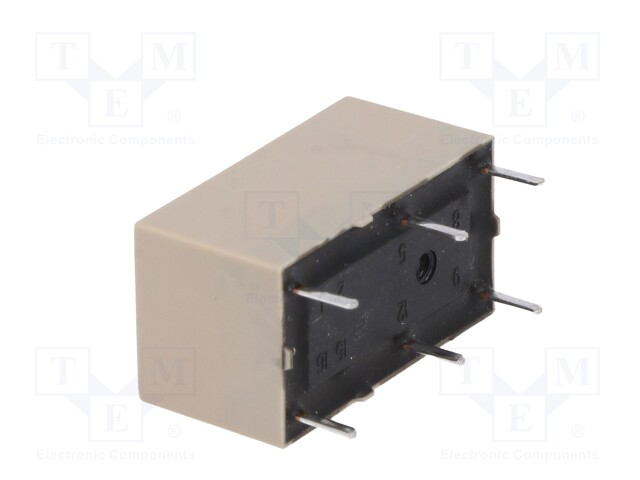

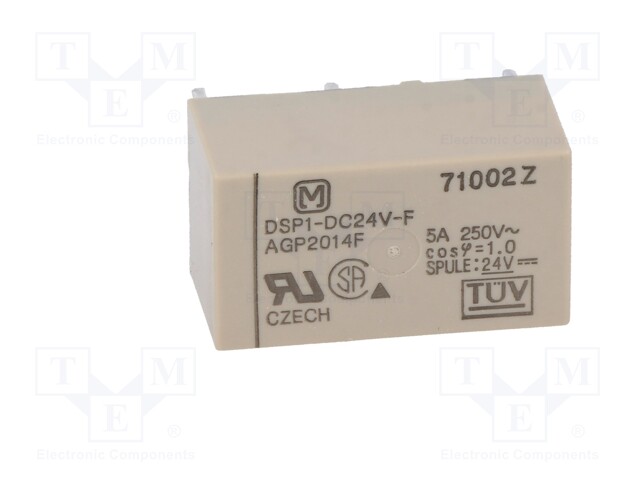

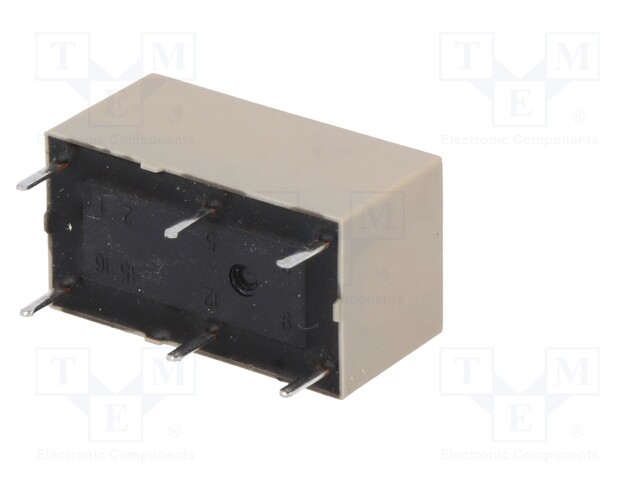

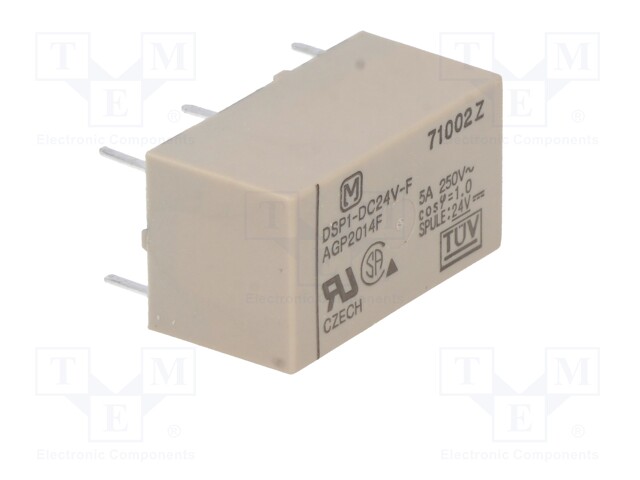

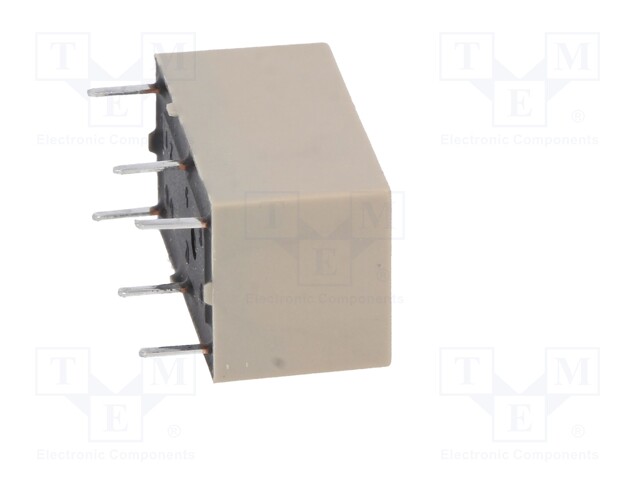

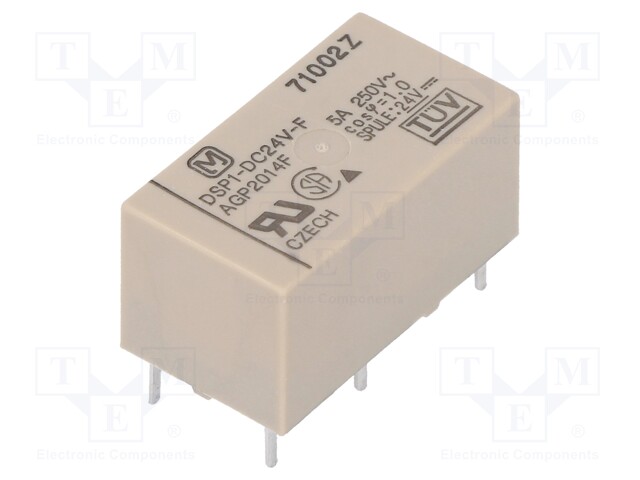

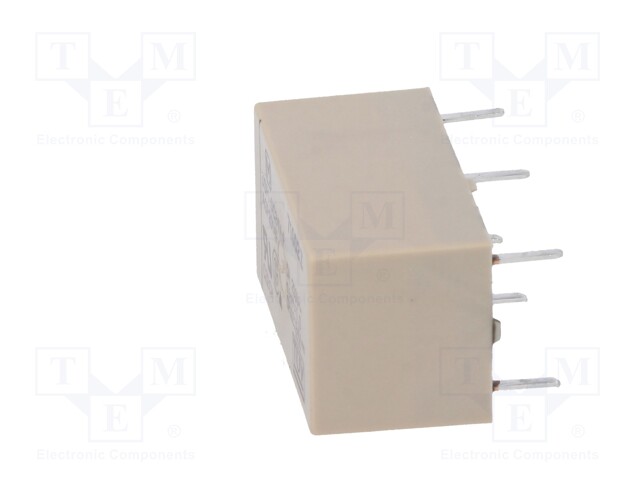

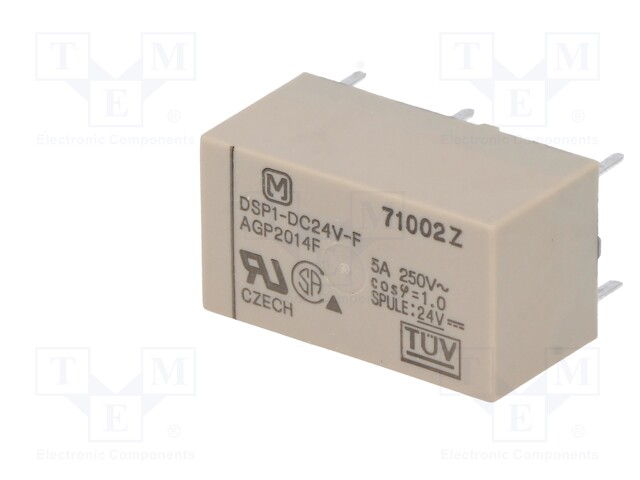

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 24VDC; 1.92kΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DSP1-DC24V-F
    Tootja: PANASONIC
    Tootja tootekood: DSP1-DC24V-F
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Coil current

    9,72 € 9,72 € (KM-TA) 9.72 EUR

    9,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 24VDC; 1.92kΩ

    Mounting PCB, socket
    Operating temperature -40...65°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 20.2x11x10.5mm
    Mechanical durability 50000000cycles
    Switched voltage ≤ 125V DC, ≤ 250V AC
    Coil resistance 1.92kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO + SPST-NC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 300mW
    Relay series DS-P
    Coil current 12.5mA
