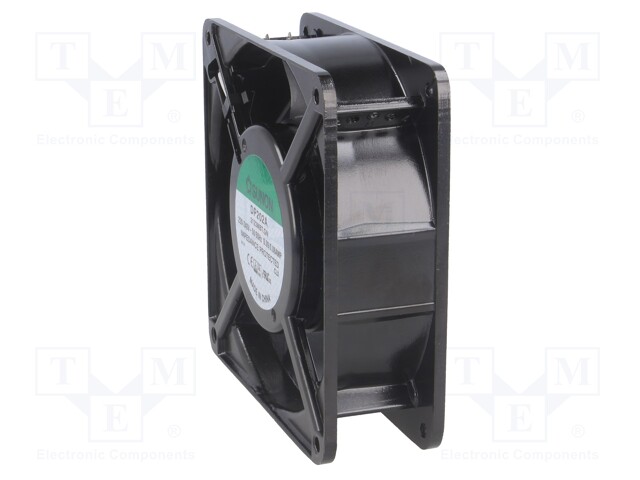

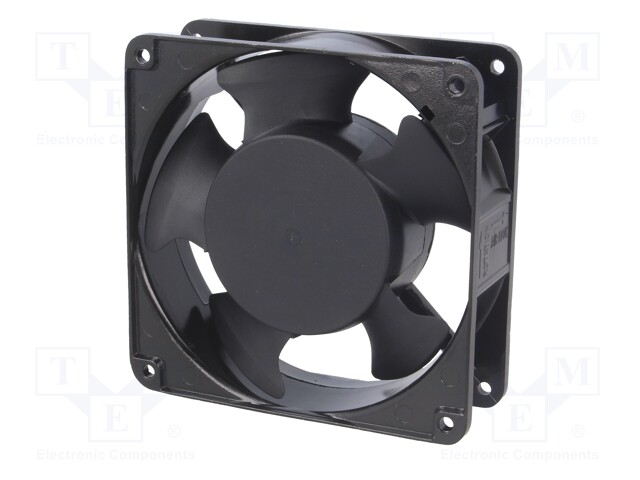

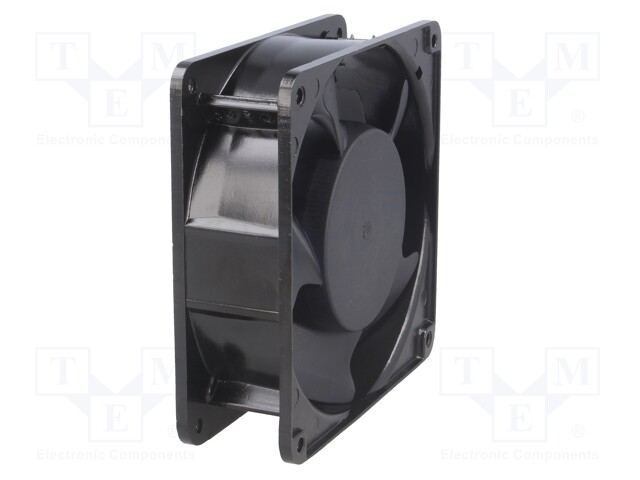

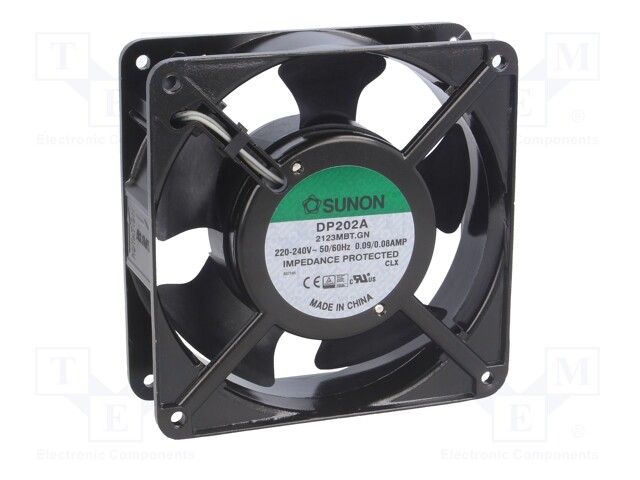

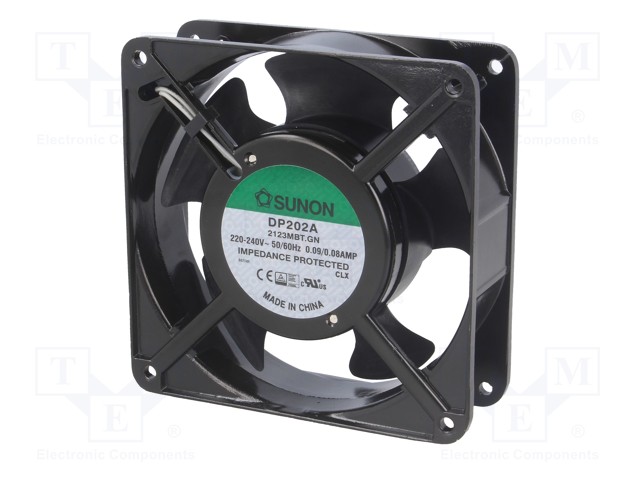

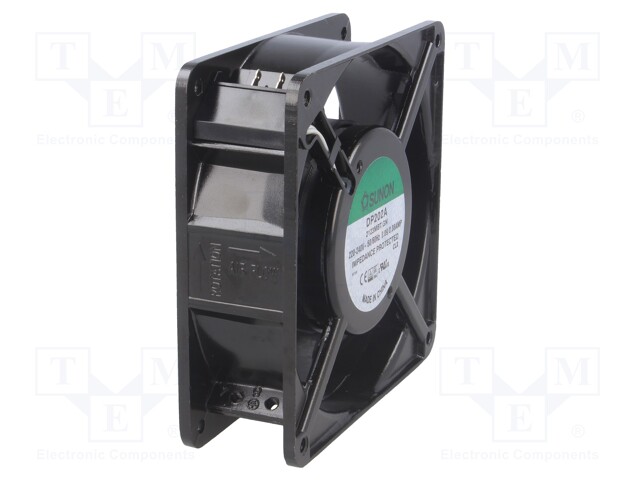

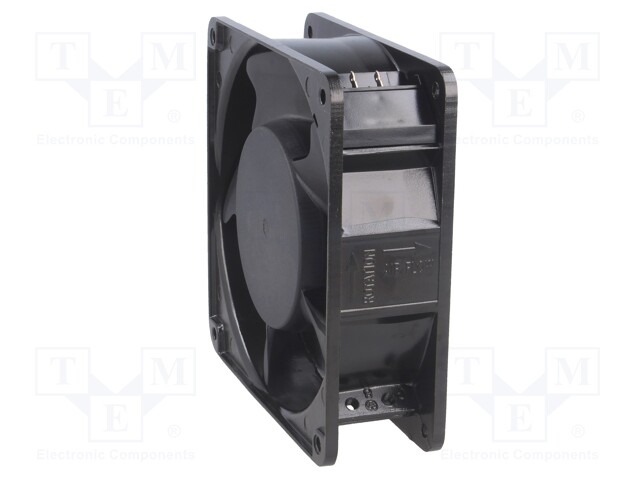

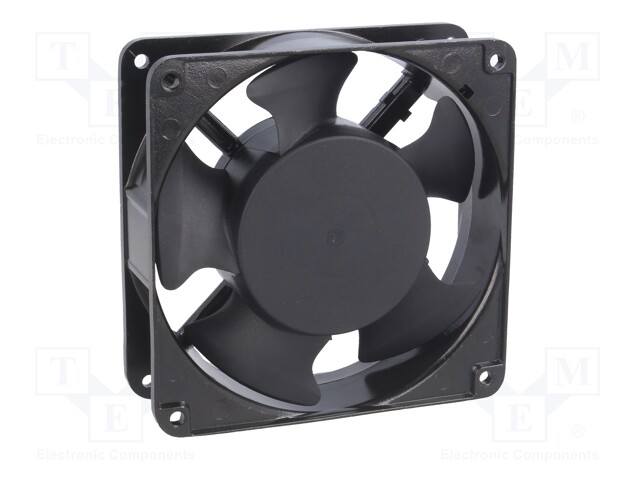

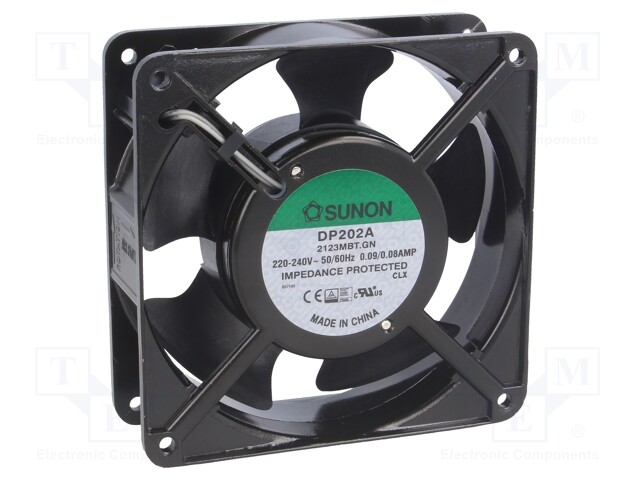

Fan: AC; axial; 230VAC; 120x120x38mm; 133(±10%)m3/h; 34dBA; 2400rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DP202A2123MBT.GN
    Tootja: SUNON
    Tootja tootekood: DP202A2123MBT.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: AC; axial; 230VAC; 120x120x38mm; 133(±10%)m3/h; 34dBA; 2400rpm

    Supply voltage 230V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Leads 2,8x0,3mm connectors
    Flammability rating UL94V-0
    Current rating 90mA
    Frequency 50Hz
    Power consumption 16W
    Rotational rate/speed 2400rpm
    Fan dimensions 120x120x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 3.55mm H<sub>2</sub>O
    Noise level 34dBA
