Relay: reed; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; max.200VAC; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DIP24-1B72-19D
    Tootja: MEDER
    Tootja tootekood: DIP24-1B72-19D
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NC; Ucoil: 24VDC; 1A; max.200VDC; max.200VAC; PCB

    Mounting PCB
    Case DIP14
    Operating temperature -20...70°C

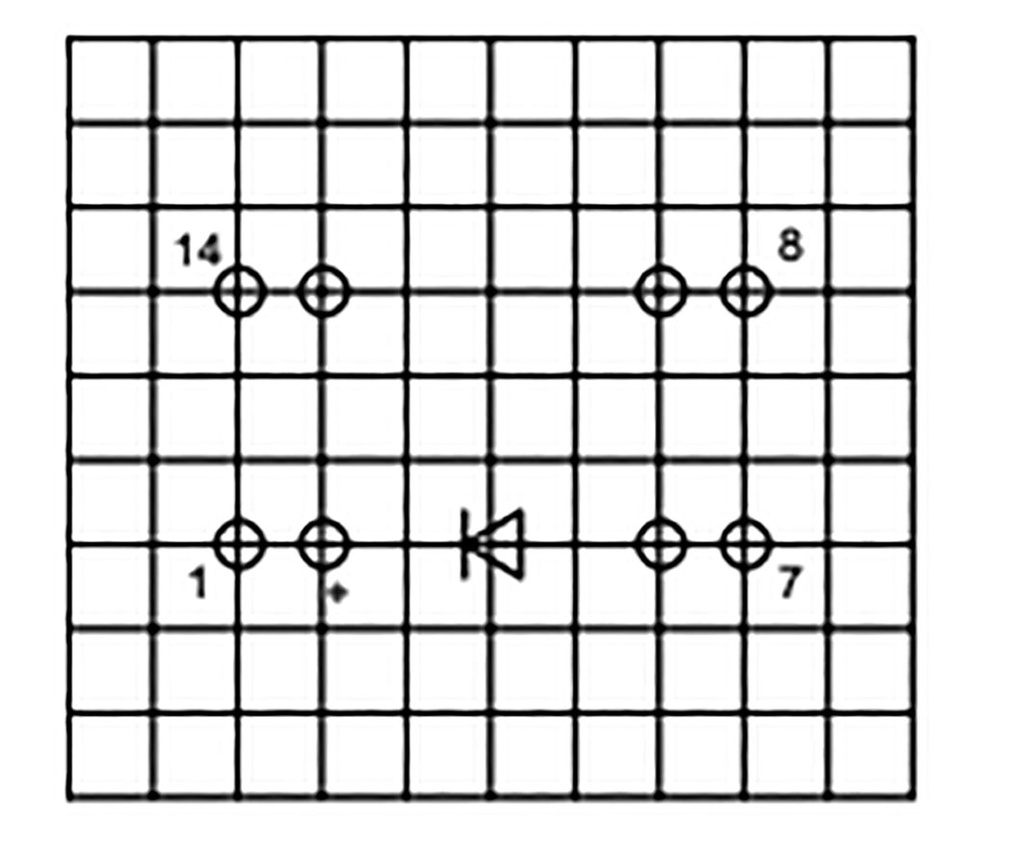

    Terminal pitch 2.54mm
    Soldering temperature 260°C

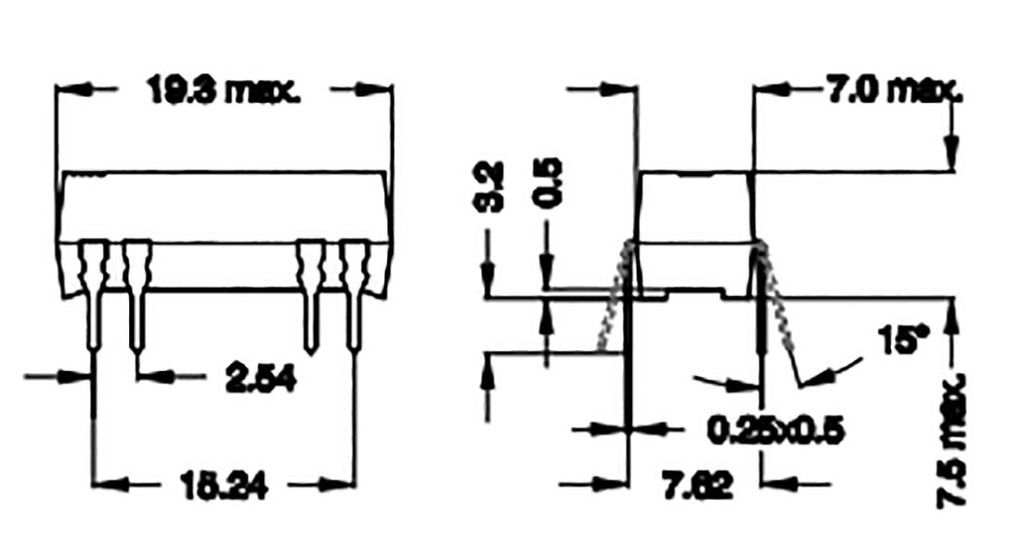

    Body dimensions 19.3x7.5x7mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 2kΩ
    Rated coil voltage 24V DC

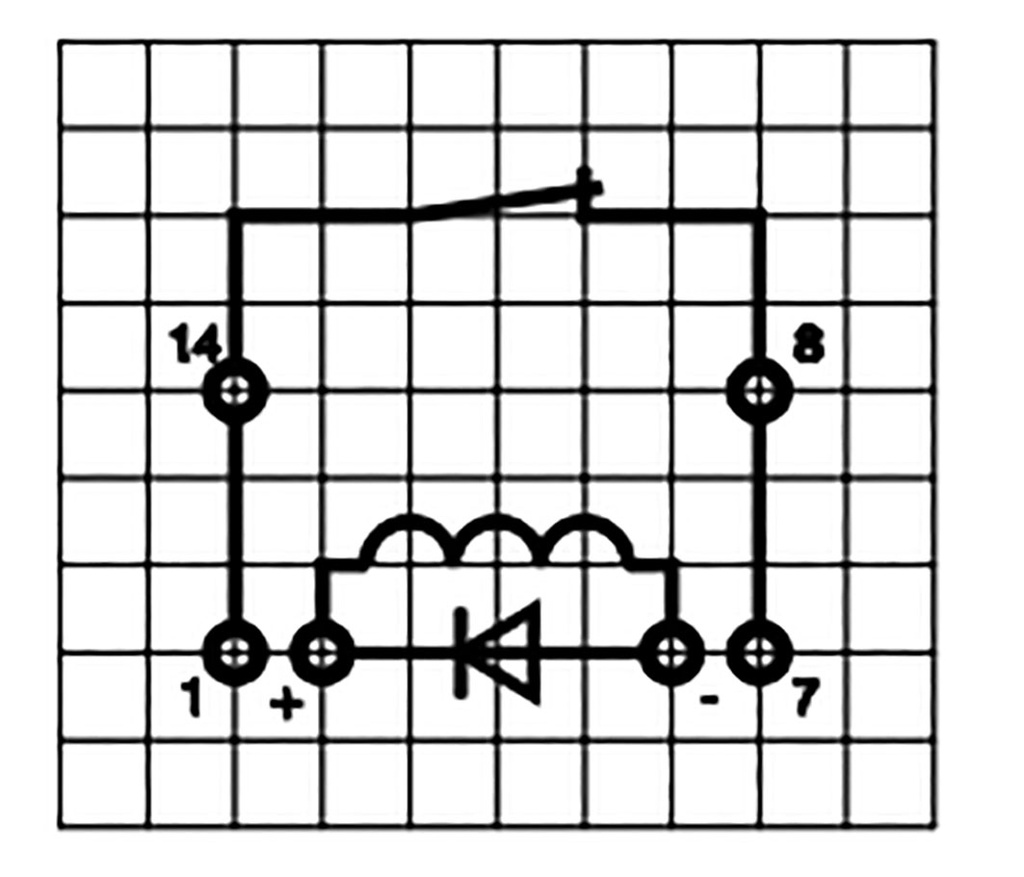

    Contacts configuration SPST-NC
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 30V DC
    Type of relay reed
    Coil voltage min. 16.8V DC
    Coil power consumption 290mW
    Relay series DIP
