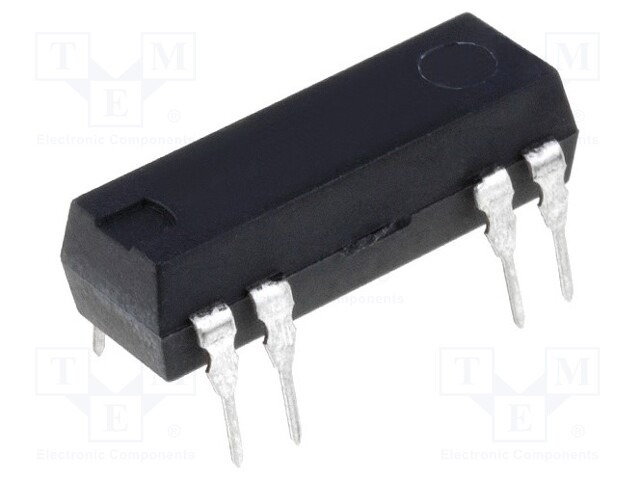

Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; max.200VAC

    Kordarv: 1.0
    Minimum quantity: 100.0
    Tootekood: DIP05-1A72-11L
    Tootja: MEDER
    Tootja tootekood: DIP05-1A72-11L
    • Operating temperature
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Relay series
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; max.200VAC

    Operating temperature -20...70°C
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Type of relay reed
    Coil power consumption 50mW
    Relay series DIP
    Coil current 10mA
