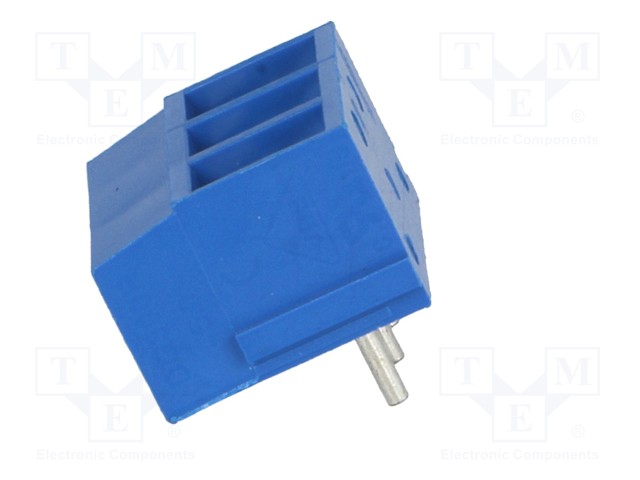

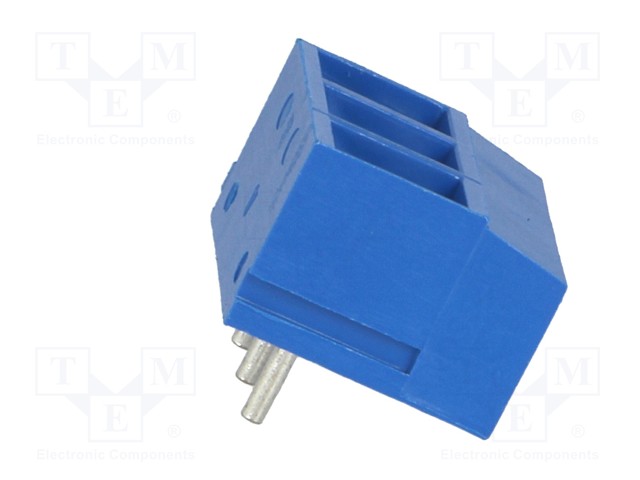

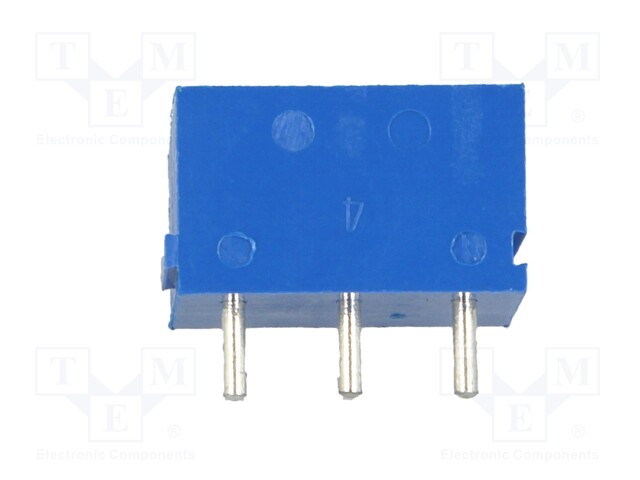

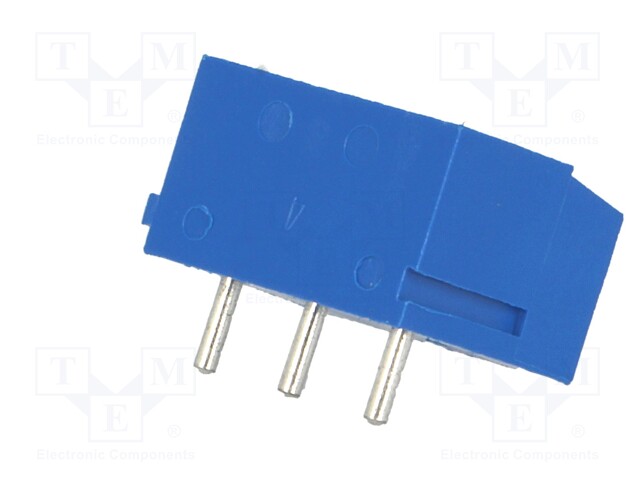

PCB terminal block; straight; 5mm; ways: 3; on PCBs; 2.5mm2; tinned

    Kordarv: 1.0
    Minimum quantity: 5.0
    Tootekood: DG300R-5.0-03P-12-00A(H)
    Tootja: DEGSON ELECTRONICS
    Tootja tootekood: DG300R-5.0-03P-12-00A(H)
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Connectors features
    • Depth

    0,79 € 0,79 € (KM-TA) 0.79 EUR

    0,79 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele PCB terminal block; straight; 5mm; ways: 3; on PCBs; 2.5mm2; tinned

    Operating temperature -30...120°C
    Contacts pitch 5mm
    Electrical mounting screw terminal, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour blue
    Contact plating tinned
    Type of connector PCB terminal block
    Contact material brass
    Body material PBT
    Flammability rating UL94V-0
    Length 15mm
    Height 9mm
    Current rating 24A
    Number of ways 3
    Type of pin configuration 1x3
    Rated voltage 300V
    Connector variant with wire protector
    Conform to the norm CE, UL, VDE
    Spatial orientation straight
    Connectors features assembling possibility
    Depth 12.6mm
