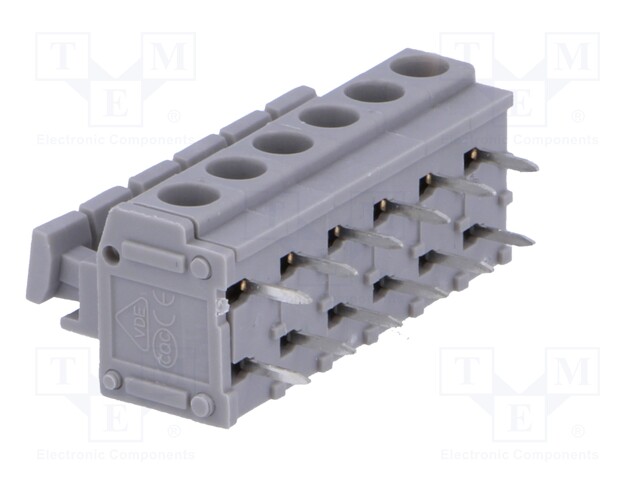

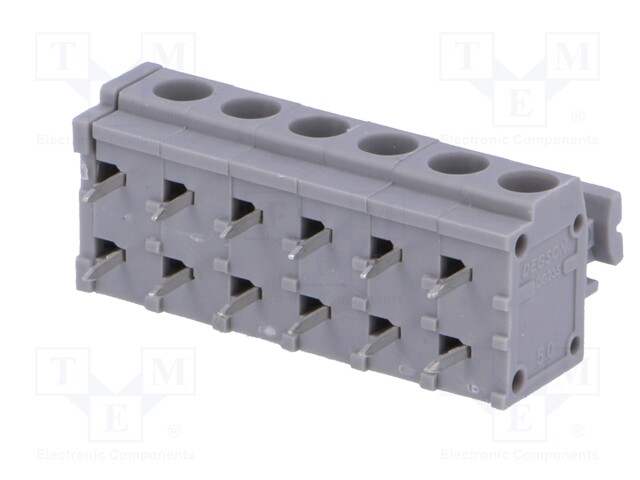

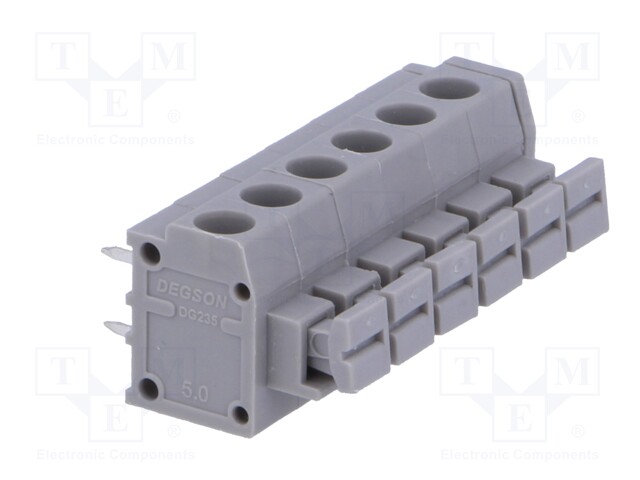

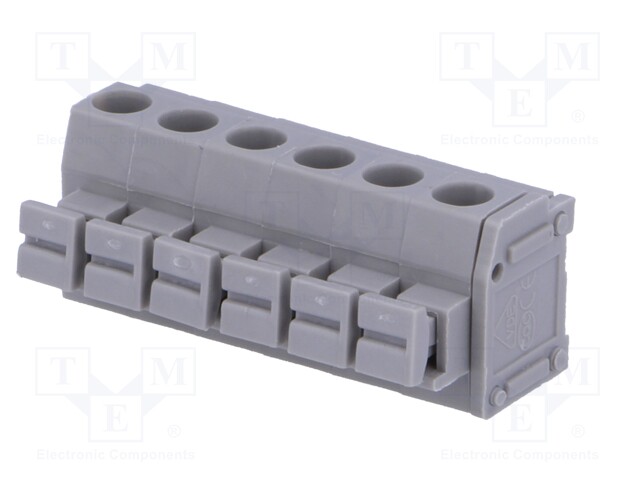

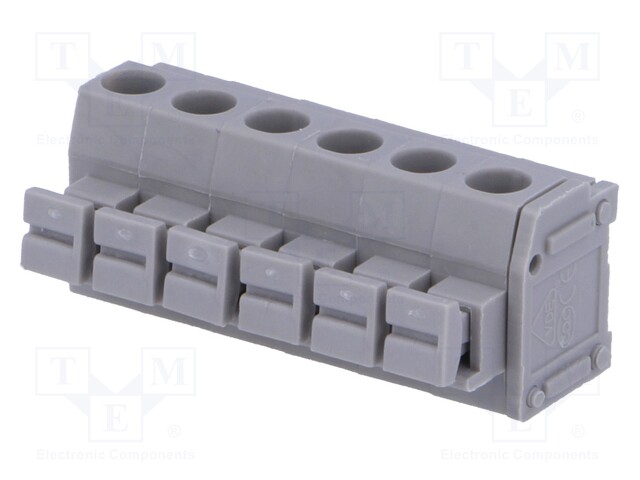

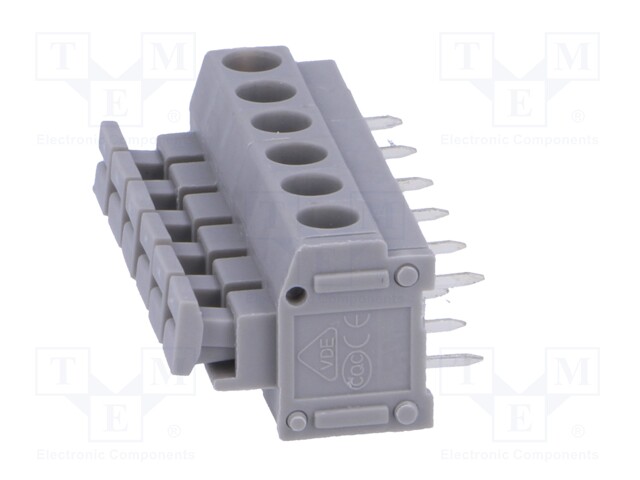

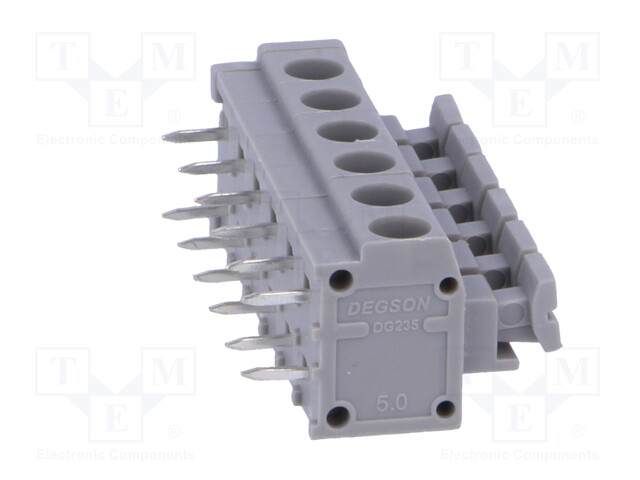

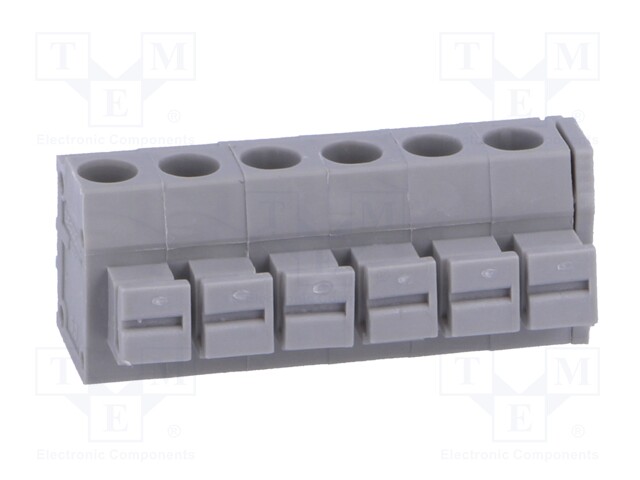

PCB terminal block; angled 90°; 5mm; ways: 6; on PCBs; 1.5mm2; 8A

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: DG235-5.0-06P-11-00A(H)
    Tootja: DEGSON ELECTRONICS
    Tootja tootekood: DG235-5.0-06P-11-00A(H)
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Connector variant
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Connectors features
    • Depth

    1,38 € 1,38 € (KM-TA) 1.3800000000000001 EUR

    1,38 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele PCB terminal block; angled 90°; 5mm; ways: 6; on PCBs; 1.5mm2; 8A

    Operating temperature -40...105°C
    Contacts pitch 5mm
    Electrical mounting spring clamp, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour grey
    Contact plating tinned
    Type of connector PCB terminal block
    Contact material phosphor bronze
    Body material NYLON 66
    Flammability rating UL94V-0
    Length 30mm
    Height 15.5mm
    Current rating 8A
    Number of ways 6
    Type of pin configuration 1x6
    Rated voltage 300V
    Connector variant with push button
    Conform to the norm CE, UL, VDE
    Spatial orientation angled 90°
    Connectors features assembling possibility
    Depth 12.5mm
