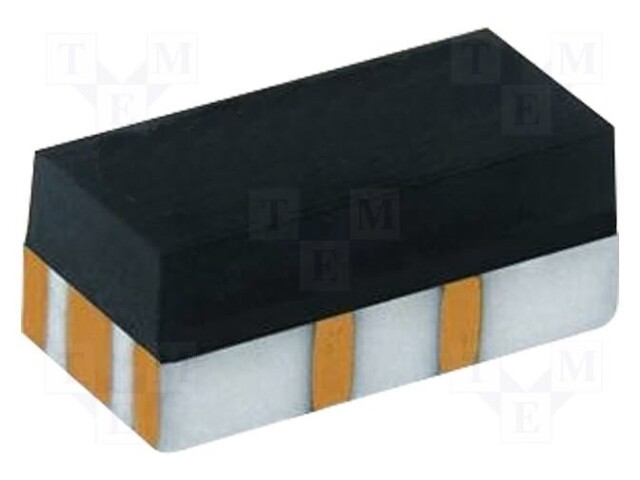

Relay: reed; SPST-NC; Ucoil: 5VDC; 0.5A; max.170VDC; max.170VAC; 10W
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
CRR05-1B
Tootja: MEDER
Tootja tootekood: CRR05-1B
Product downloads
Spetsifikatsioon tootele Relay: reed; SPST-NC; Ucoil: 5VDC; 0.5A; max.170VDC; max.170VAC; 10W
Mounting | SMD |
Operating temperature | -40...125°C |

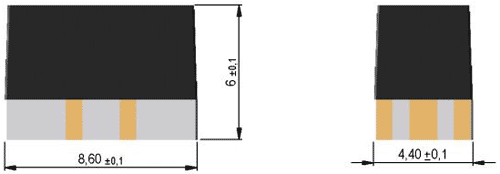

Body dimensions | 4.4x8.6x6mm |
Switched voltage | ≤ 170V AC, ≤ 170V DC |
Switching capacity | 10W |
Coil resistance | 150Ω |
Rated coil voltage | 5V DC |
Contacts configuration | SPST-NC |
Contact current max. | 500mA |
Type of relay | reed |
Coil power consumption | 167mW |
Relay series | CRR |
Operate time | 600µs |
