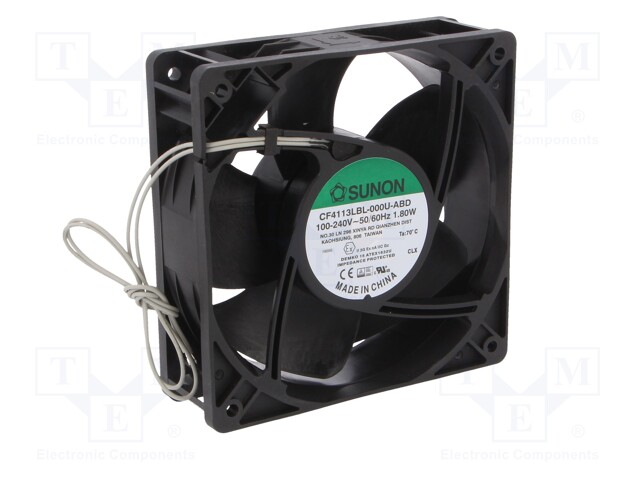

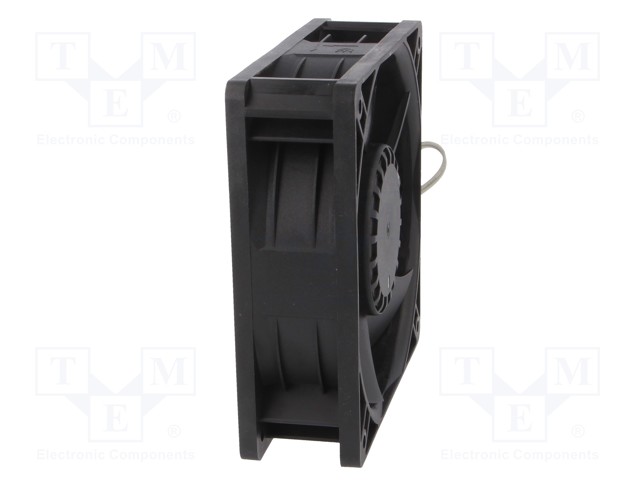

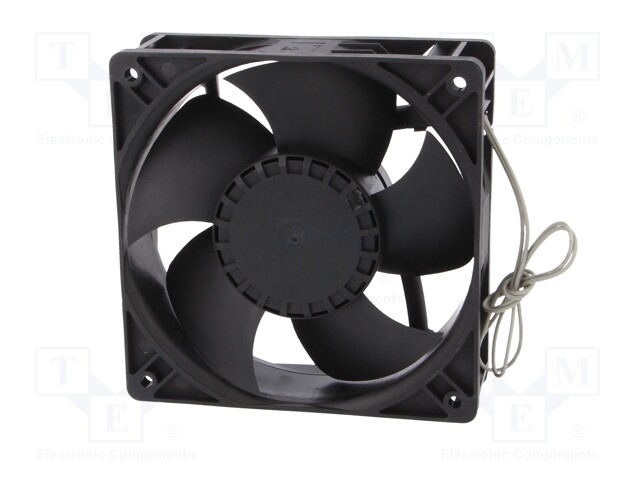

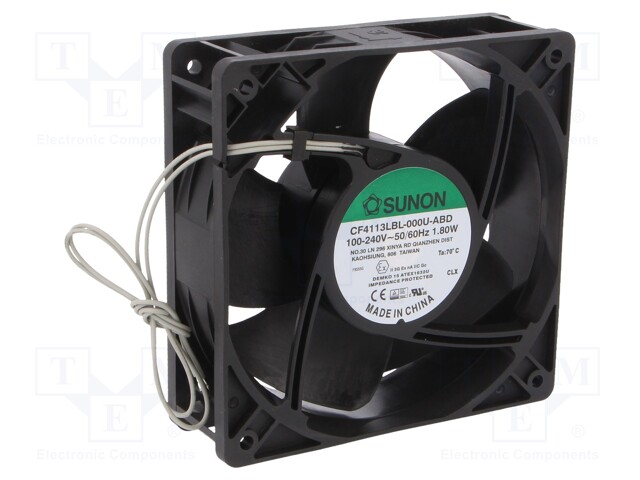

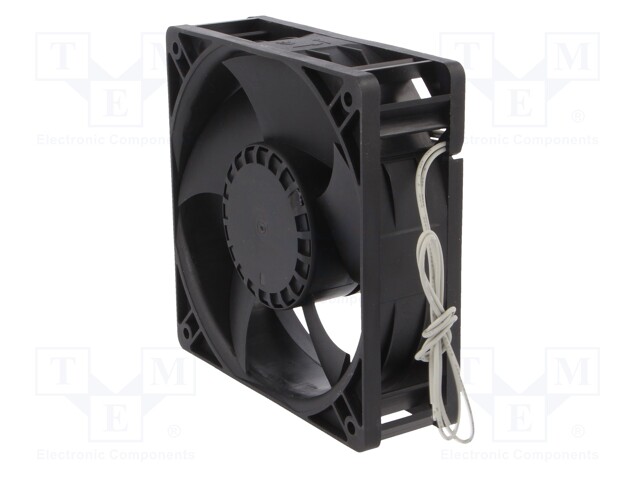

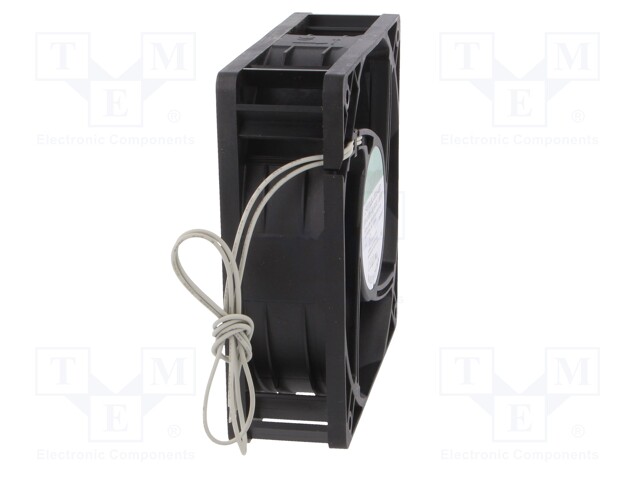

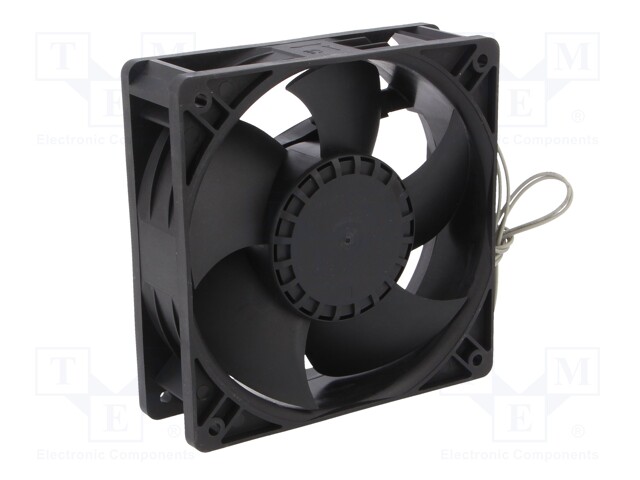

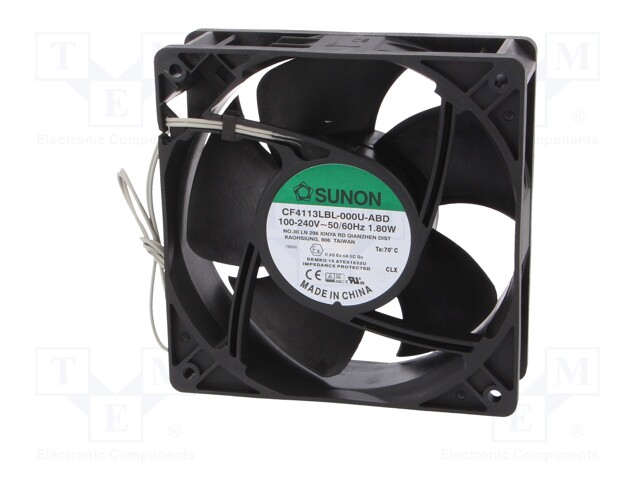

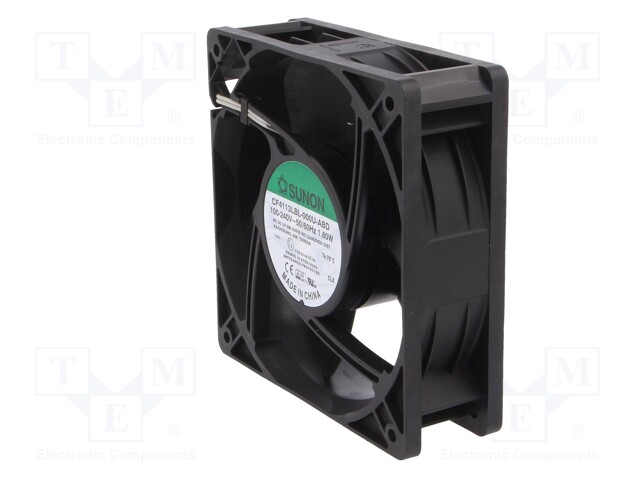

Fan: EC; axial; 230VAC; 120x120x38mm; 109.25m3/h; 31.4dBA; 2000rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CF4113LBL-000U-ABD
    Tootja: SUNON
    Tootja tootekood: CF4113LBL-000U-ABD
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • IP rating
    • Enclosure material
    • Leads
    • Series
    • Flammability rating
    • Cable length
    • Current rating
    • Frequency
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm

    55,86 € 55,86 € (KM-TA) 55.86 EUR

    55,86 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: EC; axial; 230VAC; 120x120x38mm; 109.25m3/h; 31.4dBA; 2000rpm

    Supply voltage 230V AC
    Operating voltage 90...265V
    Operating temperature -25...70°C
    IP rating IP55
    Enclosure material thermoplastic
    Leads 2 leads
    Series ECO
    Flammability rating UL94V-0
    Cable length 330mm
    Current rating 37mA
    Frequency 50...60Hz
    Fan efficiency 109.25m<sup>3</sup>/h
    Power consumption 1.8W
    Rotational rate/speed 2000rpm
    Fan motor brushless EC motor
    Fan dimensions 120x120x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan EC
    Static pressure 4.32mm H<sub>2</sub>O
    Noise level 31.4dBA
    Conform to the norm ATEX Ex, CE, UL
