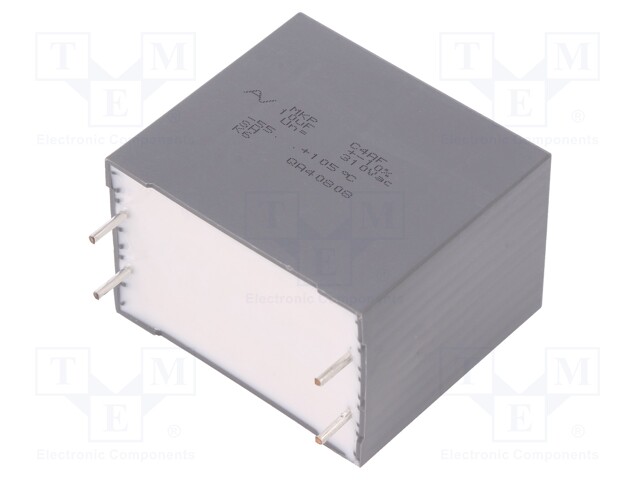

Capacitor: polypropylene; 10uF; ESR: 2.3mΩ; C4AF; THT; ±10%; 310VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: C4AF9BW5100A3JK
    Tootja: KEMET
    Tootja tootekood: C4AF9BW5100A3JK
    • Mounting
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    7,68 € 7,68 € (KM-TA) 7.68 EUR

    7,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 10uF; ESR: 2.3mΩ; C4AF; THT; ±10%; 310VDC

    Mounting THT
    Max. operating current 15.5A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 320A
    Terminal pitch 37.5x10.2mm
    Body dimensions 42x37x28mm
    Max. operating voltage 310V DC
    Capacitance 10µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 2.3mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 32V/μs
