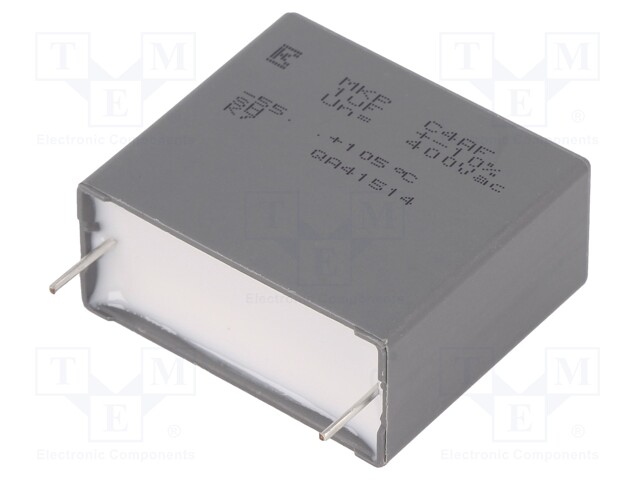

Capacitor: polypropylene; 1uF; ESR: 7.9mΩ; C4AF; THT; ±10%; 141V/μs

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: C4AF3BU4100A1YK
    Tootja: KEMET
    Tootja tootekood: C4AF3BU4100A1YK
    • Mounting
    • Max. operating current
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Conform to the norm
    • ESR value
    • Climate class
    • Climate class
    • Pulse resistance

    4,29 € 4,29 € (KM-TA) 4.29 EUR

    4,29 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polypropylene; 1uF; ESR: 7.9mΩ; C4AF; THT; ±10%; 141V/μs

    Mounting THT
    Max. operating current 6.2A
    Operating temperature -55...105°C
    Tolerance ±10%
    Max. forward impulse current 141A
    Terminal pitch 27.5mm
    Body dimensions 31.5x28x14mm
    Max. operating voltage 400V AC
    Capacitance 1µF
    Type of capacitor polypropylene
    Capacitor application filtering
    Conform to the norm AEC-Q200
    ESR value 7.9mΩ
    Climate class 55/105/56, IEC60068-1
    Pulse resistance 141V/μs
