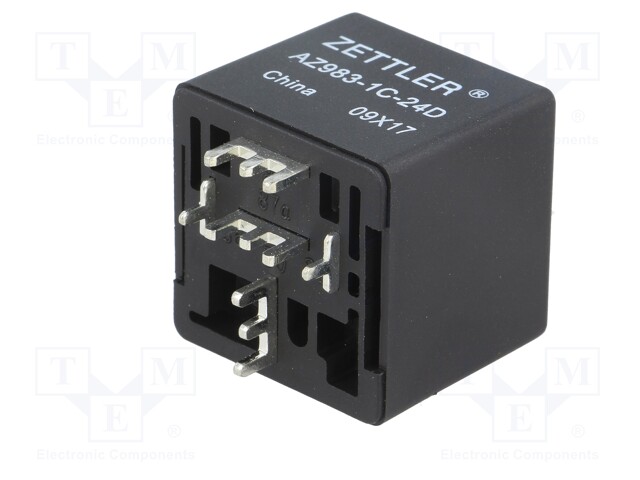

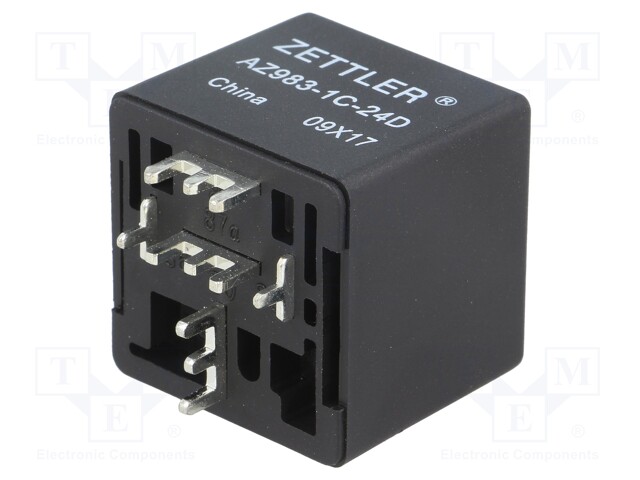

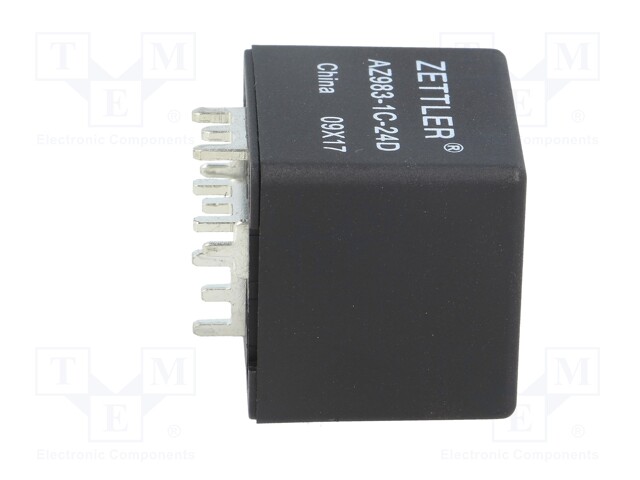

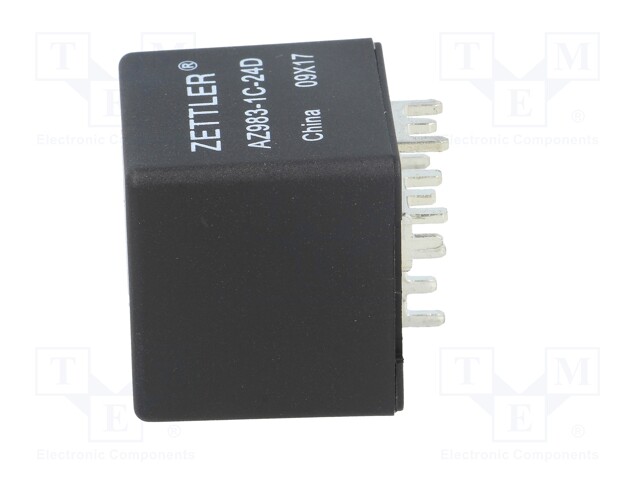

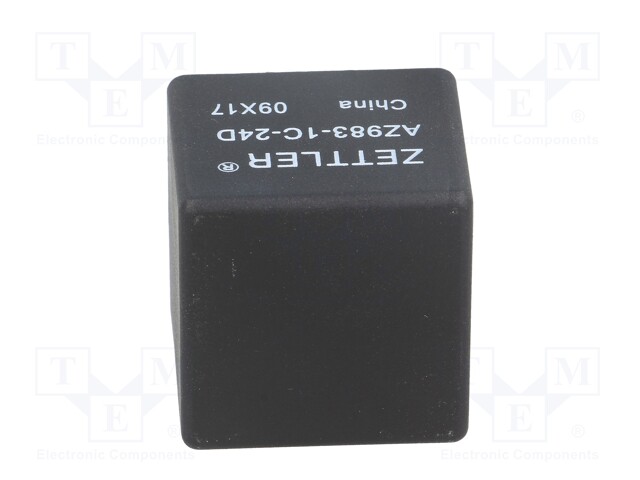

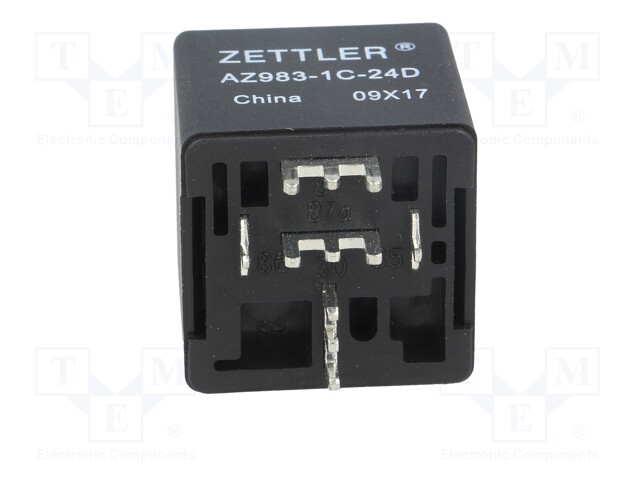

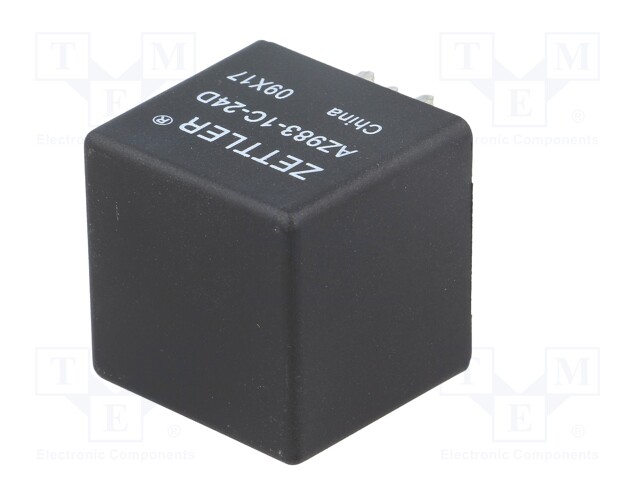

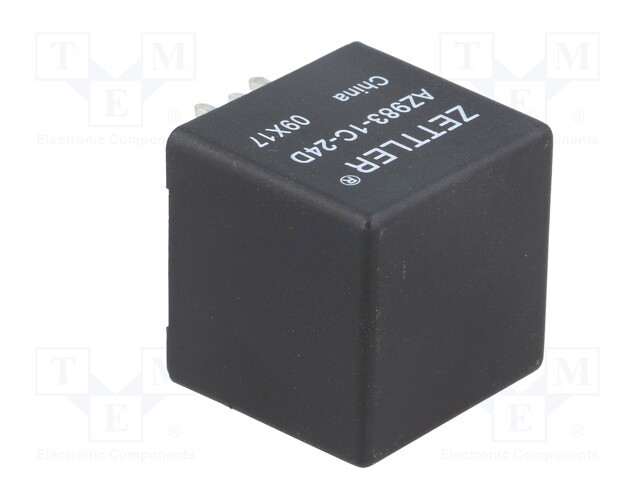

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 60A; automotive; 760mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ983-1C-24D
    Tootja: ZETTLER
    Tootja tootekood: AZ983-1C-24D
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    4,98 € 4,98 € (KM-TA) 4.98 EUR

    4,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 60A; automotive; 760mW

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 29x29x26.5mm
    Switched voltage ≤ 28V DC
    Coil resistance 320Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 60A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 60A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 760mW
    Relay series AZ983
