Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 680mW

    Kordarv: 1000.0
    Minimum quantity: 1000.0
    Tootekood: AZ9731-1C-12DC3
    Tootja: ZETTLER
    Tootja tootekood: AZ9731-1C-12DC3
    • Mounting
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 680mW

    Mounting on panel, socket
    Operating temperature -40...125°C

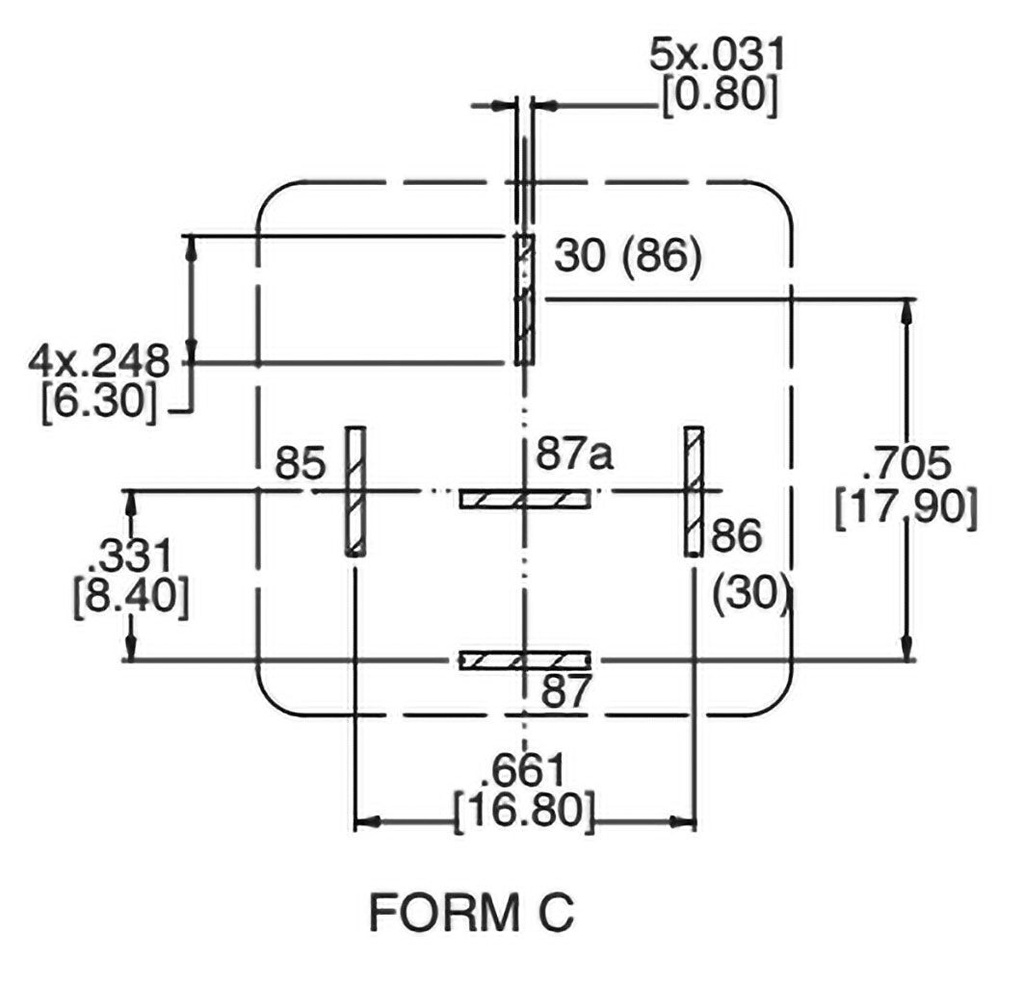

    Leads 6,3x0,8mm connectors
    Contact material AgSnO<sub>2</sub>
    Body dimensions 36x26.5x26.5mm
    Switched voltage ≤ 28V DC
    Coil resistance 90Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 40A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 680mW
    Relay series AZ9731
