Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 6A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AZ963-1C-12DE
    Tootja: ZETTLER
    Tootja tootekood: AZ963-1C-12DE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    3,27 € 3,27 € (KM-TA) 3.27 EUR

    3,27 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 6A/250VAC; 6A/30VDC; 6A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 7.62mm

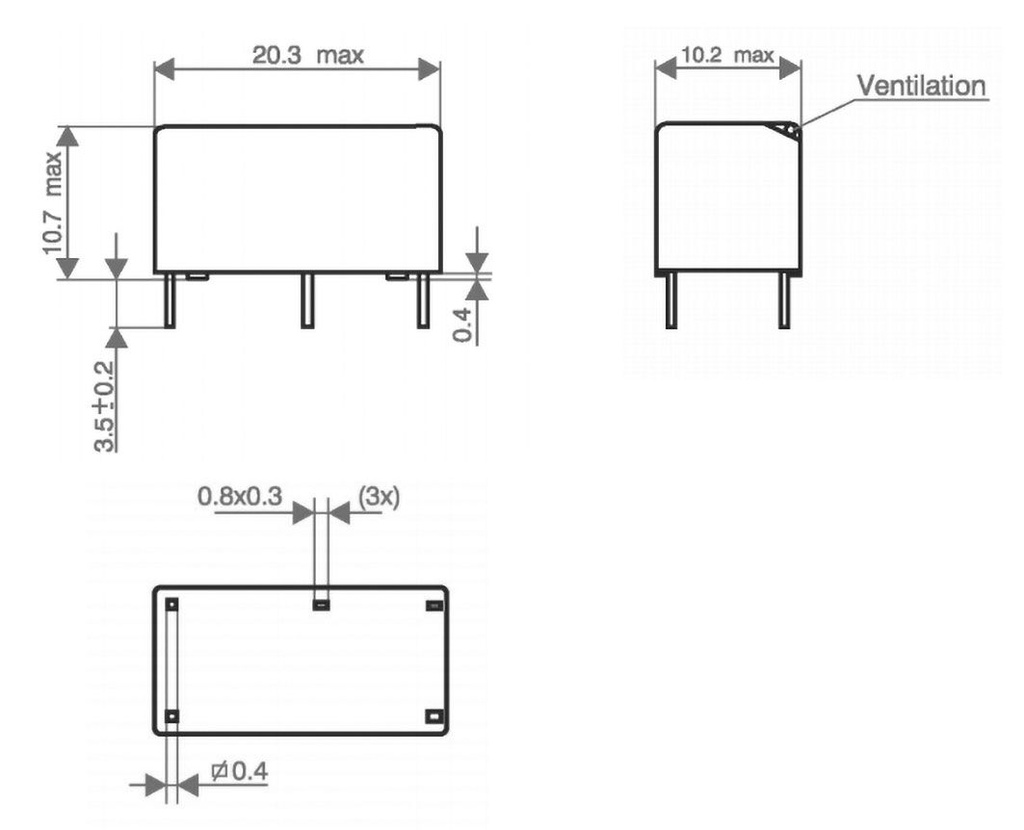

    Body dimensions 20.3x10.2x10.7mm
    Switched voltage ≤ 220V DC, ≤ 380V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 113mW
    Relay series AZ963
