Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A/125VAC; 1A/30VDC; 1A

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: AZ952-1C-12DSE
    Tootja: ZETTLER
    Tootja tootekood: AZ952-1C-12DSE
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    1,33 € 1,33 € (KM-TA) 1.33 EUR

    1,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 1A/125VAC; 1A/30VDC; 1A

    Mounting PCB
    Operating temperature -25...70°C
    Contact material Ag/Au
    Terminal pitch 2.54mm

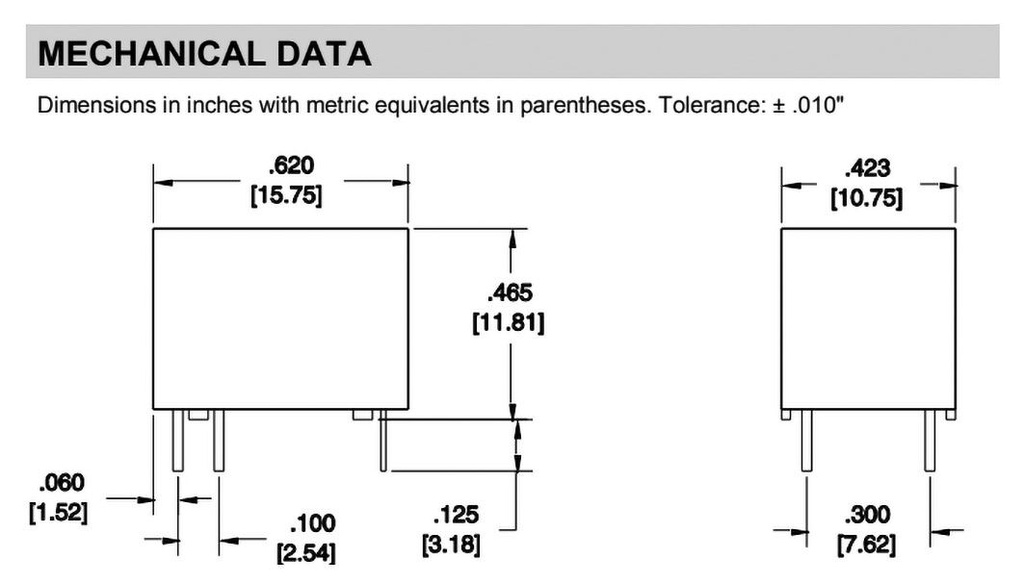

    Body dimensions 15.75x10.75x11.81mm
    Switched voltage ≤ 60V DC, ≤ 220V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    AC contacts rating @R 1A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Relay series AZ952
