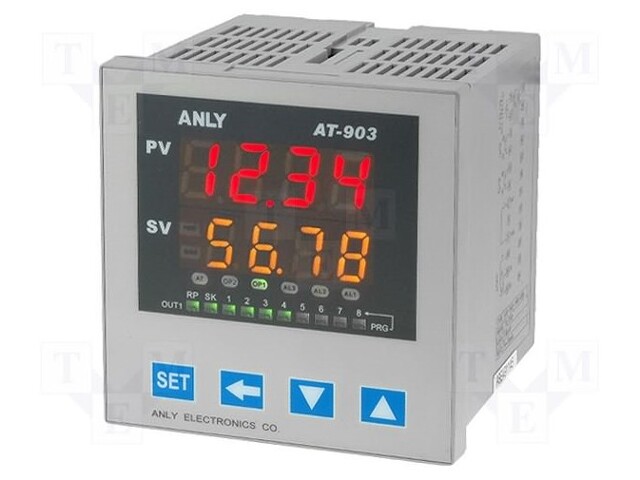

Module: regulator; temperature; SPST-NO; OUT 2: 4÷20mA; SPST-NO

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: AT903-614-1000
    Tootja: ANLY ELECTRONICS
    Tootja tootekood: AT903-614-1000
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Additional functions
    • Kind of input 1
    • Controlled parameter
    • Kind of output 1
    • The programming method
    • Kind of output 2
    • Kind of output 3
    • Input 1 properties
    • Display height 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Regulation for output 1
    • Display 2 height

    100,77 € 100,77 € (KM-TA) 100.77 EUR

    100,77 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Module: regulator; temperature; SPST-NO; OUT 2: 4÷20mA; SPST-NO

    Mounting on panel
    Supply voltage 90...260V AC
    Operating temperature -10...50°C
    IP rating IP20
    Type of module regulator
    Mounting hole diameter 91x91mm
    Body dimensions 96x96x83mm
    Kind of display used 2x LED
    Additional functions heating or cooling control, led bar, LED status indicator, non-volatile EEPROM memory, scroll menu
    Kind of input 1 0...10V DC
    Controlled parameter temperature
    Kind of output 1 SPST-NO
    The programming method foil keypad
    Kind of output 2 4...20mA
    Kind of output 3 SPST-NO
    Input 1 properties analogue voltage
    Display height 1 14mm
    Regulation for output 1 AUTOTUNING, DEAD BAND, ON-OFF, P, PI, PID
    Display 2 height 13mm
