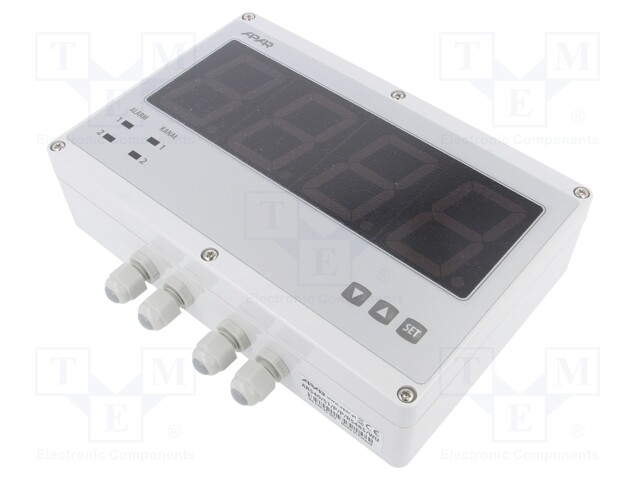

Module: regulator; pressure,speed,temperature; SPST-NO; 0/2÷10V
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
AR540/S2/P/P/RS485/WU
Tootja: APAR
Tootja tootekood: AR540/S2/P/P/RS485/WU
Product downloads
Spetsifikatsioon tootele Module: regulator; pressure,speed,temperature; SPST-NO; 0/2÷10V
| Mounting | for wall mounting |
| Supply voltage | 24V AC, 24V DC |
| Operating temperature | 0...50°C |
| IP rating | IP65 |
| Interface | RS485 |
| Type of module | regulator |
| Body dimensions | 222x146x55mm |
| Kind of display used | LED |
| Additional functions | signalling of detected errors with a messages on the display, signal digital filtering, sensors supply voltage 24V DC / 30mA, temperature compensation of thermocouple cold ends, universal input (selected from keypad) |
| Kind of input 1 | 0...10V DC, 0...20mA, 0...2500Ω, 0...60mV, 4...20mA, universal |
| Kind of temperature sensor | Ni100, Pt100, Pt1000, Pt500, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T |
| Controlled parameter | pressure, speed, temperature |
| Kind of output 1 | SPST-NO |
| The programming method | keypad |
| Kind of output 2 | SPST-NO |
| Kind of output 3 | 0/2...10V |
| Input 1 properties | analogue voltage, current analog, RTD |
| Display height 1 | 57mm |
