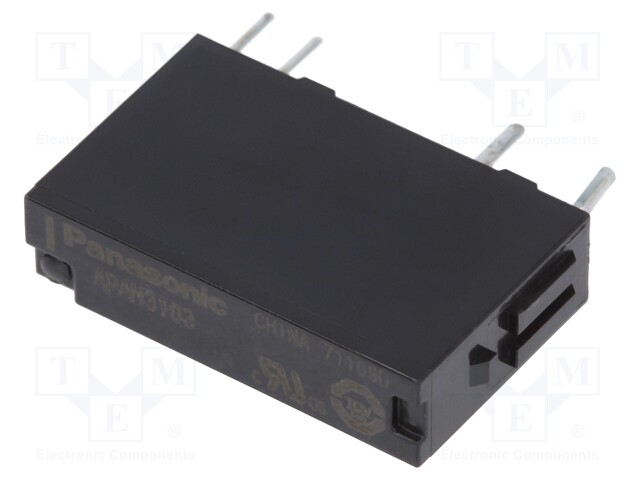

Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; 5A/250VAC; 5A/30VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
APAN3103
Tootja: PANASONIC
Tootja tootekood: APAN3103
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 3VDC; 5A/250VAC; 5A/30VDC
Mounting | PCB |
Operating temperature | -40...90°C |
Contact material | AgNi + Au |
Terminal pitch | 5.08mm |
Body dimensions | 20x5x12.8mm |
Mechanical durability | 20000000cycles |
Switched voltage | ≤ 110V DC, ≤ 250V AC |
Coil resistance | 82Ω |
Rated coil voltage | 3V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 5A / 30V DC |
Contact resistance | 30mΩ |
AC contacts rating @R | 5A / 250V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil voltage min. | 2.1V DC |
Coil power consumption | 110mW |
Relay series | PA-N |
Operate time | 10ms |
Release time | 5ms |
Coil current | 36.7mA |
