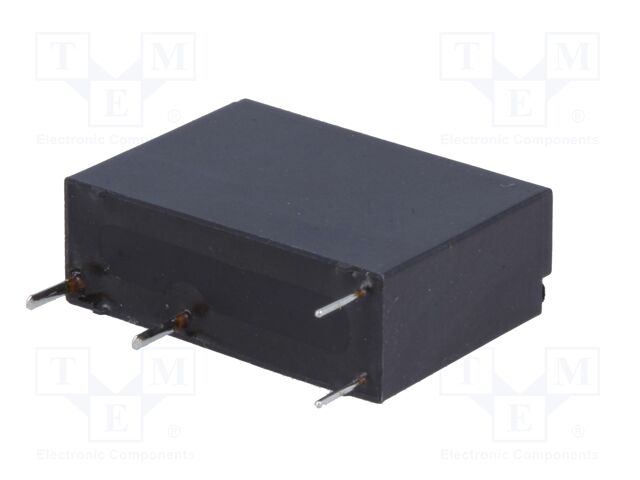

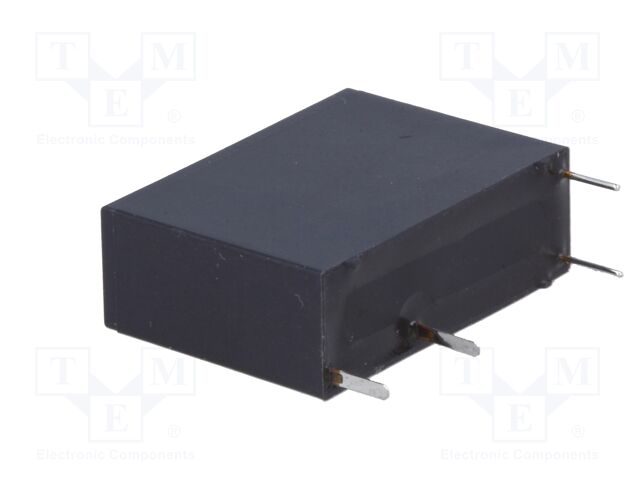

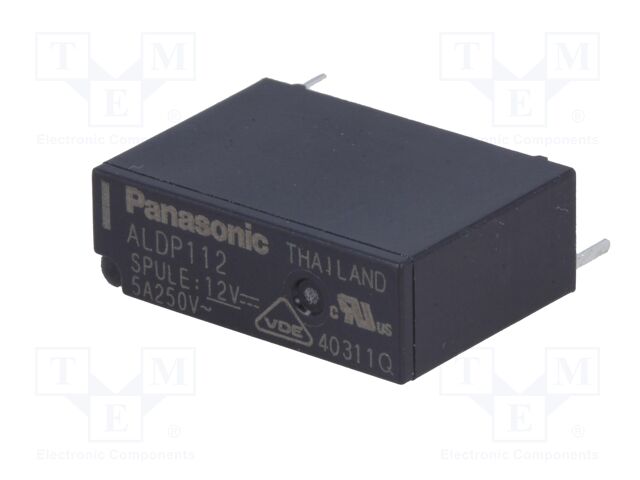

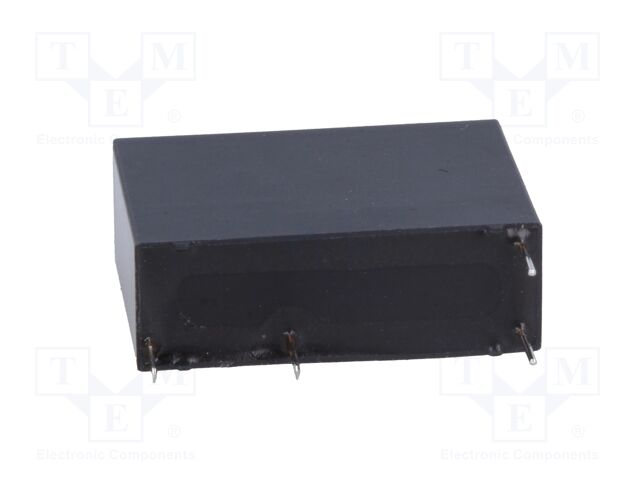

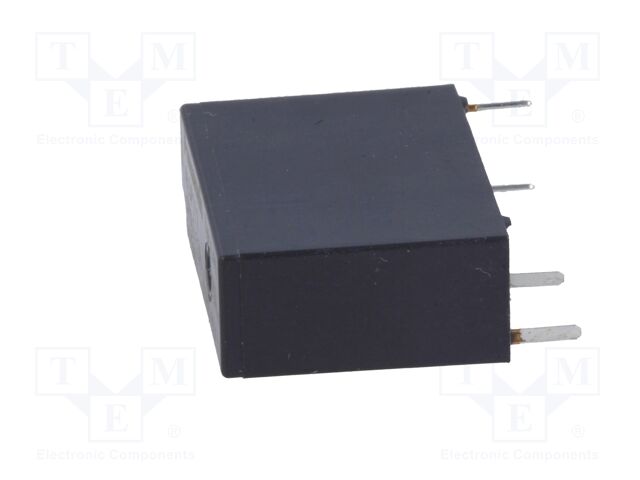

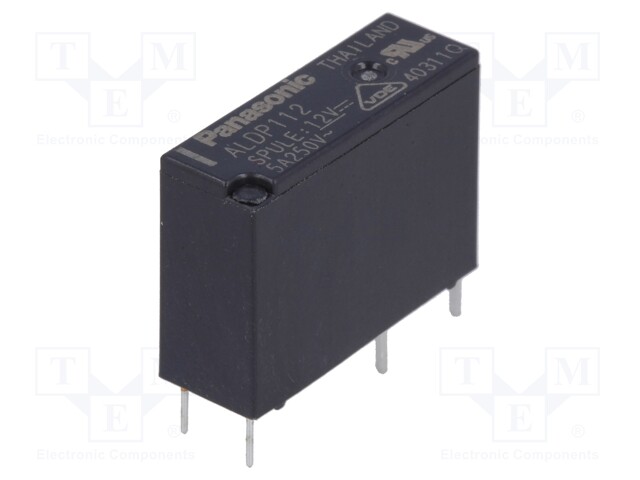

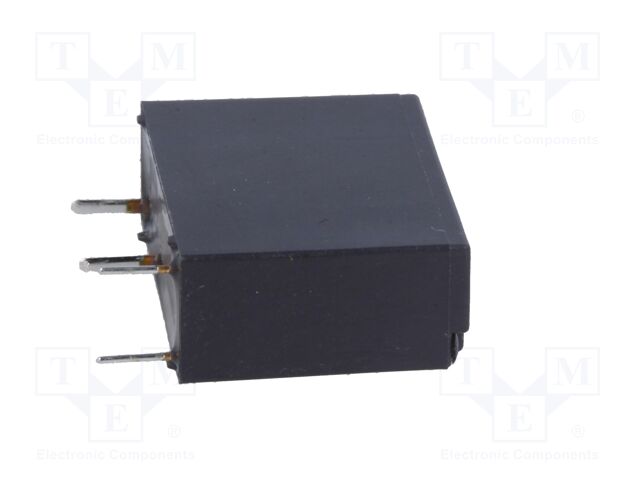

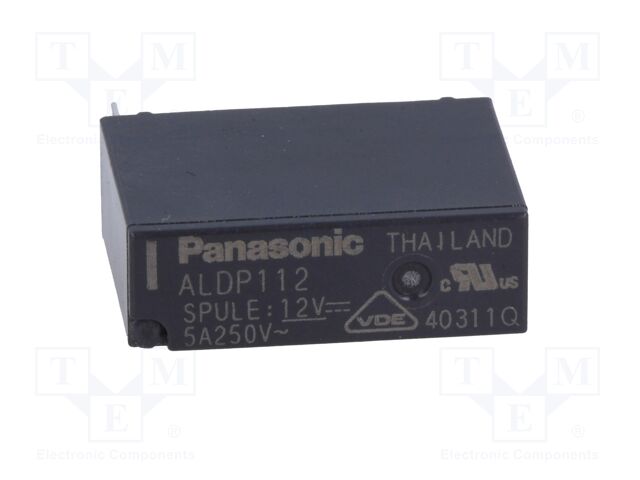

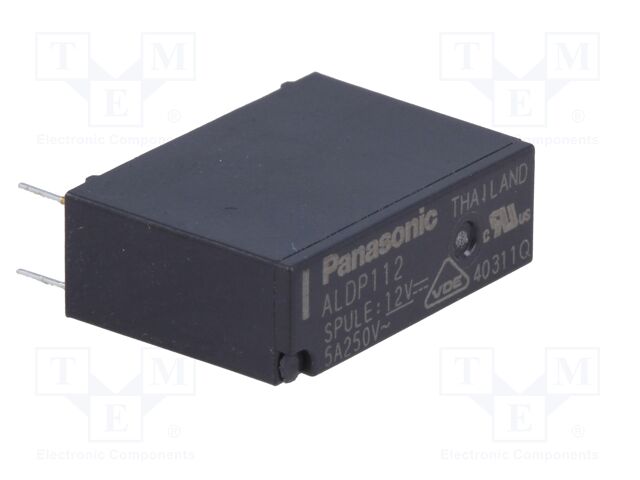

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/277VAC; 3A/30VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
ALDP112
Tootja: PANASONIC
Tootja tootekood: ALDP112
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/277VAC; 3A/30VDC
Mounting | PCB |
Operating temperature | -40...85°C |
Contact material | AgNi |
Body dimensions | 20.5x7.2x15.3mm |
Mechanical durability | 5000000cycles |
Switched voltage | ≤ 30V DC, ≤ 277V AC |
Coil resistance | 720Ω |
Rated coil voltage | 12V DC |
Contacts configuration | SPST-NO |
DC contacts rating @R | 3A / 30V DC |
AC contacts rating @R | 5A / 277V AC |
Contact current max. | 5A |
Relay variant | miniature |
Type of relay | electromagnetic |
Coil voltage min. | 9V DC |
Coil power consumption | 200mW |
Coil current | 16.7mA |
