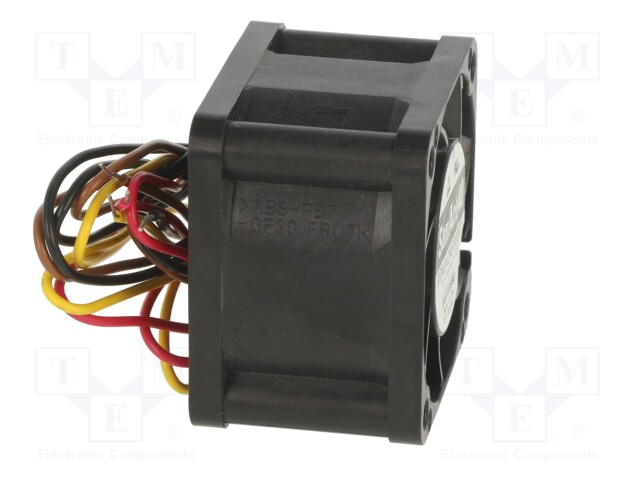

Axial Fan, 24 V, DC, 40 mm, 28 mm, 21.5 cu.ft/min, 0.61 m³/min

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9GA0424P3G001
    Tootja: SANYO DENKI
    Tootja tootekood: 9GA0424P3G001
    • Supply voltage
    • Operating voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Additional functions
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    20,51 € 20,51 € (KM-TA) 20.51 EUR

    20,51 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Axial Fan, 24 V, DC, 40 mm, 28 mm, 21.5 cu.ft/min, 0.61 m³/min

    Supply voltage 24V DC
    Operating voltage 21.6...26.4V DC
    Operating temperature -20...70°C
    Enclosure material plastic
    Leads 4 leads
    Flammability rating UL94V-0
    Current rating 220mA
    Fan efficiency 36.6m<sup>3</sup>/h
    Power consumption 5.28W
    Additional functions lock sensor, PWM
    Rotational rate/speed 16500rpm
    Fan dimensions 40x40x28mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 53dBA
