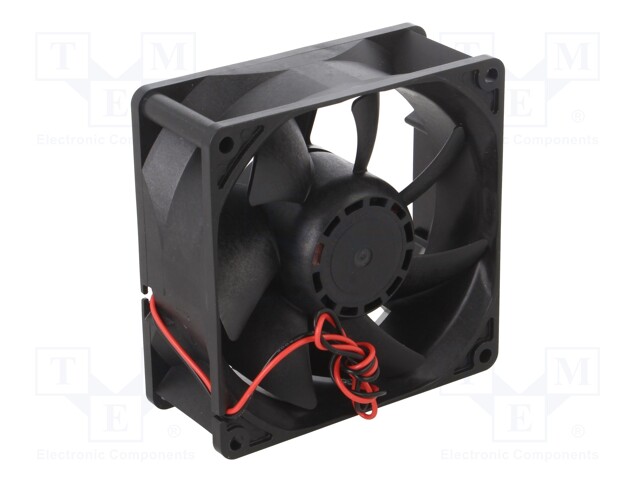

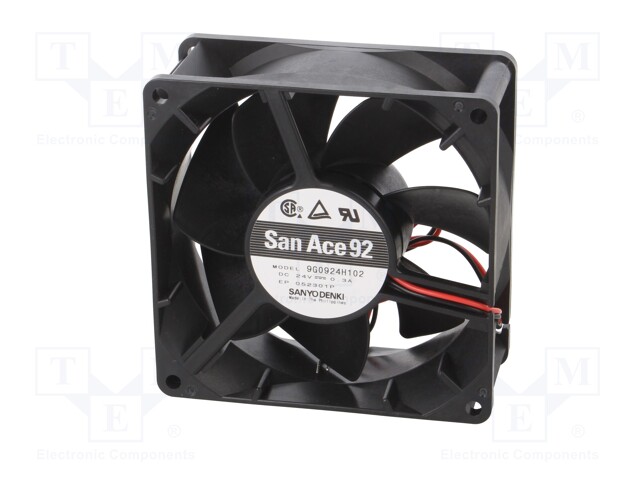

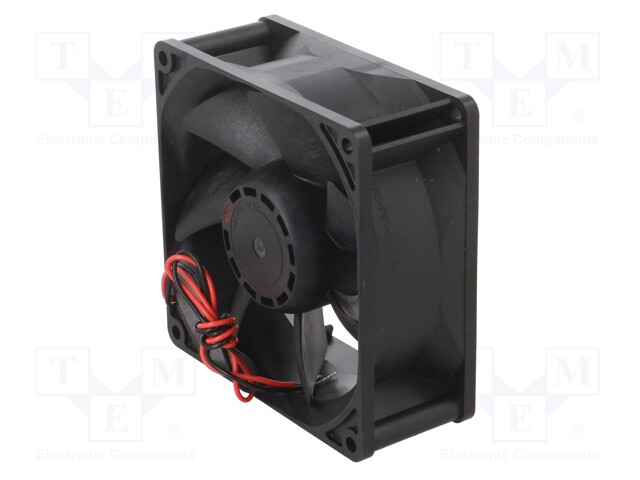

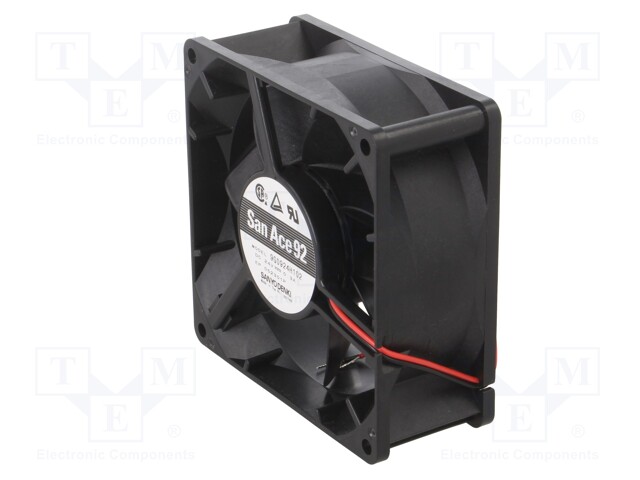

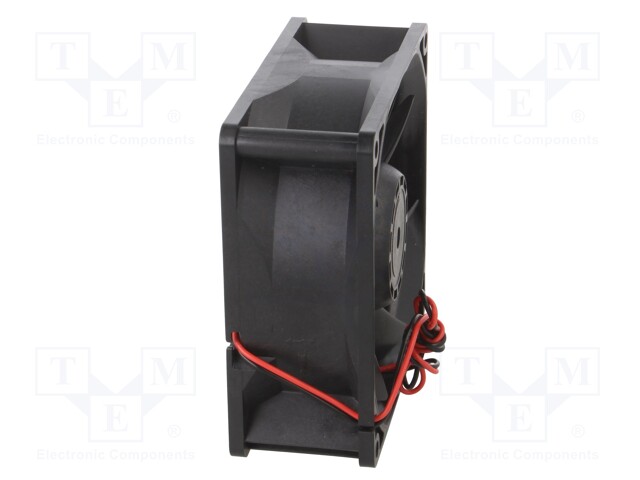

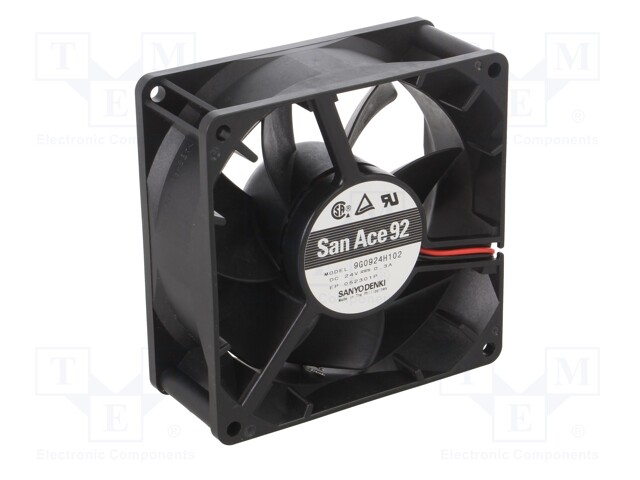

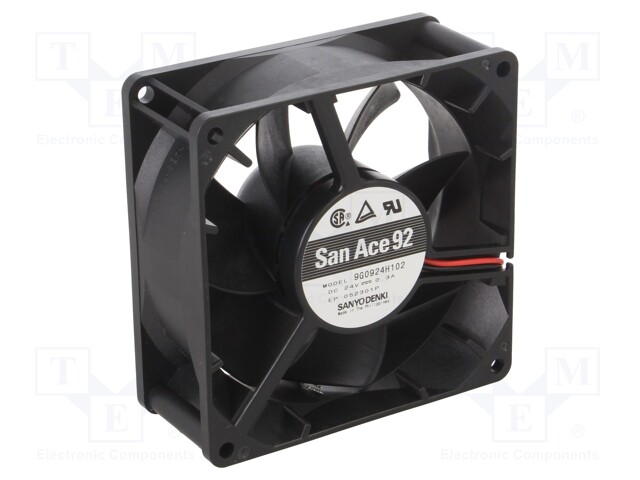

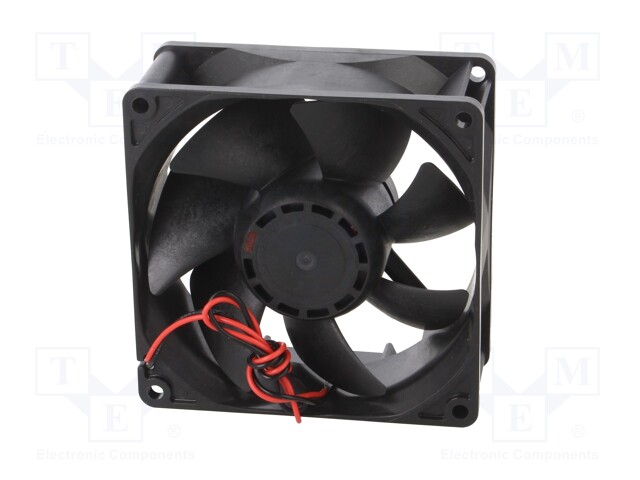

Axial Fan, 24 V, DC, 92 mm, 38 mm, 90 cu.ft/min, 2.54 m³/min

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 9G0924H102
    Tootja: SANYO DENKI
    Tootja tootekood: 9G0924H102
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Cable length
    • Current rating
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    23,90 € 23,90 € (KM-TA) 23.900000000000002 EUR

    23,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Axial Fan, 24 V, DC, 92 mm, 38 mm, 90 cu.ft/min, 2.54 m³/min

    Supply voltage 24V DC
    Operating temperature -20...60°C
    Enclosure material plastic
    Leads 3 leads
    Flammability rating UL94V-0
    Cable length 300mm
    Current rating 300mA
    Power consumption 7.2W
    Additional functions lock sensor
    Rotational rate/speed 4000rpm
    Fan dimensions 92x92x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 43dBA
