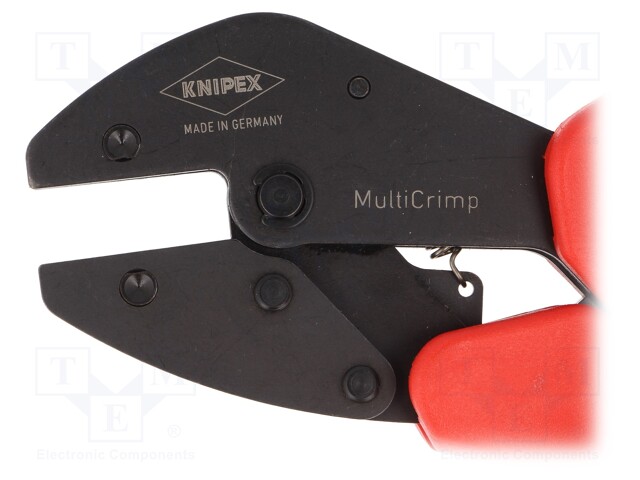

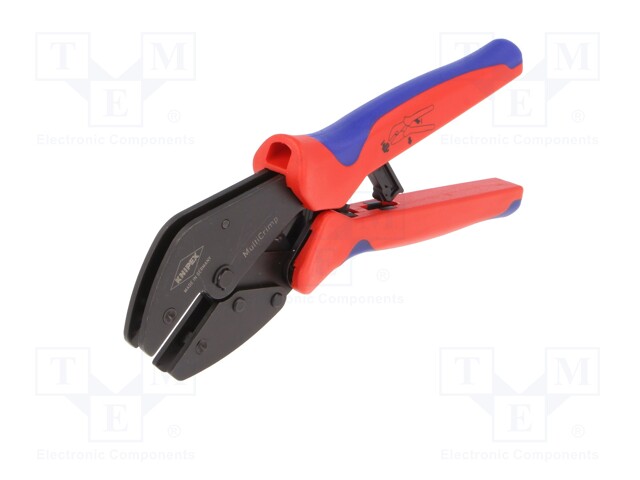

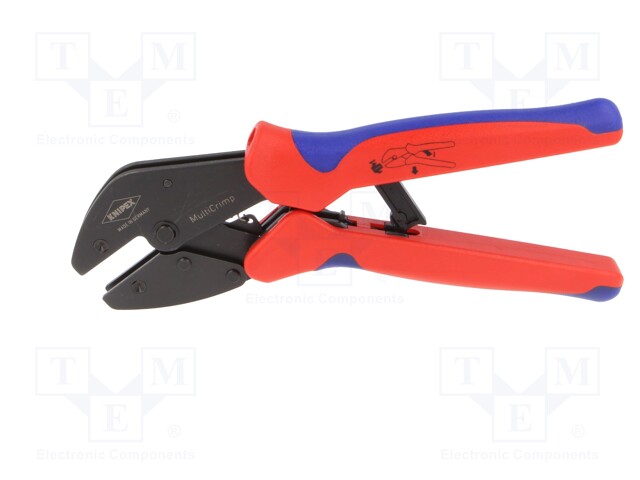

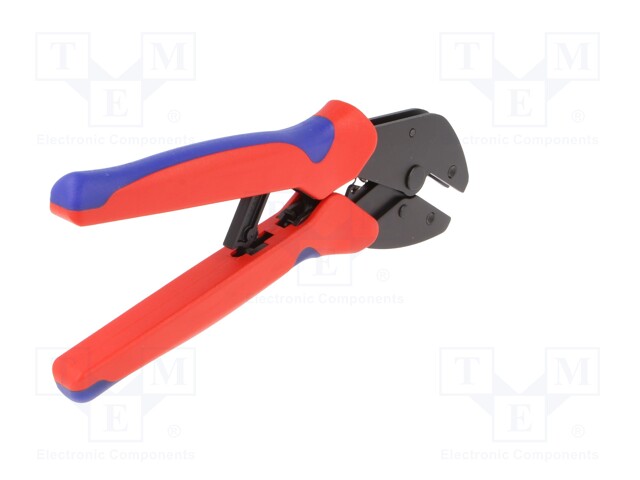

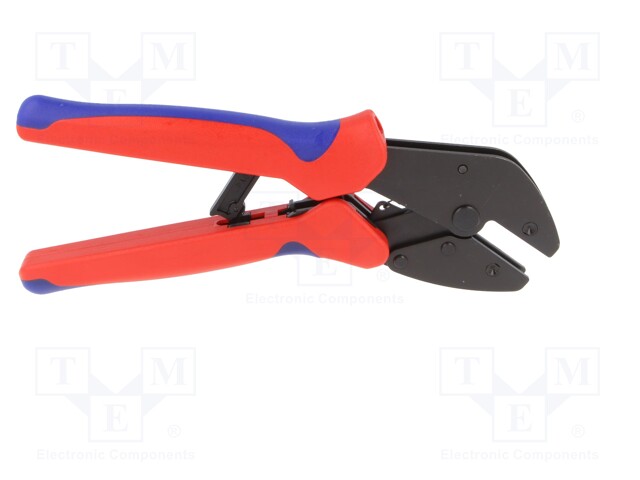

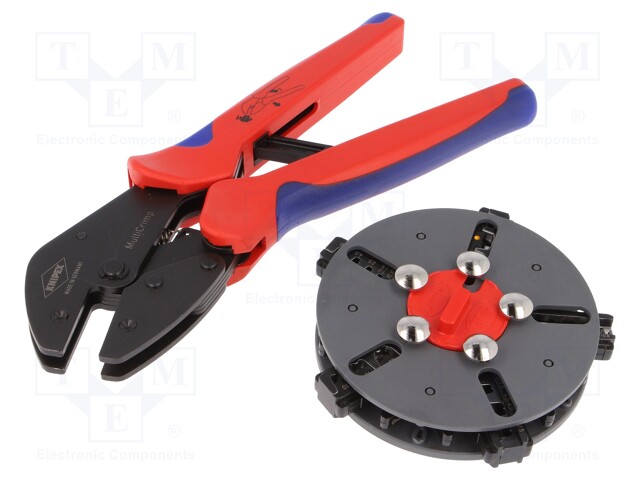

Tool: for crimping; non-insulated terminals,ring tube terminal

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: 97 33 02
Tootja: KNIPEX
Tootja tootekood: 97 33 02
  • Length
  • Wire size
  • Wire size
  • Wire size
  • Wire size
  • Wire size
  • Wire size
  • Wire size
  • Wire size
  • Type of tool
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Wire cross section
  • Crimp tool application
  • Crimp tool application
  • Crimp tool application
  • Crimp tool application
  • Crimp tool application
  • Crimp tool application
  • Tool material
  • Crimp tool features
  • Crimp tool features
  • Crimp tool features
  • Crimp tool features

285,26 € 285,26 € (KM-TA) 285.26 EUR

285,26 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Tool: for crimping; non-insulated terminals,ring tube terminal

Length 250mm
Wire size 20AWG...10AWG (insulated terminals), 20AWG...10AWG (non-insulated terminals), 20AWG...7AWG (non insulated butt splice), 20AWG...7AWG (ring tube terminal), 23AWG...10AWG (insulated solder sleeves), 23AWG...10AWG (non insulated solder sleeves), 7AWG, 5AWG, 3AWG (insulated solder sleeves), 7AWG, 5AWG, 3AWG (non insulated solder sleeves)
Type of tool for crimping

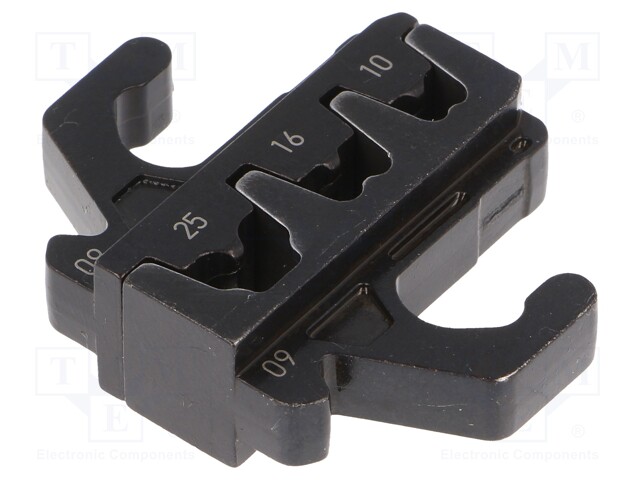

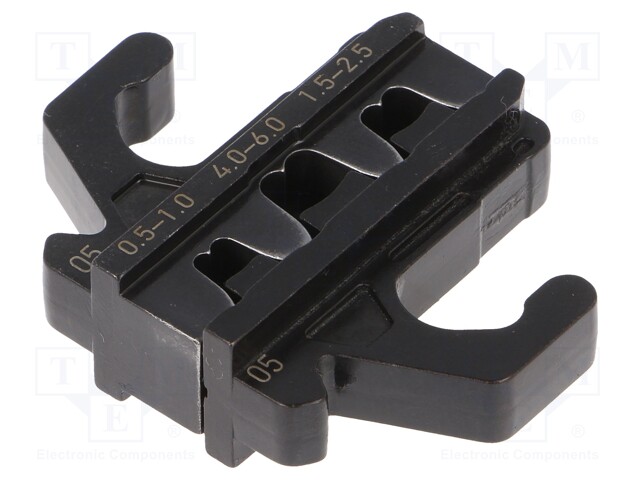

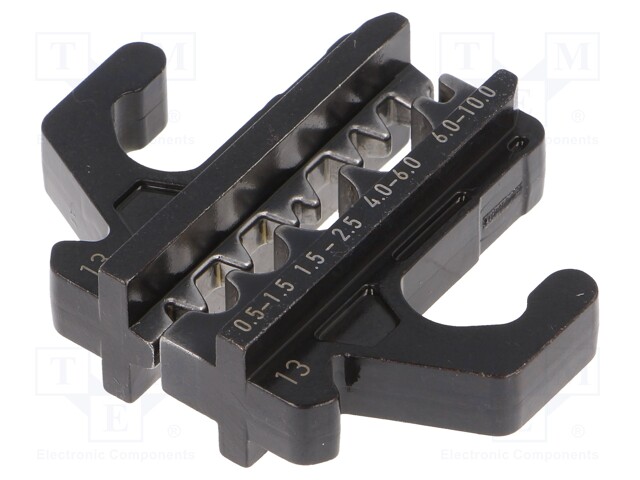

Wire cross section 0,25...6mm2 (insulated solder sleeves), 0,25...6mm2 (non insulated solder sleeves), 0,5...10mm2 (non insulated butt splice), 0,5...10mm2 (ring tube terminal), 0,5...6mm2 (insulated terminals), 0,5...6mm2 (non-insulated terminals), 10, 16, 25mm2 (insulated solder sleeves), 10, 16, 25mm2 (non-insulated solder sleeves)

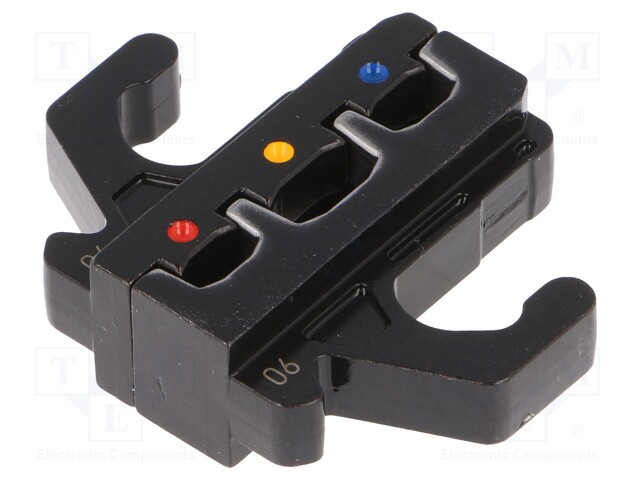

Crimp tool application insulated solder sleeves, insulated terminals, non-insulated solder sleeves, non-insulated terminals, ring tube terminal, butt non-insulated splice
Tool material steel

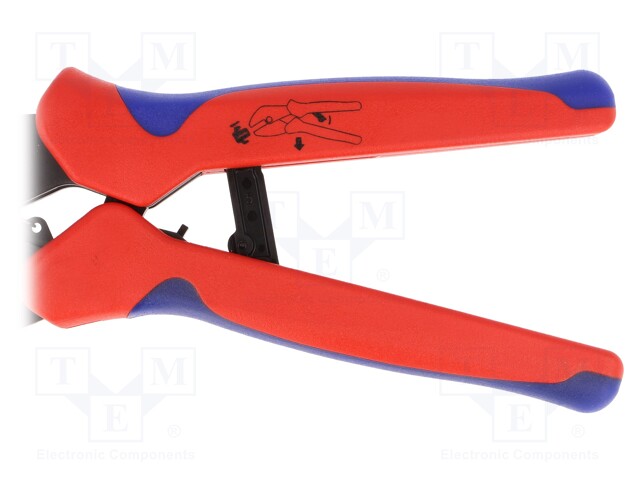

Crimp tool features a ratched mechanism serves also as a handle lock, blackened tool, ergonomic pads on handles, the crimp correctness is ensured by special ratchet mechanism which enables to open the tool only after finishing the full crimping cycle
