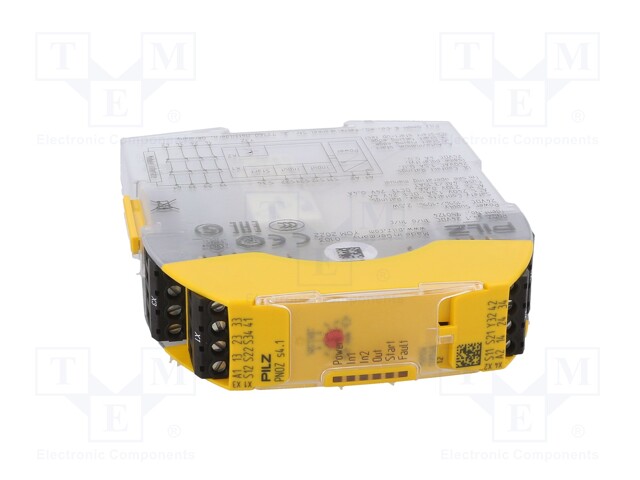

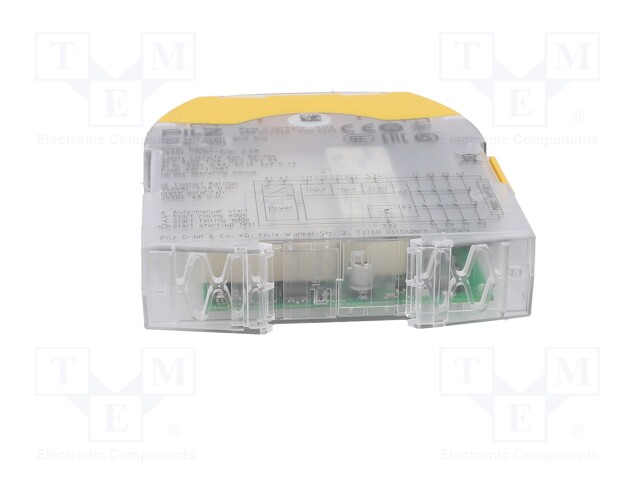

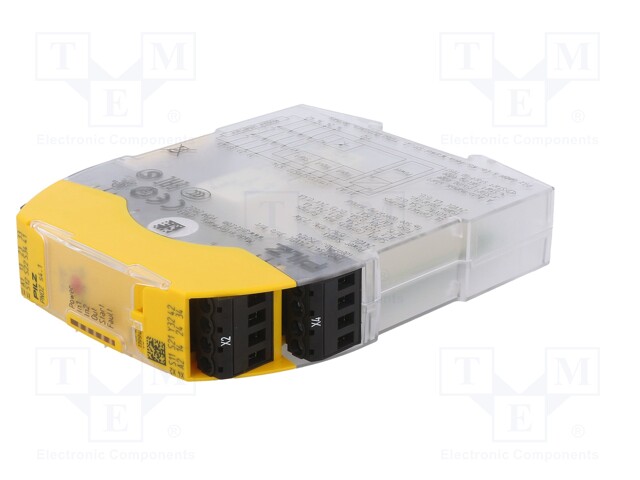

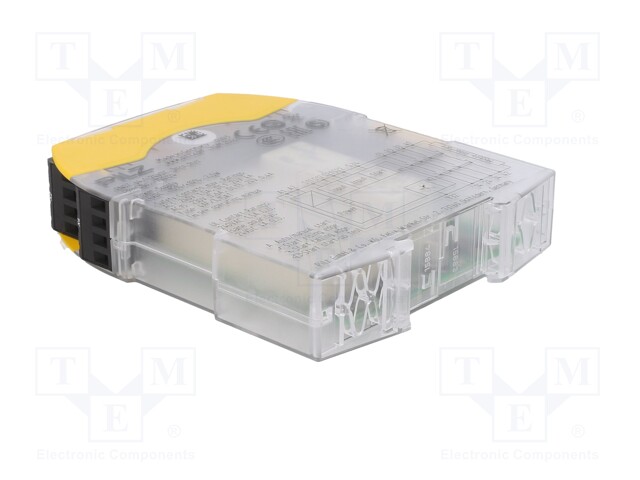

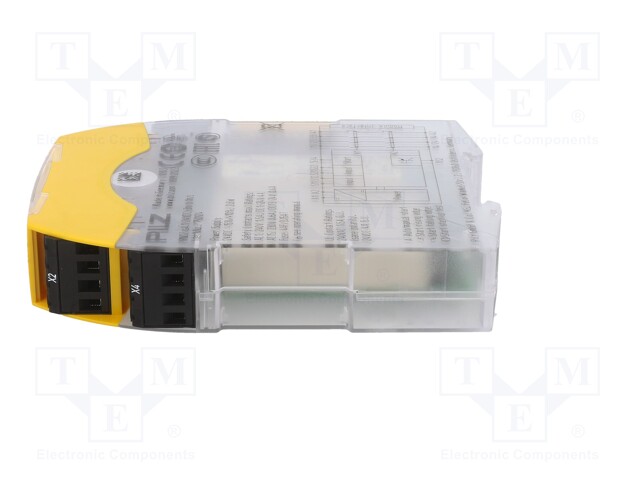

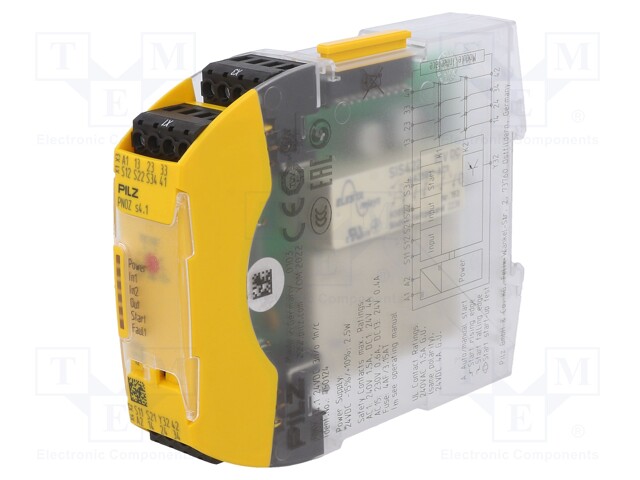

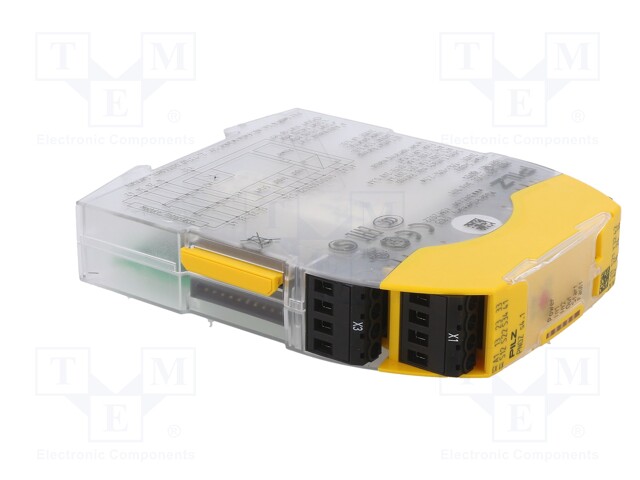

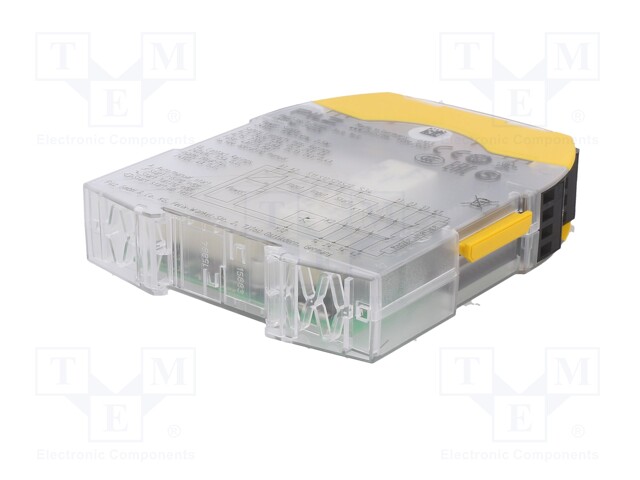

Module: safety relay; Series: PNOZ s4.1; IN: 3; OUT: 5; Mounting: DIN

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 750124
    Tootja: PILZ
    Tootja tootekood: 750124
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Application
    • Application
    • Body dimensions
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Signal output
    • Safety category
    • Input 1 properties
    • Safety outputs
    • Auxiliary outputs

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Module: safety relay; Series: PNOZ s4.1; IN: 3; OUT: 5; Mounting: DIN

    Mounting for DIN rail mounting
    Supply voltage 24V DC
    Operating temperature -10...60°C
    IP rating IP40
    Type of module safety relay
    Series PNOZ s4.1
    Application emergency stop, safety gates and light beam devices
    Body dimensions 98x22.5x120mm
    Number of inputs 3
    Number of outputs 5
    Electrical connection screw terminals
    Signal output transistor 24V DC
    Safety category 4
    Input 1 properties 2 channels with or without between-channels short circuit detection
    Safety outputs 3x NO
    Auxiliary outputs 1 x NC
