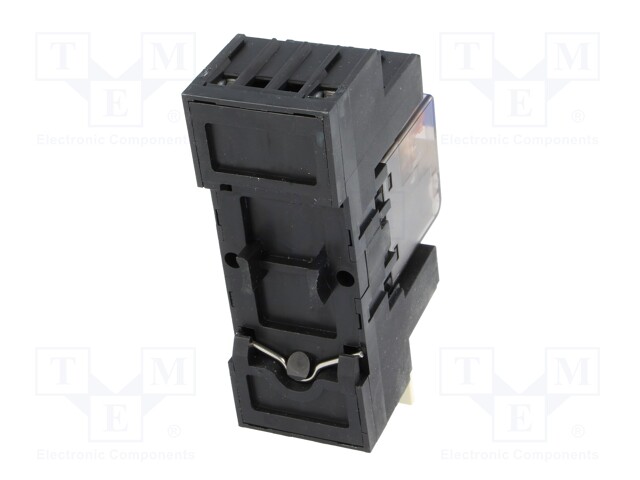

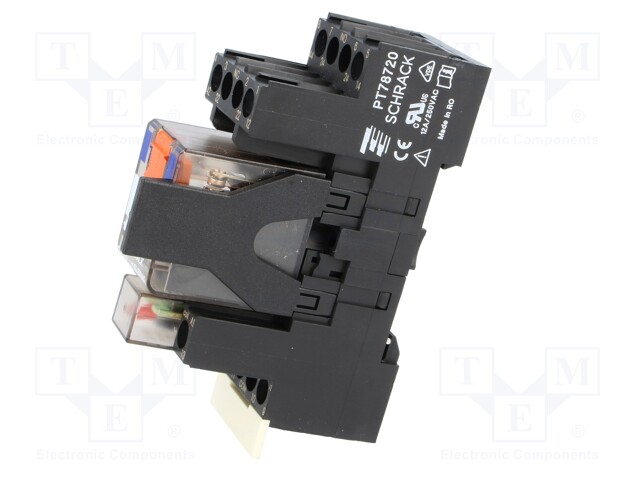

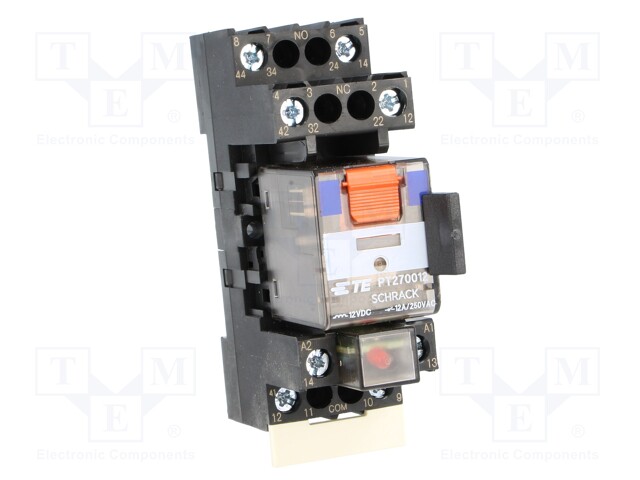

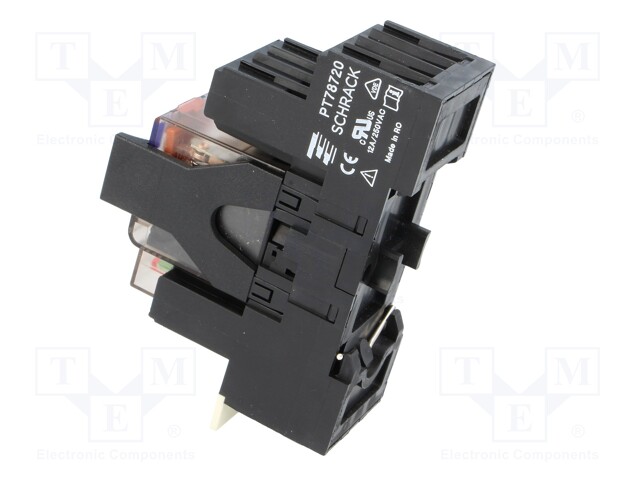

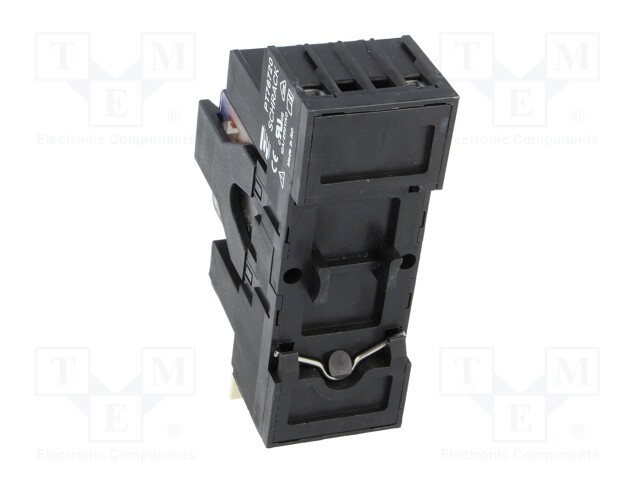

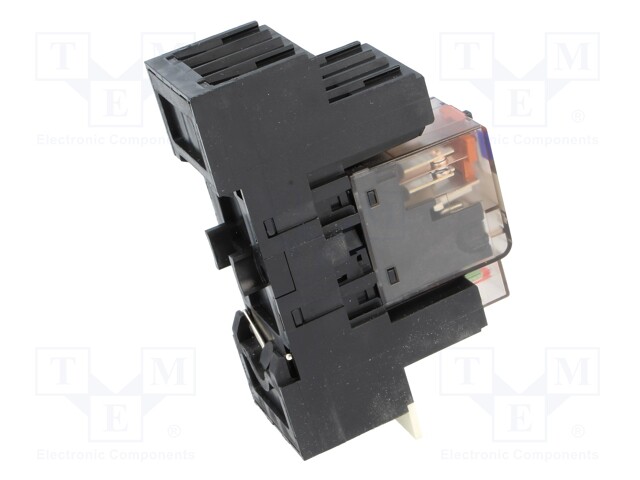

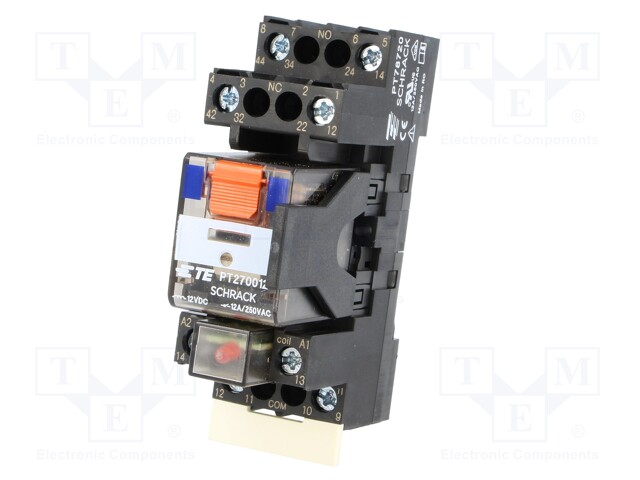

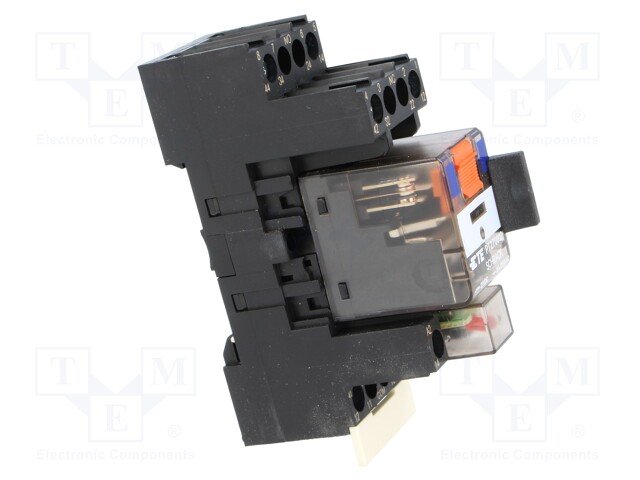

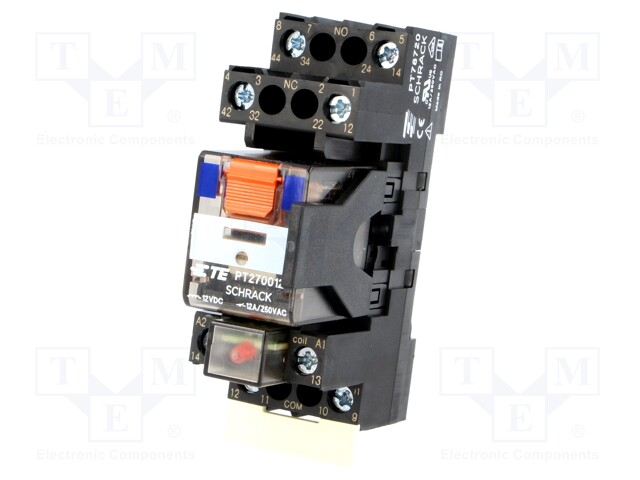

Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 7-1415074-1
    Tootja: TE Connectivity
    Tootja tootekood: 7-1415074-1
    • Mounting
    • Max. operating current
    • Operating temperature
    • Leads
    • Body dimensions
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Kit contents
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: interface; DPDT; Ucoil: 12VDC; 12A; 12A/250VAC; 12A/30VDC

    Mounting for DIN rail mounting
    Max. operating current 12A
    Operating temperature -40...70°C
    Leads screw terminals
    Body dimensions 73.5x58x27mm
    Kit contents description plate PT17040, ejector PT17016, indication module PTML0024, PT270012 relay, socket
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Switching capacity 3kVA
    Coil resistance 192Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 12A / 30V DC
    AC contacts rating @R 12A / 250V AC
    Relay variant Relay set
    Type of relay interface
    Coil power consumption 0.75W
    Relay series PT
