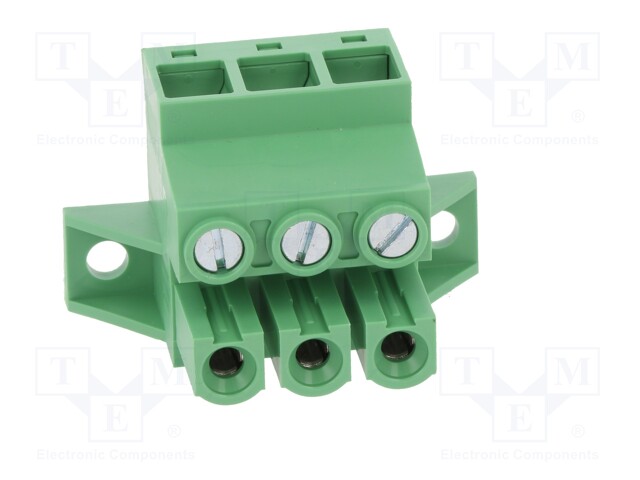

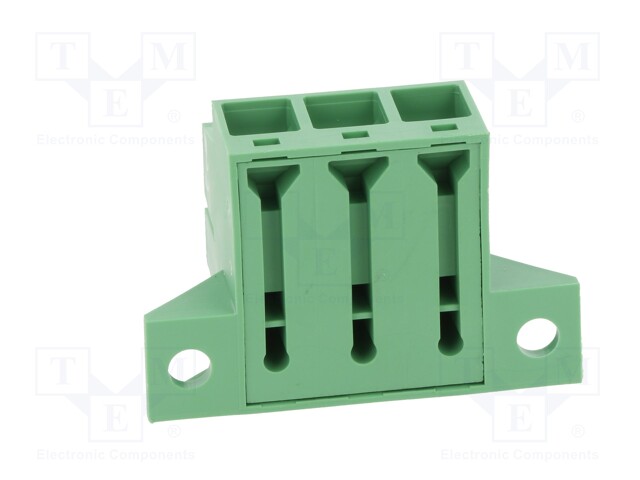

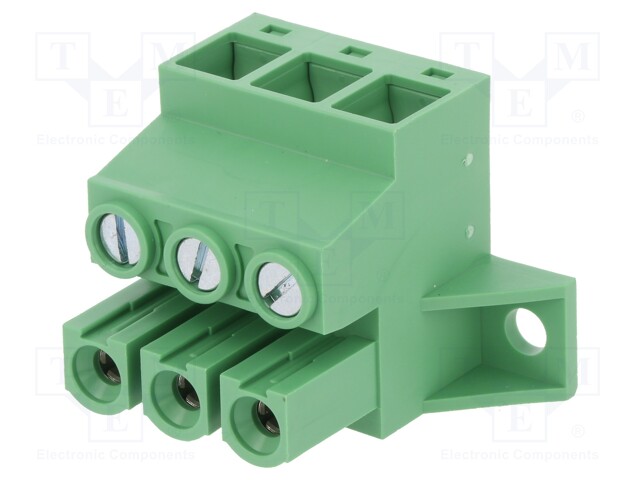

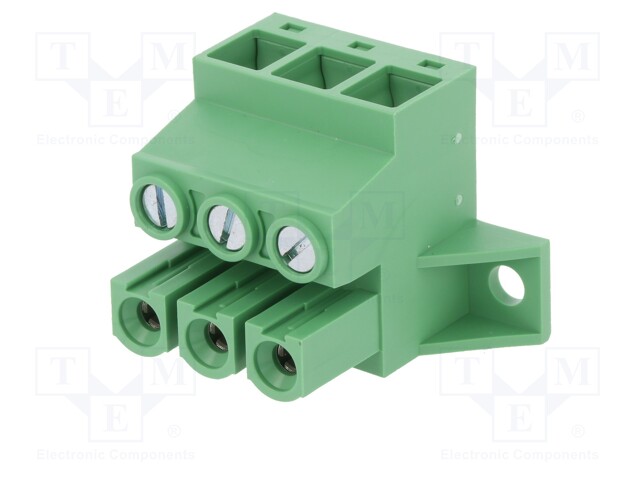

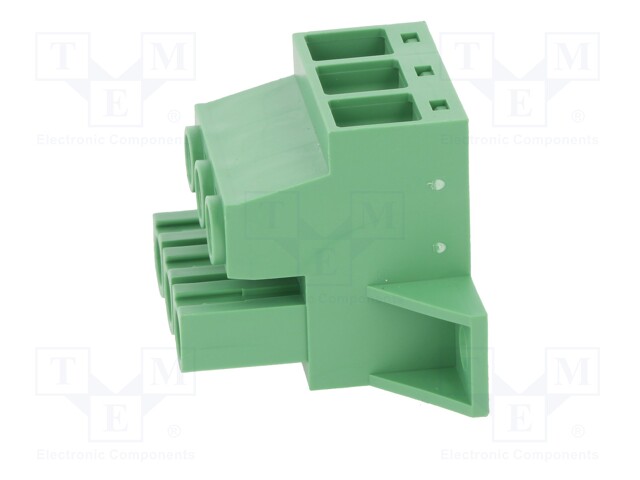

Pluggable terminal block; 10.16mm; ways: 3; angled 90°; socket

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 5EDG-STD-10.16-03P-14-00AH
    Tootja: DEGSON ELECTRONICS
    Tootja tootekood: 5EDG-STD-10.16-03P-14-00AH
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Mechanical mounting
    • Mechanical mounting
    • Colour
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Rated voltage
    • Locking system
    • Conform to the norm
    • Spatial orientation

    4,32 € 4,32 € (KM-TA) 4.32 EUR

    4,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Pluggable terminal block; 10.16mm; ways: 3; angled 90°; socket

    Operating temperature -40...105°C
    Contacts pitch 10.16mm
    Electrical mounting cage clamp, screw terminal
    Connector socket
    Kind of connector female
    Mechanical mounting for cable, for panel mounting, mounting holes
    Colour green
    Type of connector pluggable terminal block
    Contact material copper
    Body material NYLON 66
    Flammability rating UL94V-0
    Current rating 41A
    Number of ways 3
    Type of pin configuration 1x3
    Number of terminals 3
    Rated voltage 1kV
    Locking system friction lock
    Conform to the norm UL
    Spatial orientation angled 90°
