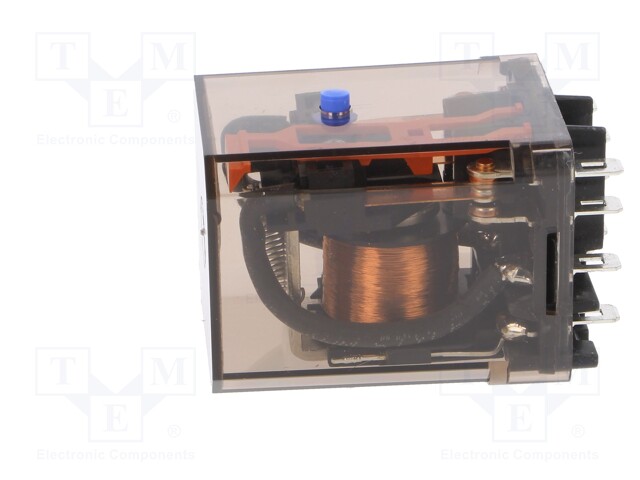

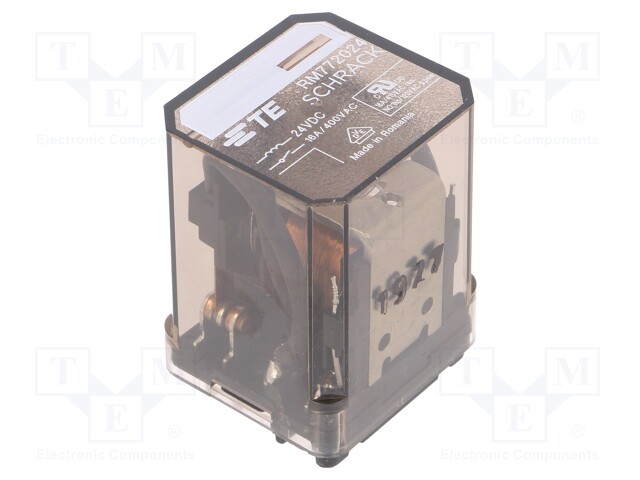

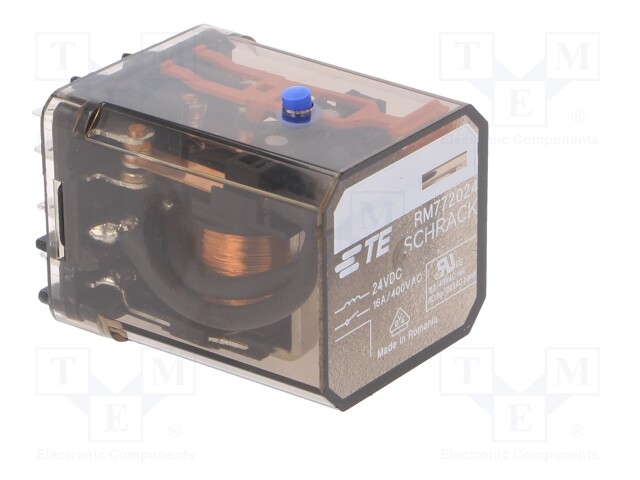

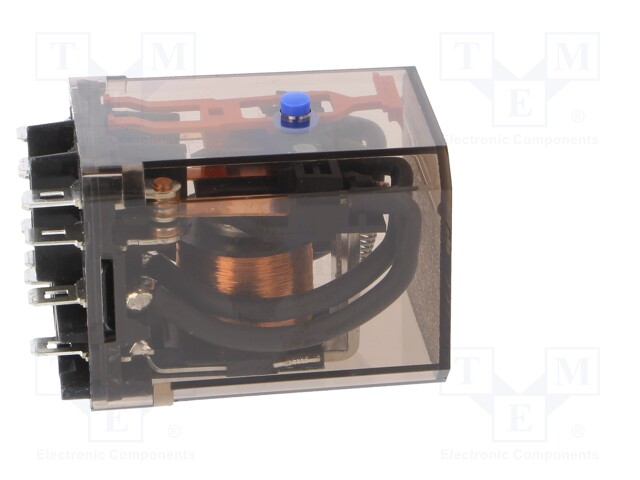

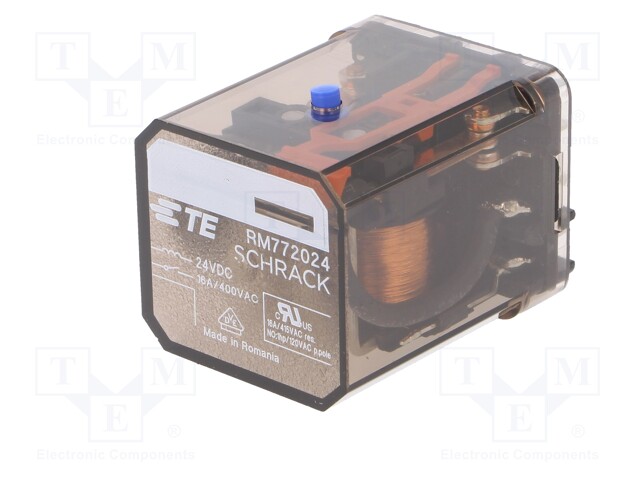

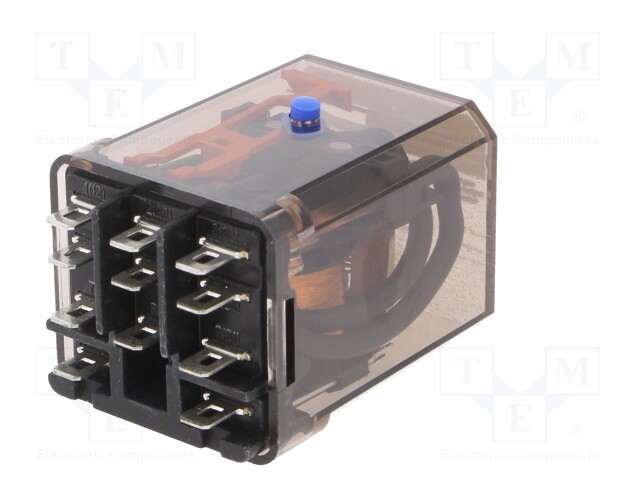

Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 16A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
5-1415544-7
Tootja: TE Connectivity
Tootja tootekood: 5-1415544-7
Product downloads
Spetsifikatsioon tootele Relay: electromagnetic; 3PDT; Ucoil: 24VDC; Icontacts max: 16A
Mounting | socket |
Operating temperature | -40...50°C |
Leads | 4,8x0,5mm connectors |
Contact material | AgNi |

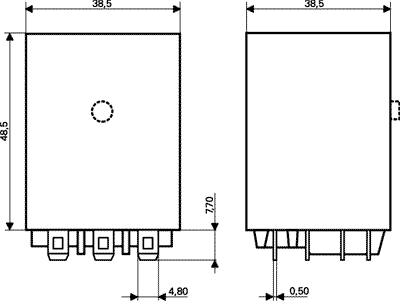

Body dimensions | 35.5x38.5x48.5mm |
Mechanical durability | 20000000cycles |
Switched voltage | ≤ 300V DC, ≤ 440V AC |
Coil resistance | 345Ω |
Rated coil voltage | 24V DC |
Contacts configuration | 3PDT |
DC contacts rating @R | 16A / 30V DC |
AC contacts rating @R | 16A / 277V AC |
Contact current max. | 16A |
Relay variant | power |
Type of relay | electromagnetic |
Coil power consumption | 1.7W |
Relay series | RM7 |
Operate time | 15ms |
Release time | 10ms |
Coil current | 70.8mA |
