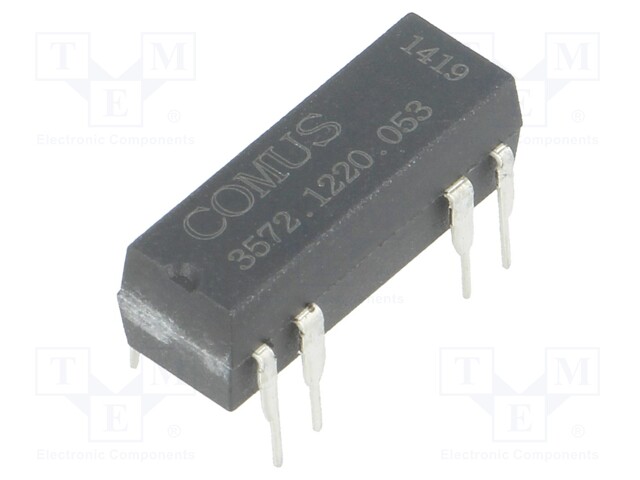

Relay: reed; DPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W; THT; DIP14

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3572.1220.053
    Tootja: COMUS
    Tootja tootekood: 3572.1220.053
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Optional equipment

    3,84 € 3,84 € (KM-TA) 3.84 EUR

    3,84 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; DPST-NO; Ucoil: 5VDC; 500mA; max.150VDC; 10W; THT; DIP14

    Mounting THT
    Case DIP14
    Operating temperature -20...85°C
    Terminal pitch 2.54mm
    Body dimensions 19.5x6.9x6.9mm
    Switched voltage ≤ 150V DC
    Switching capacity 10W
    Rated coil voltage 5V DC
    Contacts configuration DPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 32V DC
    Type of relay reed
    Coil voltage min. 18V DC
    Relay series 3572
    Optional equipment diode
