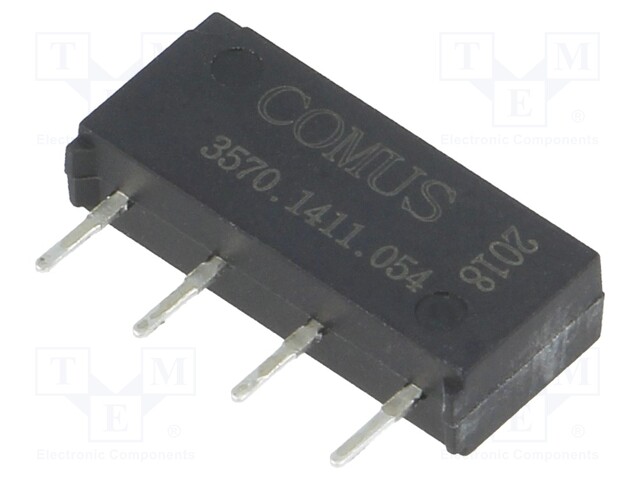

Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; THT; SIP

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 3570.1411.054
    Tootja: COMUS
    Tootja tootekood: 3570.1411.054
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Relay features
    • Optional equipment
    • Optional equipment

    4,44 € 4,44 € (KM-TA) 4.44 EUR

    4,44 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 500mA; max.200VDC; 10W; THT; SIP

    Mounting THT
    Case SIP
    Operating temperature -40...85°C
    Terminal pitch 3.81mm
    Body dimensions 15.24x6.98x3.81mm
    Switched voltage ≤ 200V DC
    Switching capacity 10W
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 7V DC
    Type of relay reed
    Coil voltage min. 3.75V DC
    Relay series 3570
    Relay features high reliability
    Optional equipment diode, electrostatic shield
