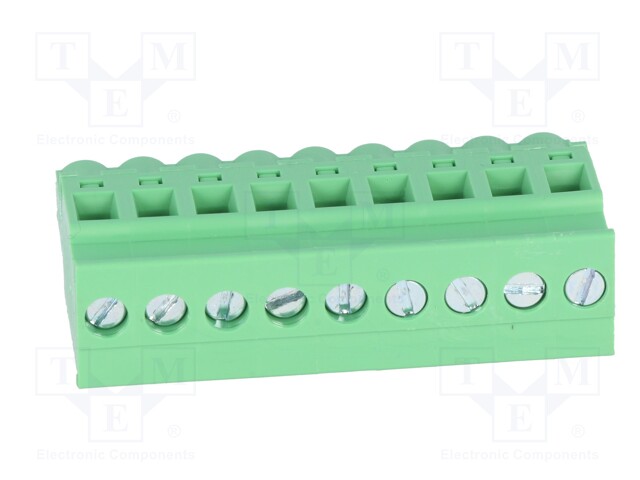

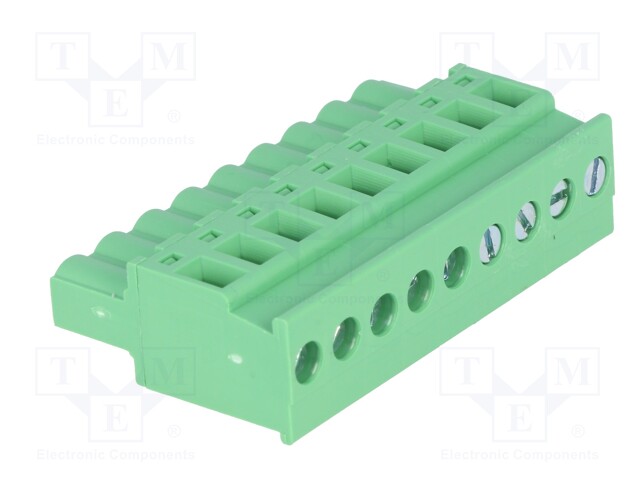

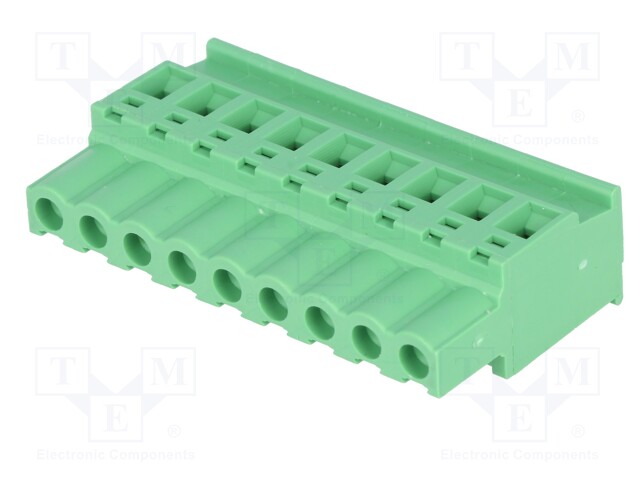

Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; plug; 320V

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 2EDGKB-5,08-09P-14-00AH
    Tootja: DEGSON ELECTRONICS
    Tootja tootekood: 2EDGKB-5,08-09P-14-00AH
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Contact material
    • Body material
    • Flammability rating
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Number of terminals
    • Rated voltage
    • Locking system
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Spatial orientation
    • Stripped wire length

    3,56 € 3,56 € (KM-TA) 3.56 EUR

    3,56 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 5.08mm; ways: 9; plug; 320V

    Operating temperature -40...105°C
    Contacts pitch 5.08mm
    Electrical mounting cage clamp, screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Contact material brass
    Body material NYLON 66
    Flammability rating UL94V-0
    Current rating 10A
    Number of ways 9
    Type of pin configuration 1x9
    Number of terminals 9
    Rated voltage 320V
    Locking system latch
    Conform to the norm CE, UL, VDE
    Spatial orientation angled 90°
    Stripped wire length 7mm
