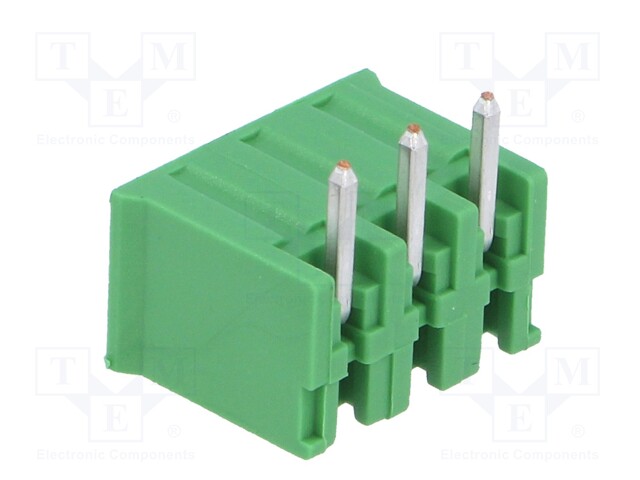

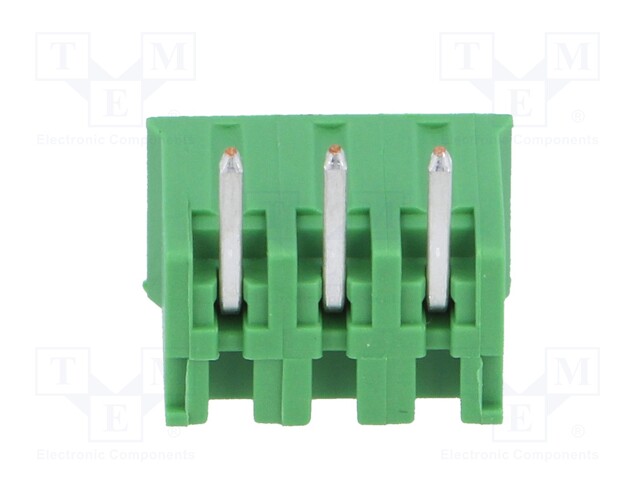

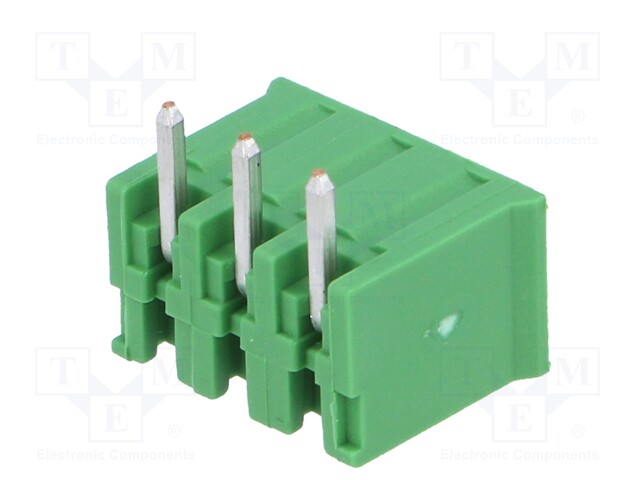

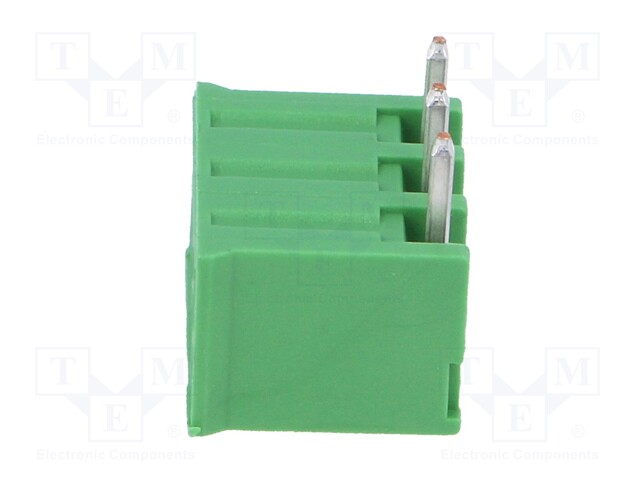

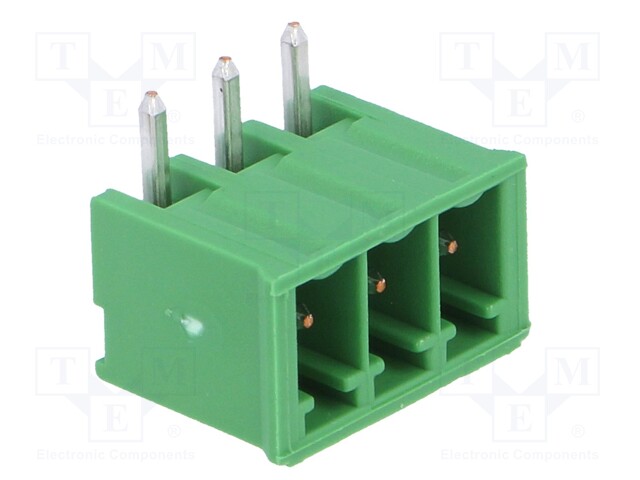

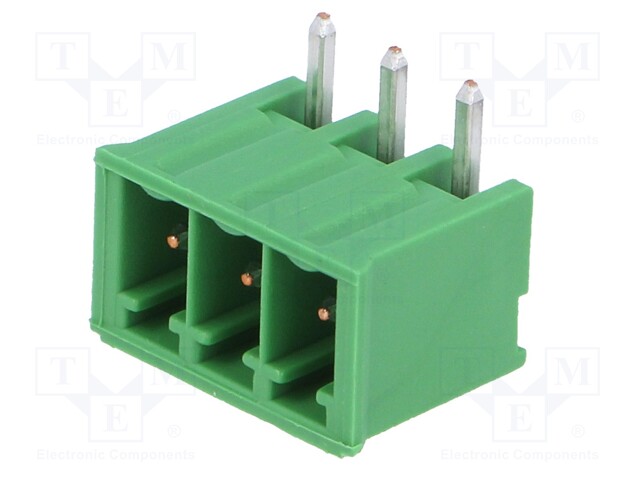

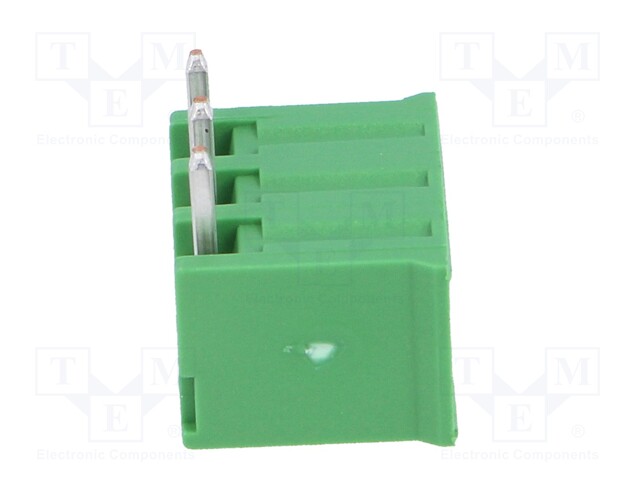

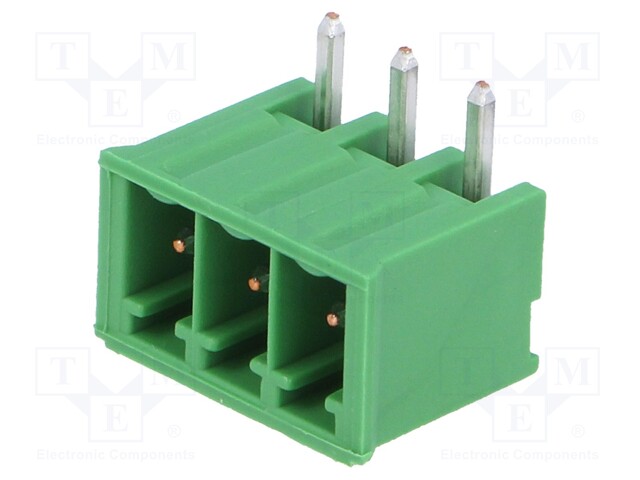

Pluggable terminal block; Contacts ph: 3.5mm; ways: 3; angled 90°

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 284512-3
    Tootja: TE Connectivity
    Tootja tootekood: 284512-3
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Number of pins
    • Contact material
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Locking system
    • Conform to the norm
    • Spatial orientation
    • Depth

    1,58 € 1,58 € (KM-TA) 1.58 EUR

    1,58 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Pluggable terminal block; Contacts ph: 3.5mm; ways: 3; angled 90°

    Operating temperature -40...105°C
    Contacts pitch 3.5mm
    Electrical mounting THT
    Connector socket
    Kind of connector male
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector pluggable terminal block
    Number of pins 3
    Contact material phosphor bronze
    Body material polyamide
    Flammability rating UL94V-0
    Length 16mm
    Height 7.3mm
    Current rating 11A
    Number of ways 3
    Type of pin configuration 1x3
    Rated voltage 300V
    Locking system friction lock
    Conform to the norm UL
    Spatial orientation angled 90°
    Depth 9.2mm
