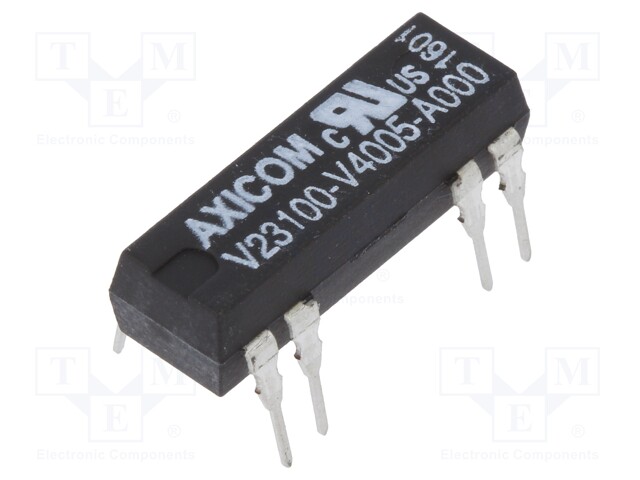

Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 10W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1393763-1
    Tootja: TE Connectivity
    Tootja tootekood: 1393763-1
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    7,70 € 7,70 € (KM-TA) 7.7 EUR

    7,70 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 10W

    Mounting PCB
    Operating temperature -40...85°C
    Body dimensions 19.3x6.4x5.1mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Min. insulation resistance 1GΩ
    Switching capacity 10W
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Type of relay reed
    Coil power consumption 50mW
    Operate time 750µs
    Release time 150µs
