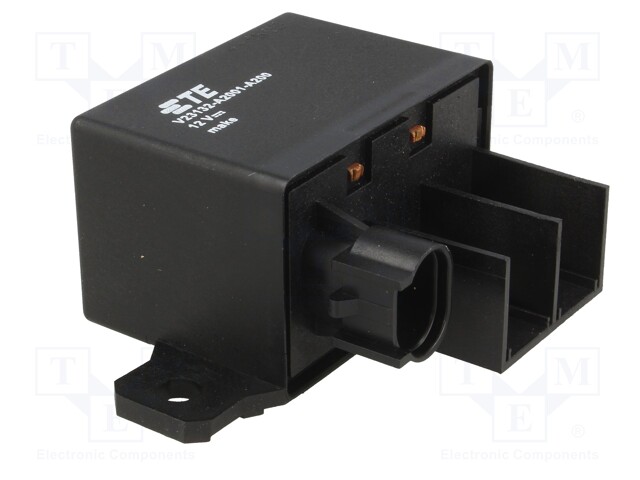

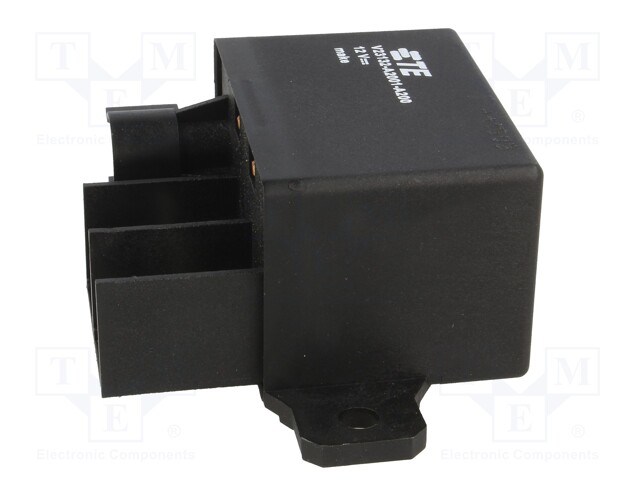

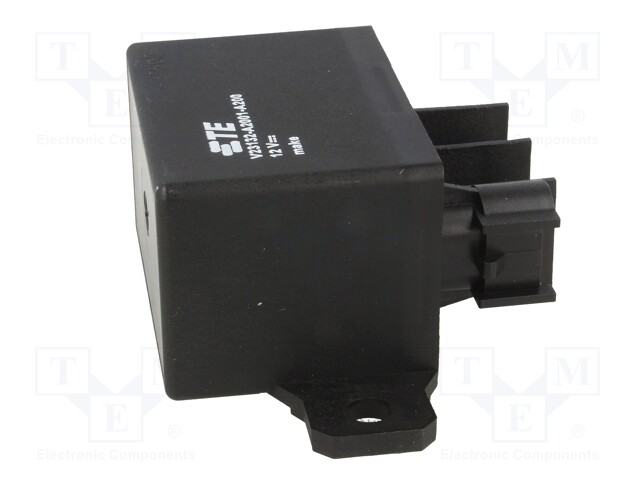

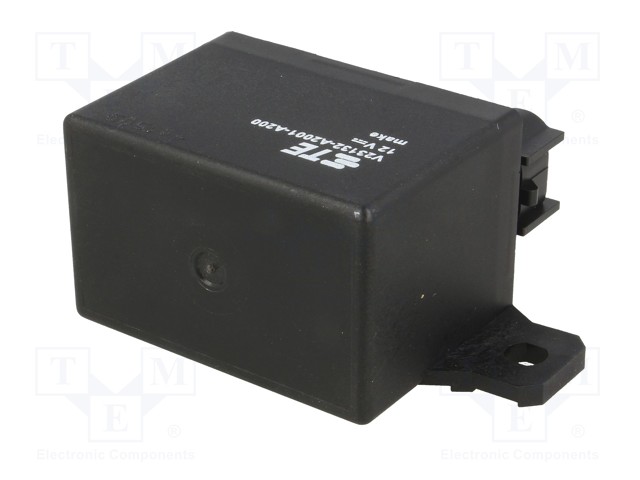

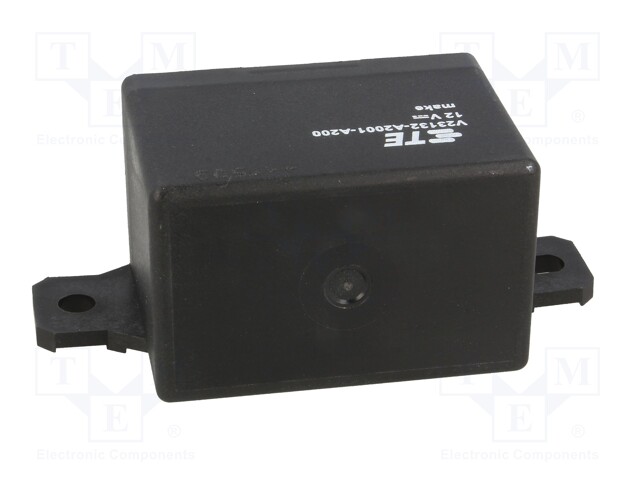

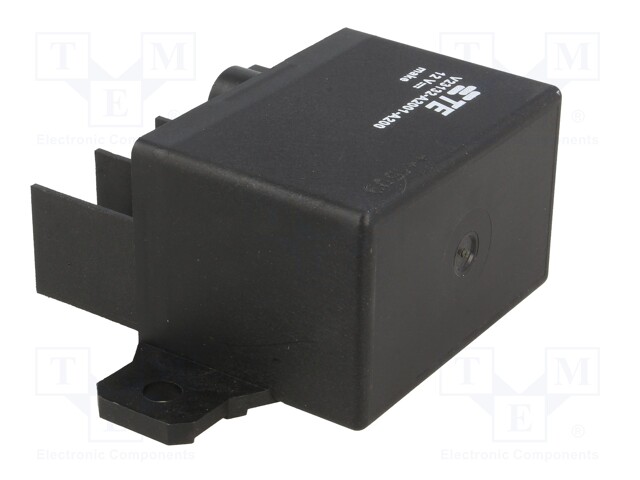

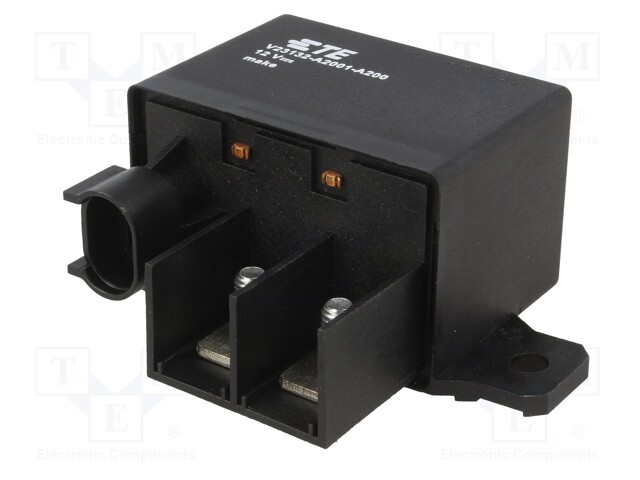

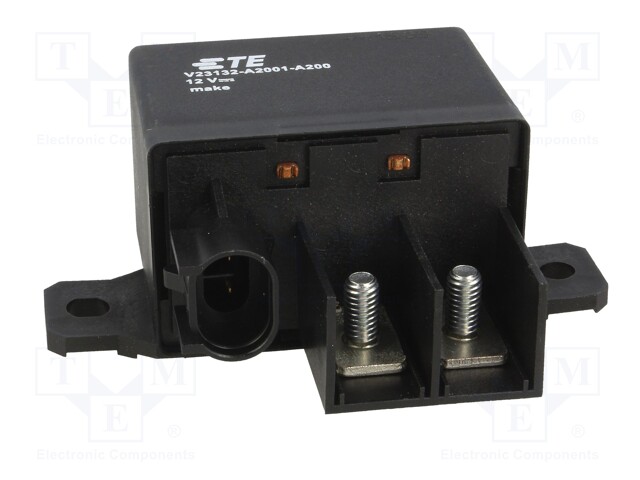

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 130A; Series: HCR150

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1393315-2
    Tootja: TE Connectivity
    Tootja tootekood: 1393315-2
    • Mounting
    • Operating temperature
    • IP rating
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series

    62,68 € 62,68 € (KM-TA) 62.68 EUR

    62,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 130A; Series: HCR150

    Mounting on panel
    Operating temperature -40...125°C
    IP rating IP54
    Leads screw terminals
    Contact material AgSnO<sub>2</sub>

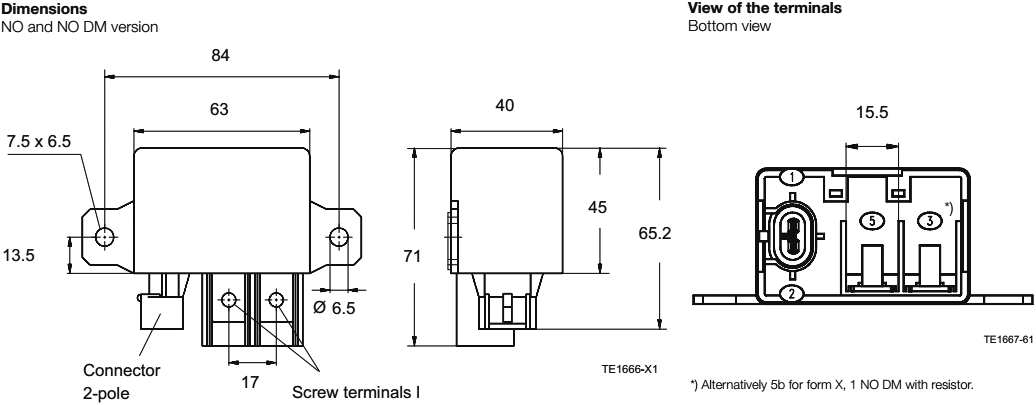

    Body dimensions 84x45x40mm
    Switched voltage ≤ 24V DC
    Coil resistance 37Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 130A / 12V DC
    Contact resistance 50mΩ
    Contact current max. 130A
    Relay variant automotive, power
    Type of relay electromagnetic
    Coil power consumption 3.9W
    Relay series HCR150
