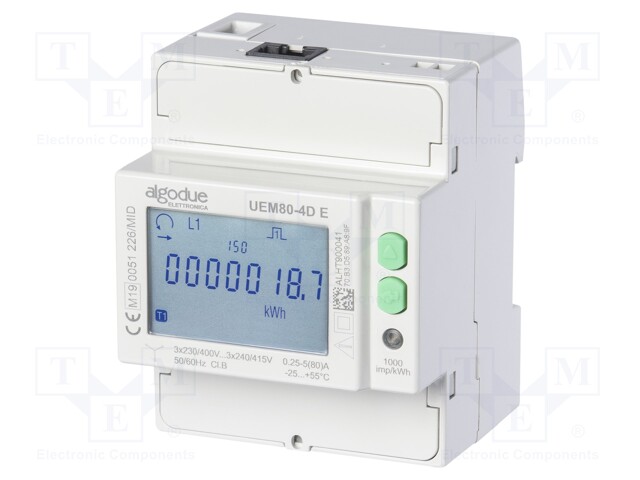

Electric energy meter; 80A; Network: three-phase; 50÷60Hz; IP51

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 1104.0007.0001
    Tootja: ALGODUE
    Tootja tootekood: 1104.0007.0001
    • Mounting
    • Operating temperature
    • IP rating
    • Interface
    • Maximum current
    • Body dimensions
    • Input voltage
    • Kind of display used
    • Operating frequency
    • Kind of network
    • Program memory
    • Rated voltage
    • Rated voltage
    • Output
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • Input
    • Accuracy class
    • Measuring instrument features
    • Kind of counter
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Measurement
    • Kind of meter
    • Kind of meter
    • Dimensions (W x H x D)

    230,18 € 230,18 € (KM-TA) 230.18 EUR

    230,18 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Electric energy meter; 80A; Network: three-phase; 50÷60Hz; IP51

    Mounting for DIN rail mounting
    Operating temperature -25...55°C
    IP rating IP51
    Interface M-Bus
    Maximum current 80A
    Body dimensions 90x72x64mm
    Input voltage 230...240V
    Kind of display used LCD
    Operating frequency 50...60Hz
    Kind of network three-phase
    Program memory 8MB
    Rated voltage 230V, 400V
    Output pulse output SO
    Conform to the norm EN 50470-1, EN 50470-3, IEC 62053-21, IEC 62053-23
    Input tariff input
    Accuracy class B
    Measuring instrument features with reset function only on partial counters
    Kind of counter electronical
    Measurement AC current, AC voltage, frequency, active energy, reactive energy
    Kind of meter digital, mounting
    Dimensions (W x H x D) 72x90x64mm
