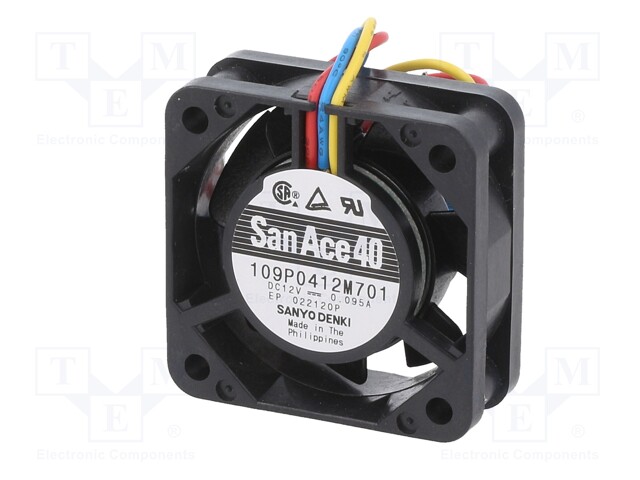

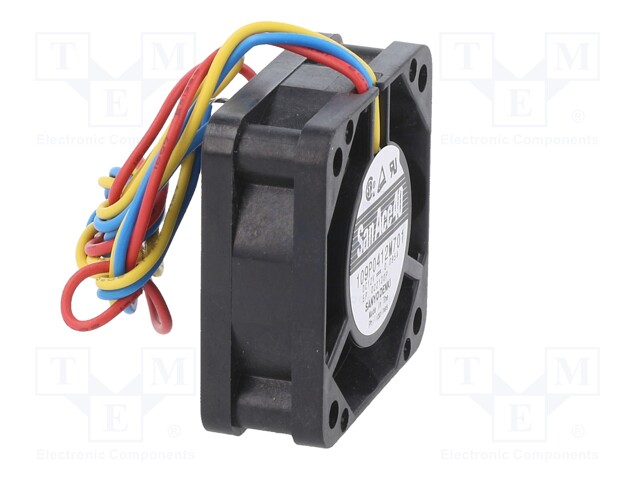

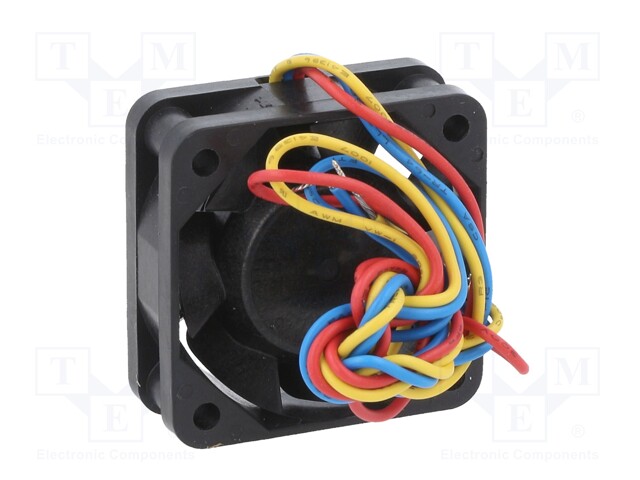

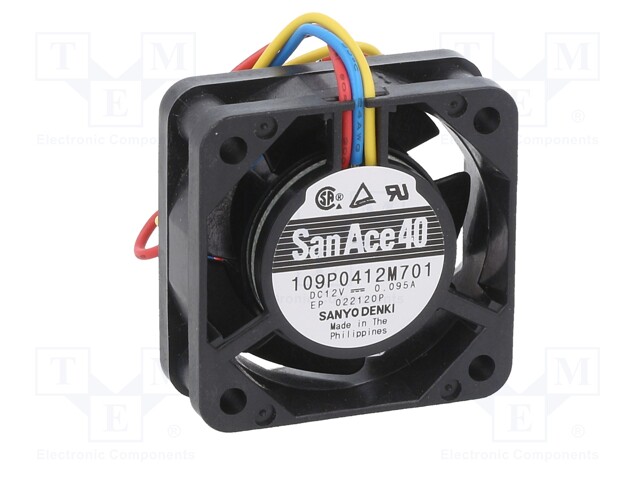

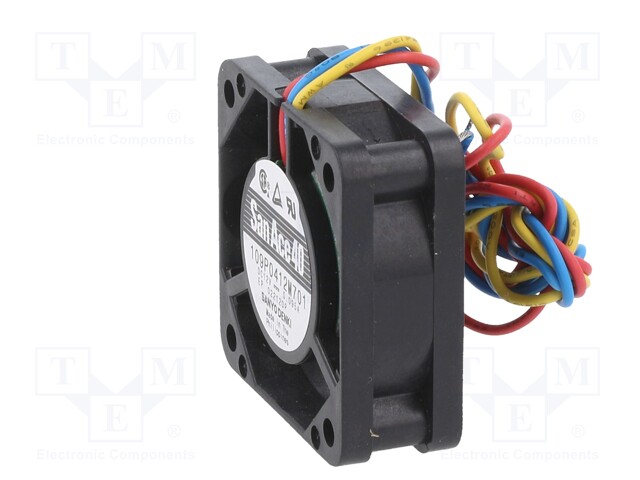

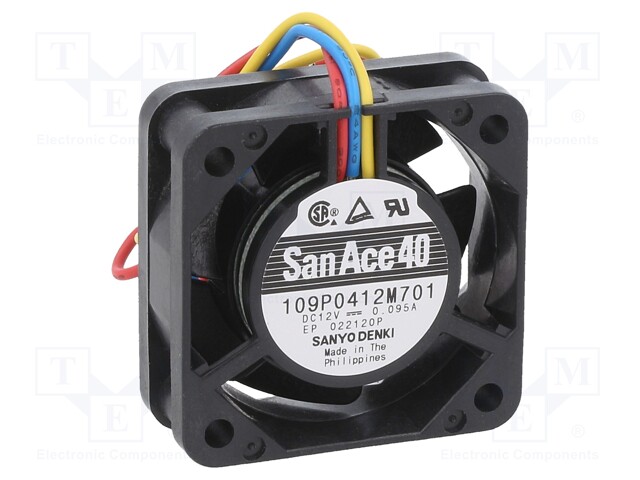

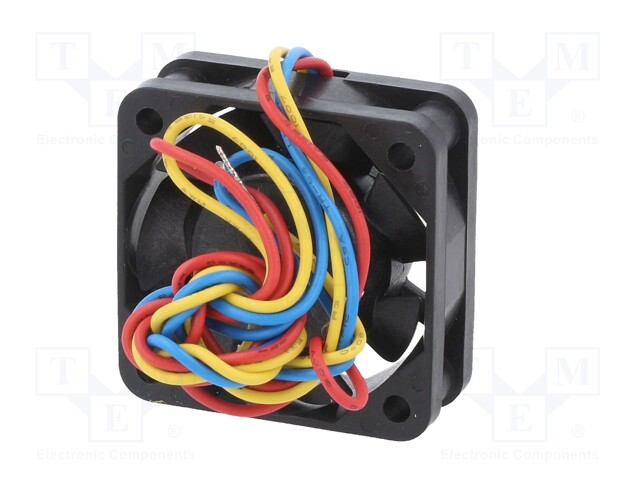

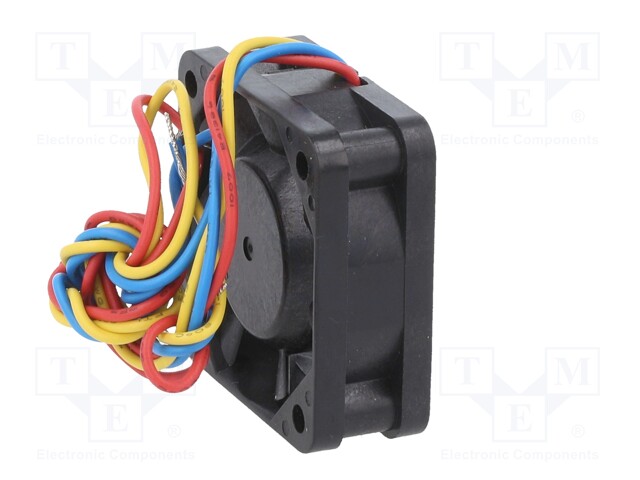

Axial Fan, 12 VDC, DC, 40 mm, 15 mm, 5.3 cu.ft/min, 0.15 m³/min

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: 109P0412M701
    Tootja: SANYO DENKI
    Tootja tootekood: 109P0412M701
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Axial Fan, 12 VDC, DC, 40 mm, 15 mm, 5.3 cu.ft/min, 0.15 m³/min

    Supply voltage 12V DC
    Operating temperature -20...70°C
    Enclosure material plastic
    Leads 3 leads
    Flammability rating UL94V-1
    Current rating 95mA
    Fan efficiency 9m<sup>3</sup>/h
    Power consumption 1.14W
    Additional functions lock sensor
    Rotational rate/speed 6500rpm
    Fan dimensions 40x40x15mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material plastic
    Kind of fan axial
    Type of fan DC
    Noise level 24dBA
