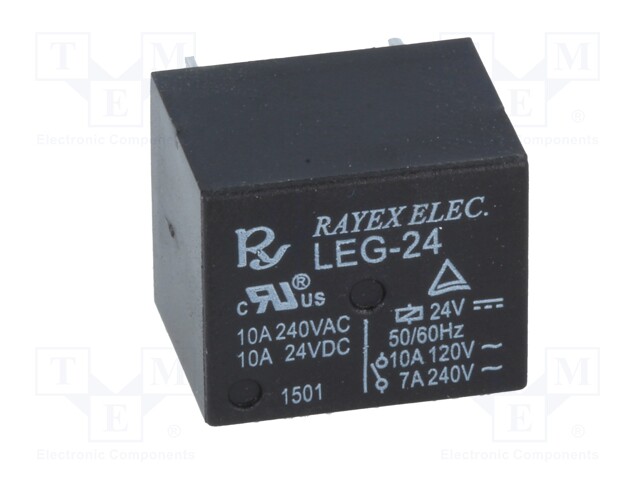

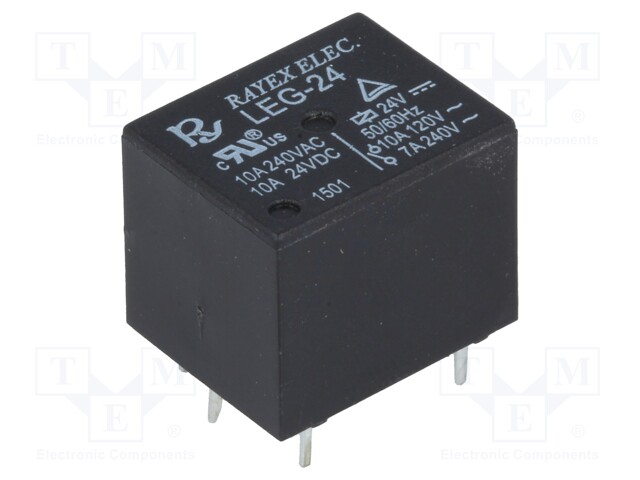

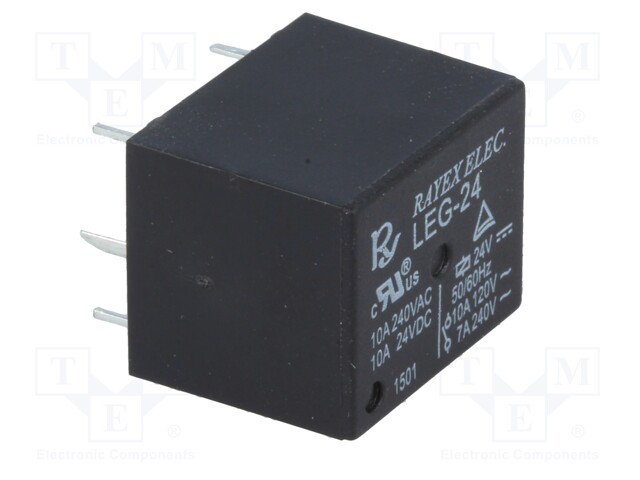

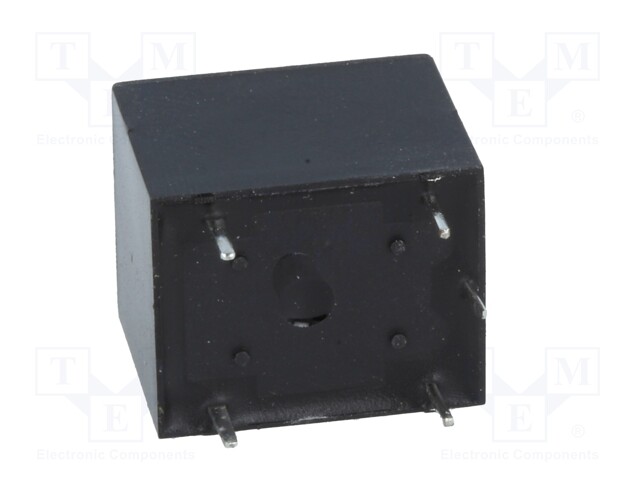

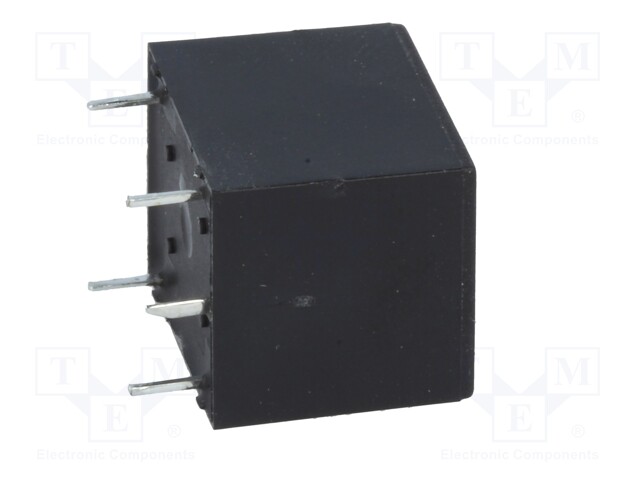

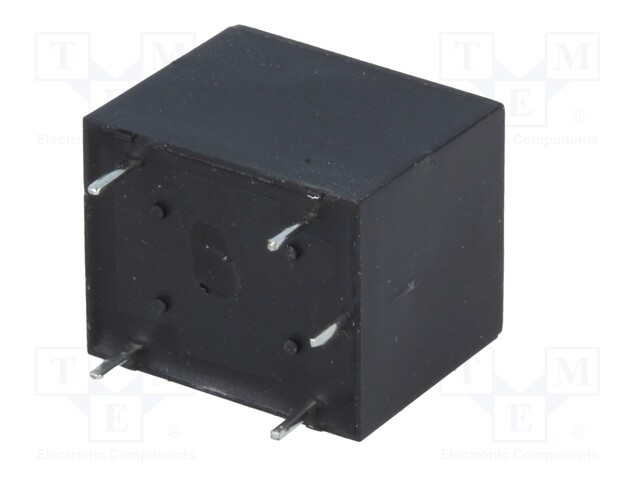

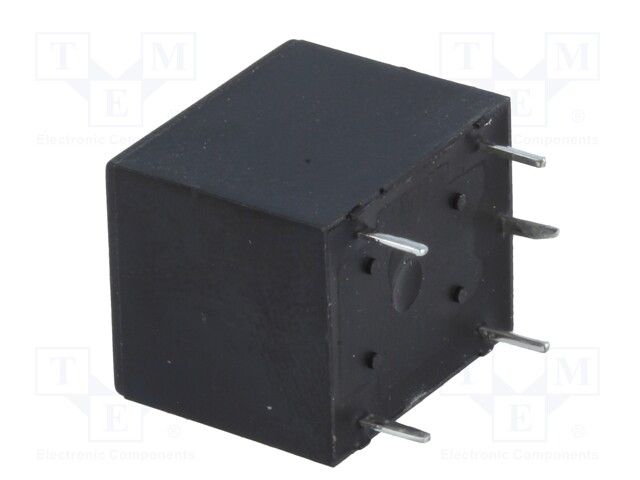

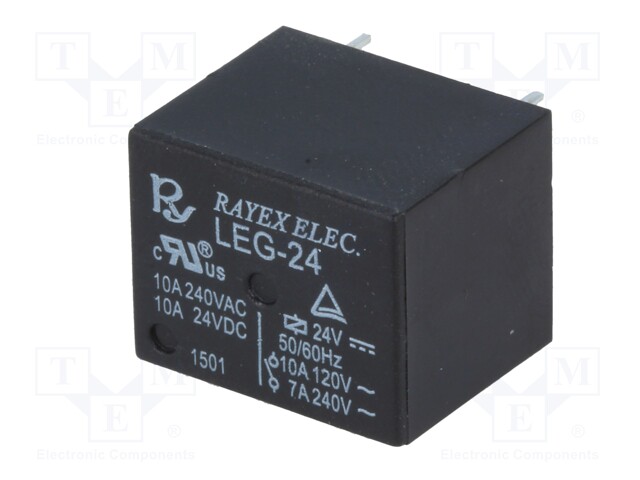

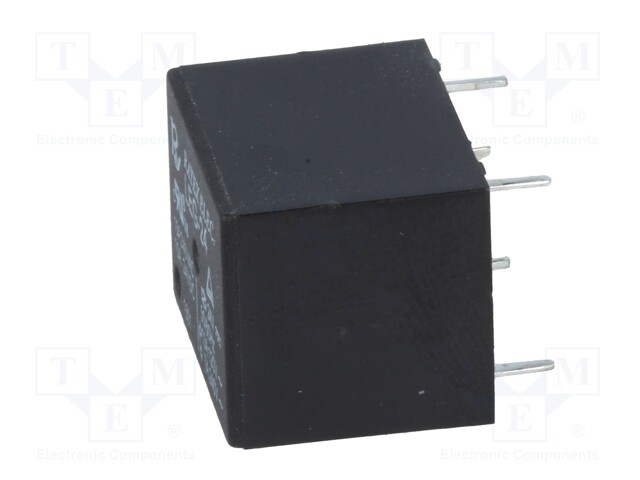

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/120VAC; 10A/24VDC

    Multiples: 1.0
    Minimum quantity: 3.0
    Product code: LEG-24
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: LEG-24
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    1.00 € 1.00 € (wo VAT) 1.0 EUR

    1.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/120VAC; 10A/24VDC

    Mounting PCB
    Operating temperature -25...80°C
    Terminal pitch 2mm
    Body dimensions 19.5x15.8x15mm
    Switched voltage max. 100V DC, max. 240V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 120V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 360mW
    Relay series LEG
    Operate time 8ms
    Release time 8ms
    Coil current 15mA
