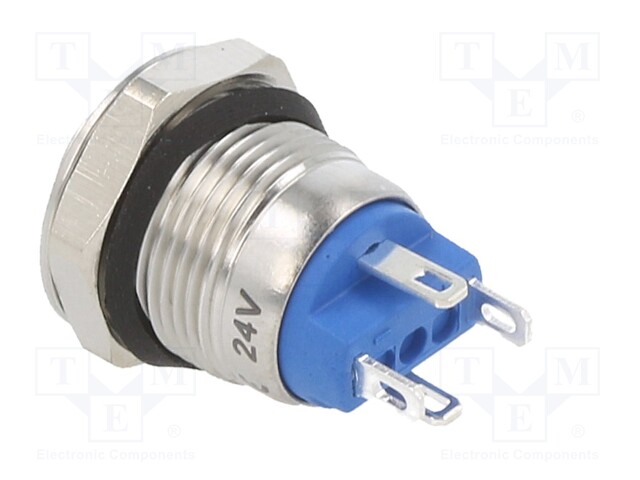

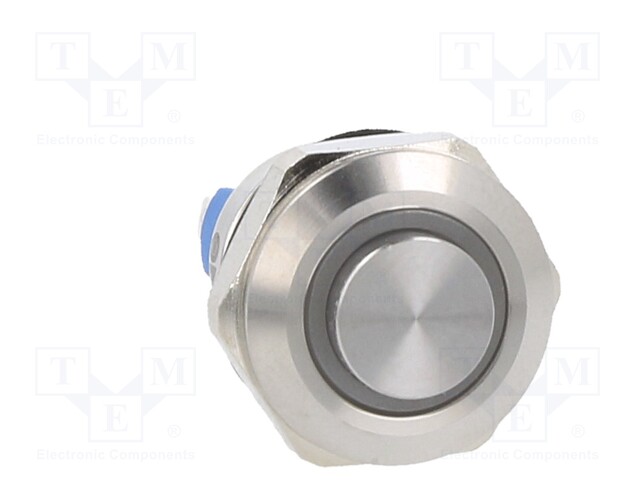

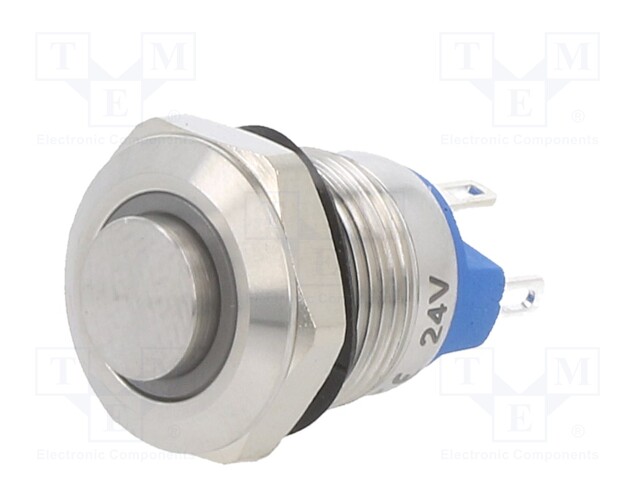

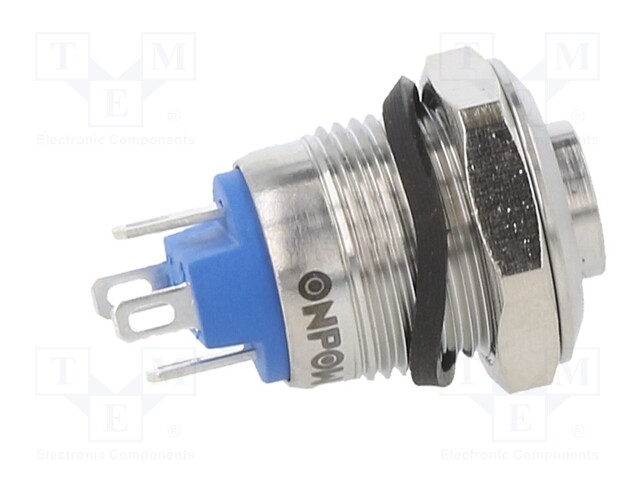

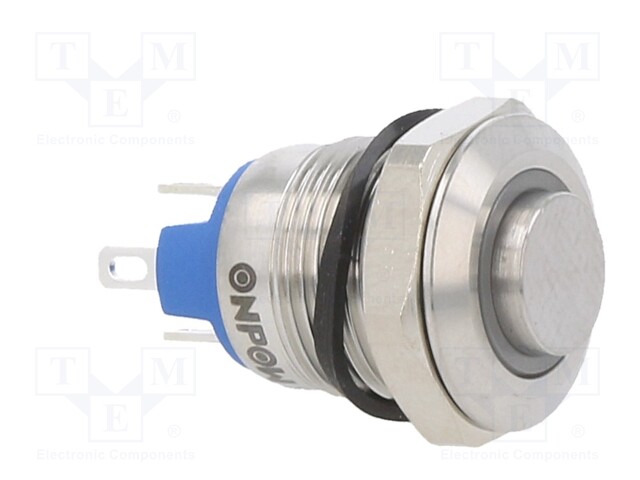

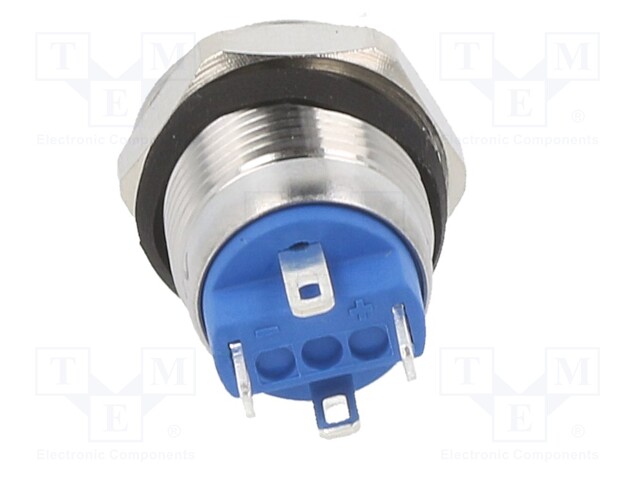

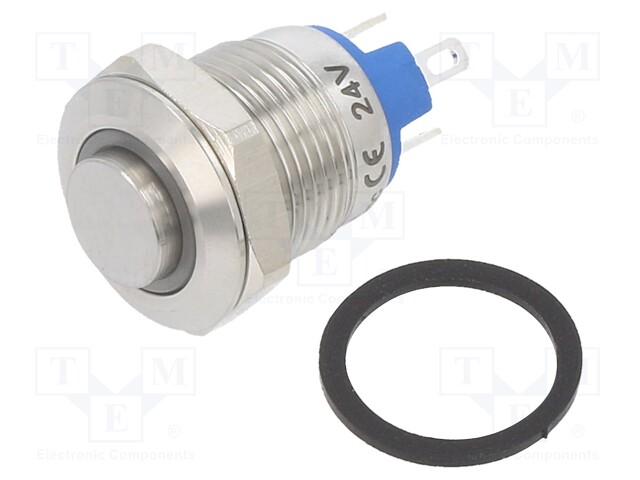

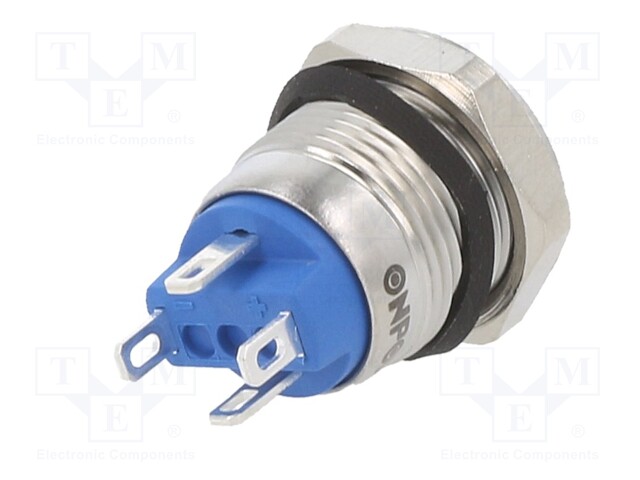

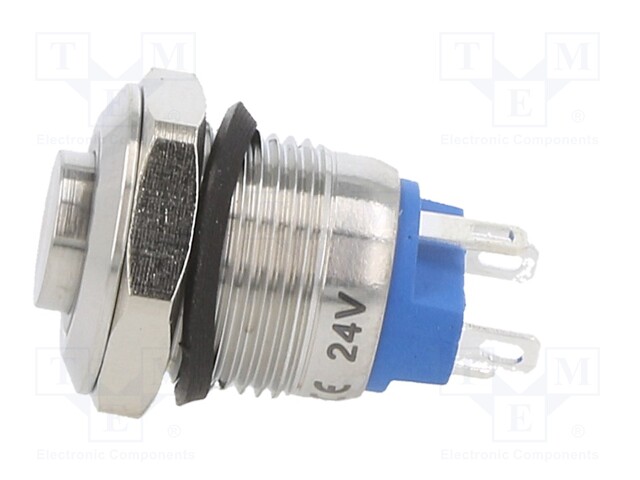

Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GQ12-AH-10E/J/B/24V/S
    Manufacturer: ONPOW
    Manufacturer code: GQ12-AH-10E/J/B/24V/S
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Button shape
    • Button shape
    • Illumination voltage
    • Ring shape

    7.58 € 7.58 € (wo VAT) 7.58 EUR

    7.58 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: vandal resistant; Pos: 2; SPST-NO; 2A/36VDC; IP65; OFF-(ON)

    Operating temperature -25...55°C
    IP rating IP65
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Max. contact resistance: 50mΩ
    Body material stainless steel
    Mounting hole diameter Ø12mm
    Body colour silver
    Mechanical durability 1000000cycles
    Backlight colour blue
    Illumination ring, LED
    Electrical life 200000cycles
    Test voltage 1.5kV
    Contacts configuration SPST-NO
    DC contacts rating @R 2A / 36V DC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3.5N
    Button shape prominent, round
    Illumination voltage 24V
    Ring shape rounded
