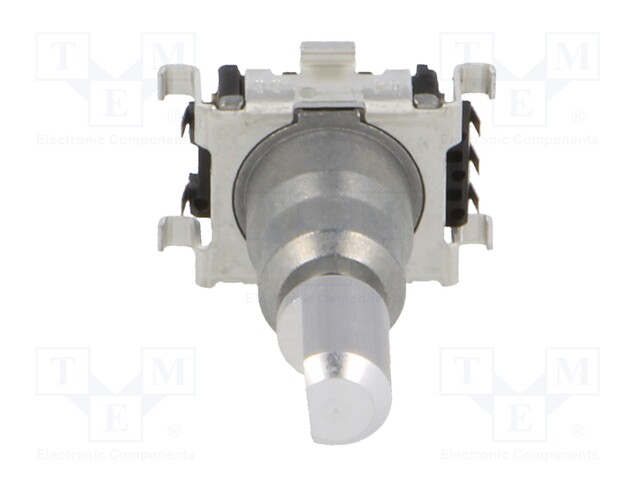

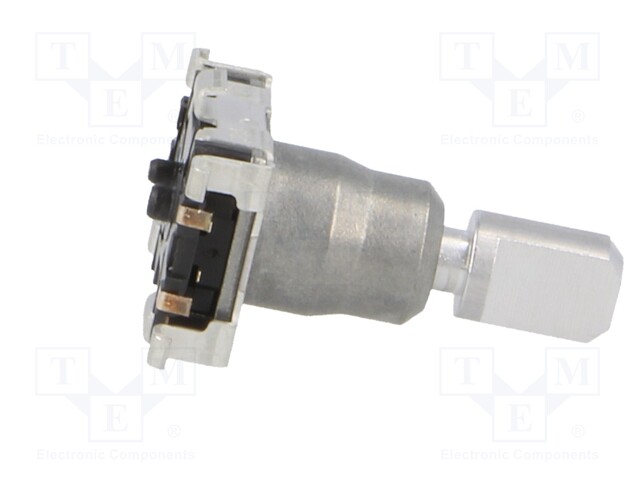

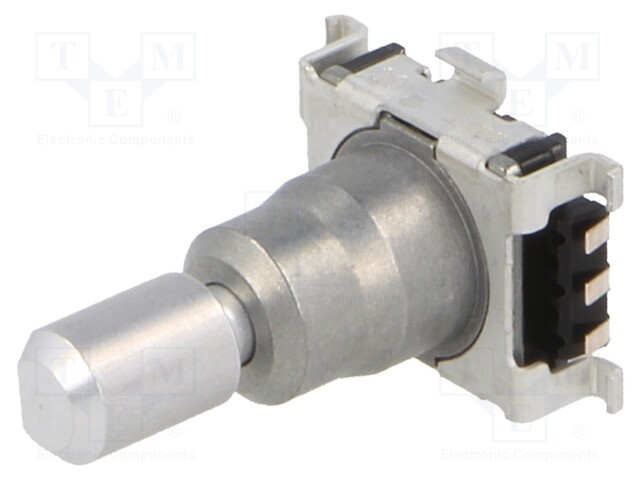

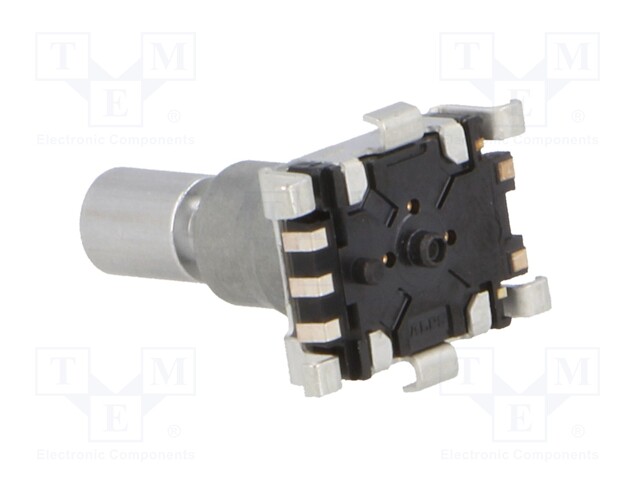

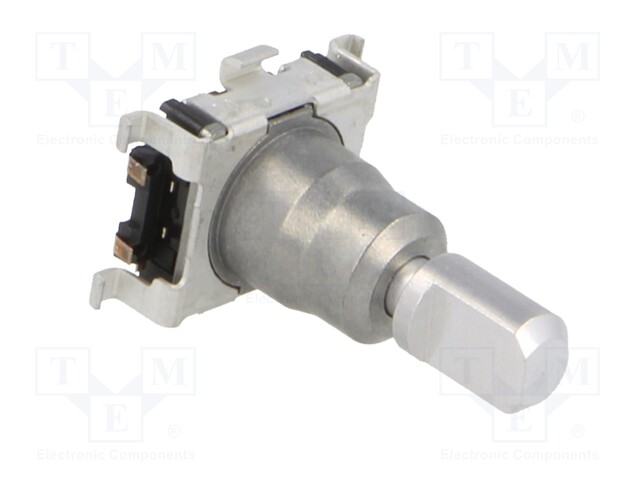

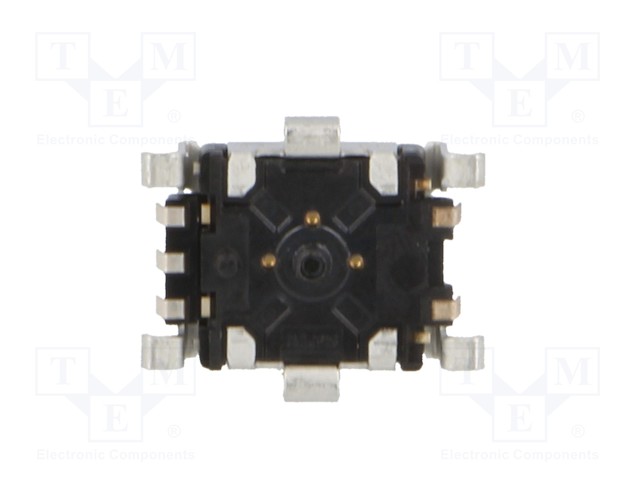

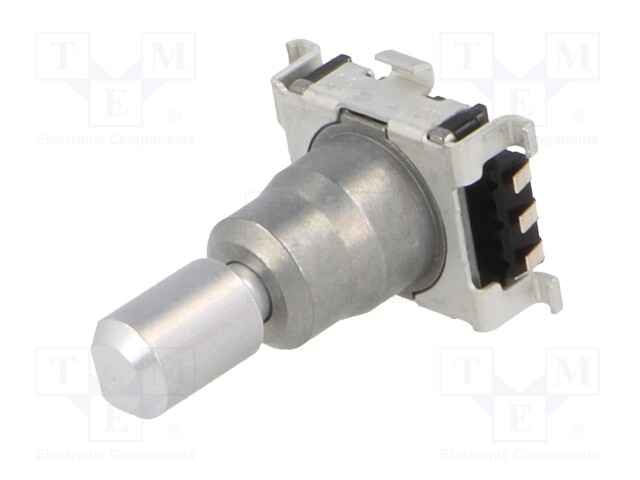

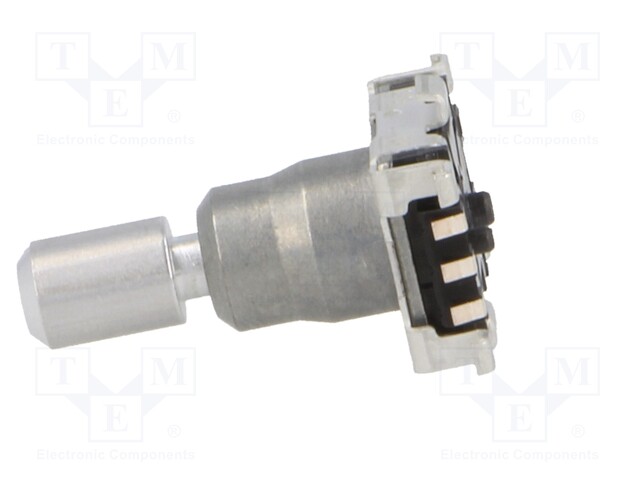

Encoder: incremental; SMD; 15imp/revol; two phase A and B; 10mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC11J1525402
    Manufacturer: ALPS
    Manufacturer code: EC11J1525402
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Number of positions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Encoders features
    • Key stroke
    • Cut depth

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Encoder: incremental; SMD; 15imp/revol; two phase A and B; 10mA

    Mounting SMD
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 10mA
    Operating temperature -40...85°C
    Number of positions 30
    Mechanical durability 100000cycles
    Resolution 15imp/revol.
    Output signal two phase A and B
    Shaft length 10mm
    Shaft diameter 5.975mm
    Shaft surface D spring
    Encoders features with button
    Key stroke 1.5mm
    Cut depth 1.525mm
