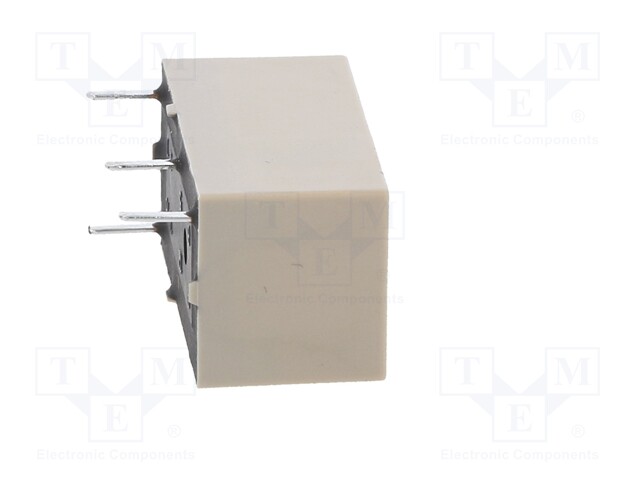

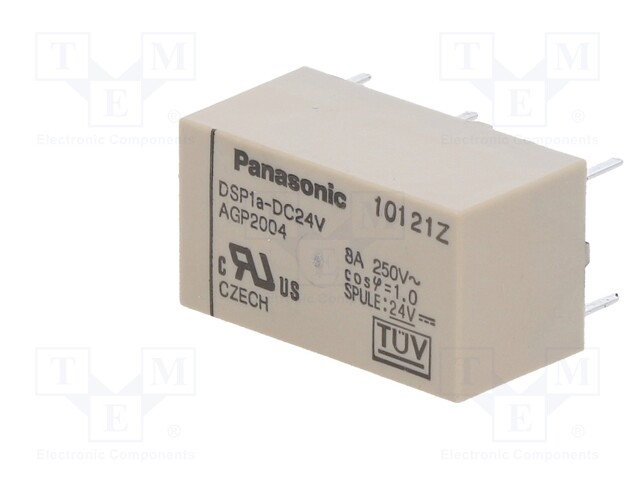

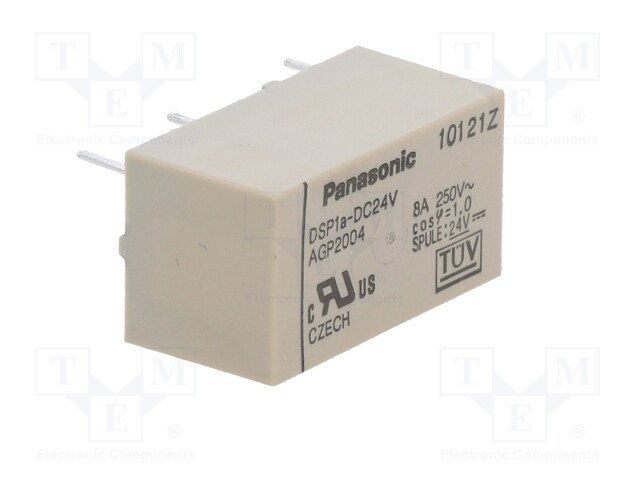

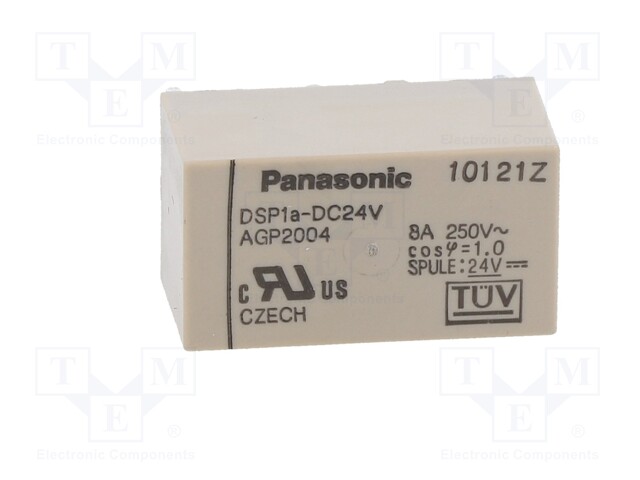

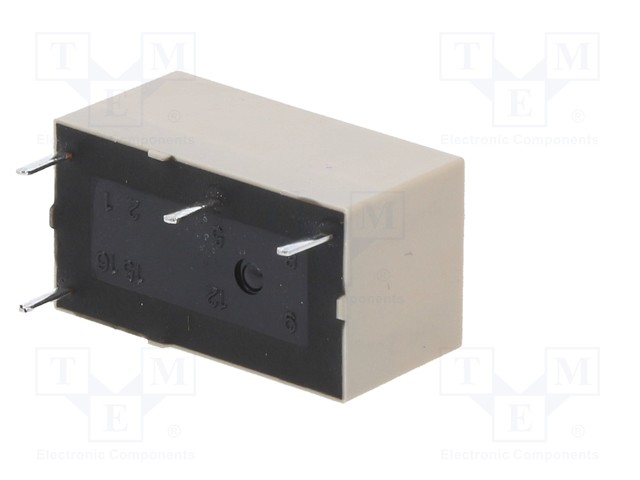

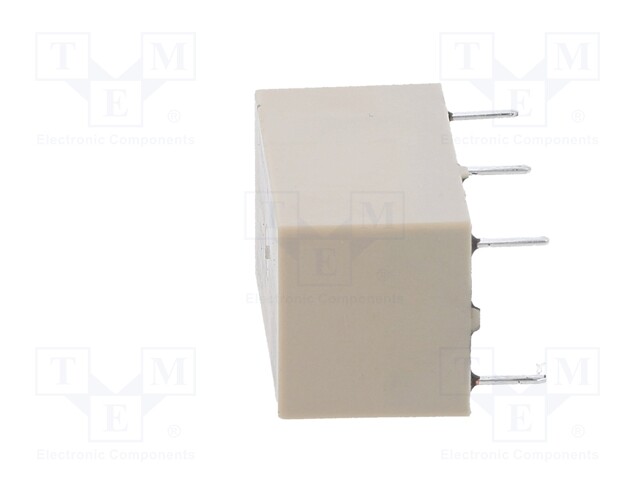

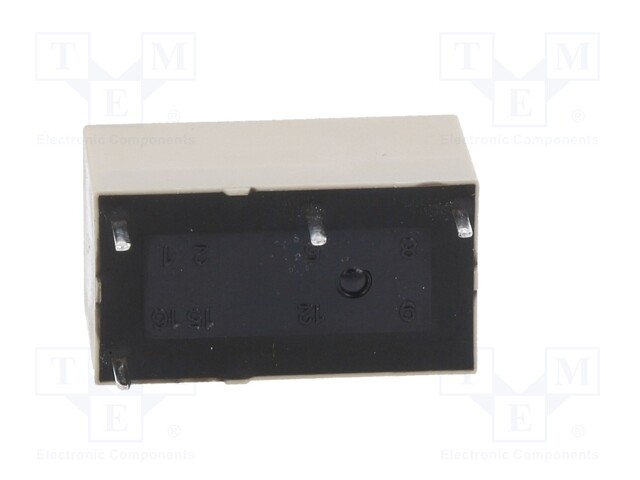

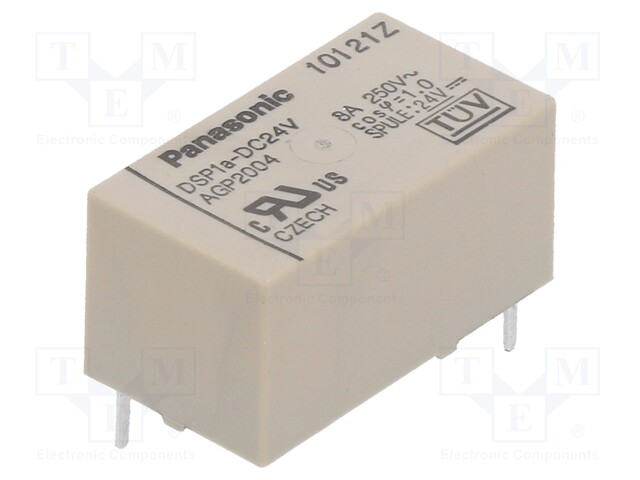

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 1.92kΩ

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: DSP1A24D
    Manufacturer: PANASONIC
    Manufacturer code: DSP1A24D
    • Mounting
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Relay series
    • Coil current

    8.39 € 8.39 € (wo VAT) 8.39 EUR

    8.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 8A/250VAC; 1.92kΩ

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub> Au
    Body dimensions 20.2x11x10.5mm
    Switched voltage max. 250V AC
    Coil resistance 1.92kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 300mW
    Relay series DS-P
    Coil current 12.5mA
