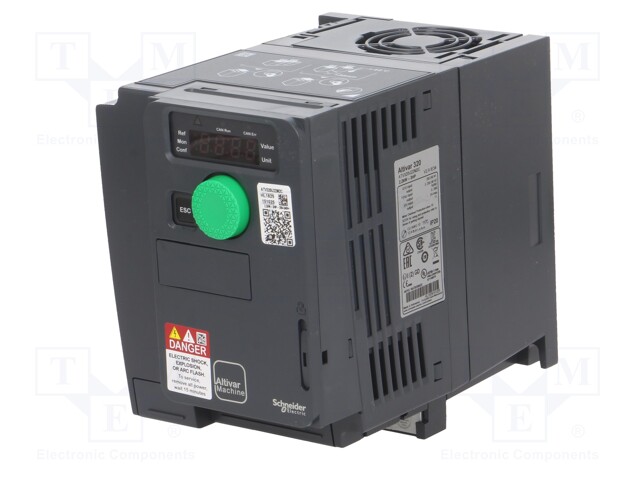

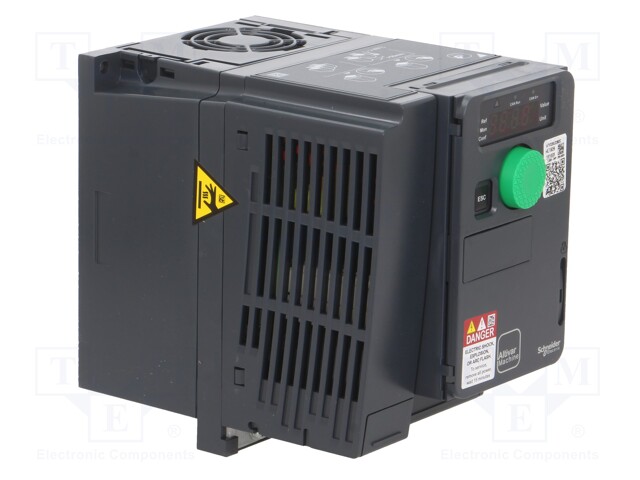

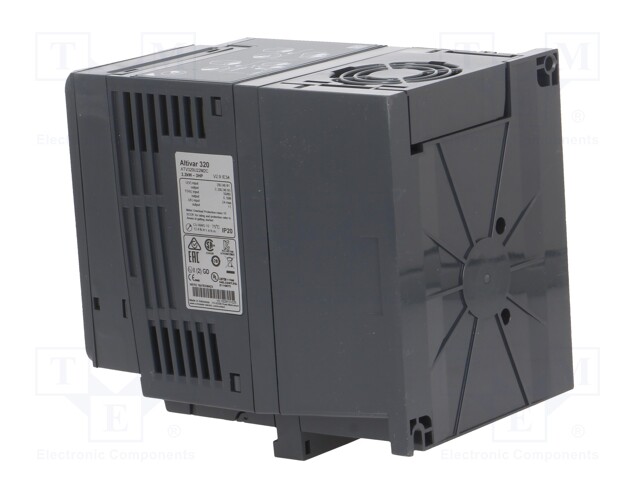

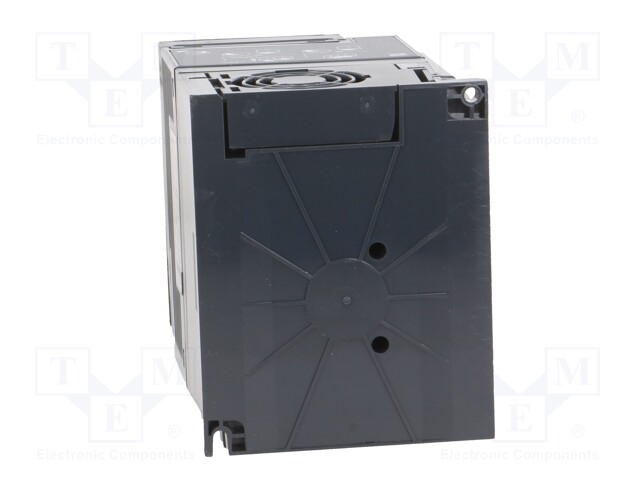

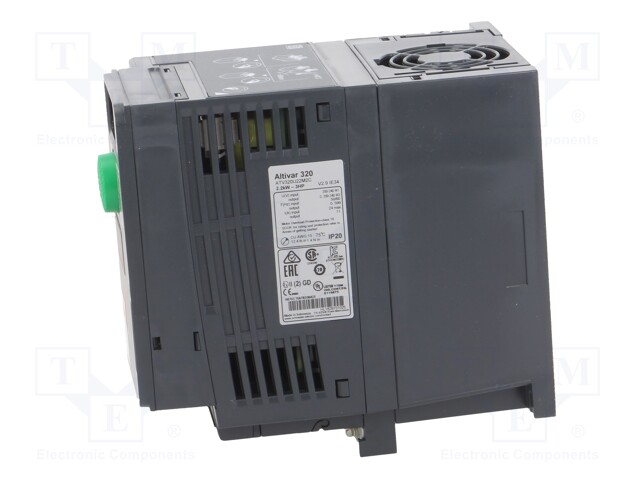

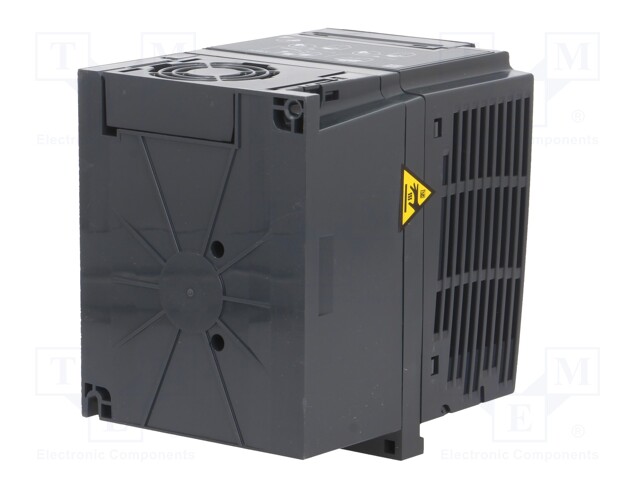

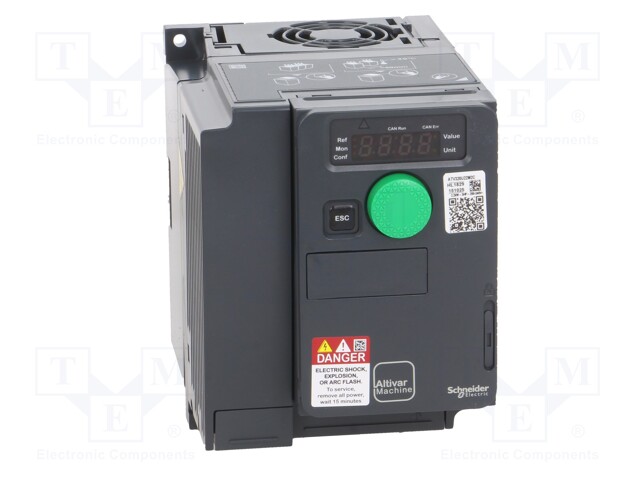

Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 9
Multiples:
1.0
Minimum quantity:
1.0
Product code:
ATV320U22M2C
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer code: ATV320U22M2C
Product downloads
Specification for Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 9
Mounting | for wall mounting |
Supply voltage | 200...240V AC |
Operating temperature | -10...50°C |
IP rating | IP20 |
Type of module | vector inverter |
Series | ATV320 Compact |
Current rating | 11A |
Output frequency | 0.1...599Hz |
Number of inputs | 9 |
Number of outputs | 4 |
Electrical connection | screw terminals |
Driver features | integrated EMC filter |
Max motor power | 2.2kW |
Inverter output voltage | 3 x 230V AC |
The programming method | keypad, PC |
Number of analog outputs | 1 |
Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
Number of analog inputs | 3 |
