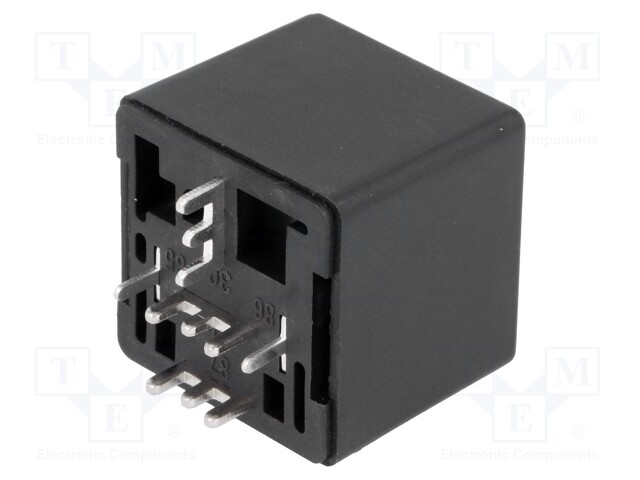

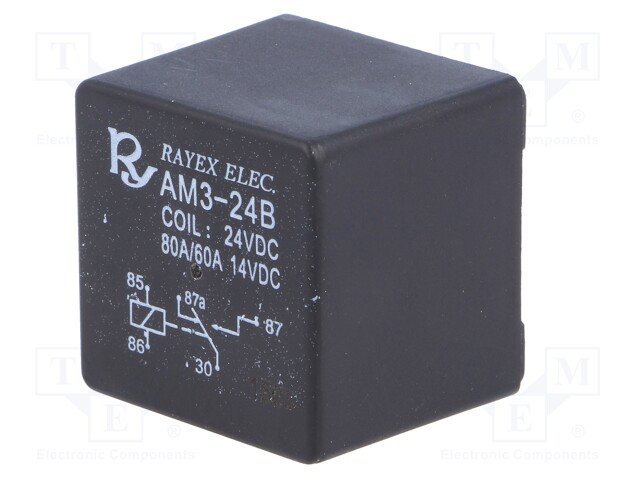

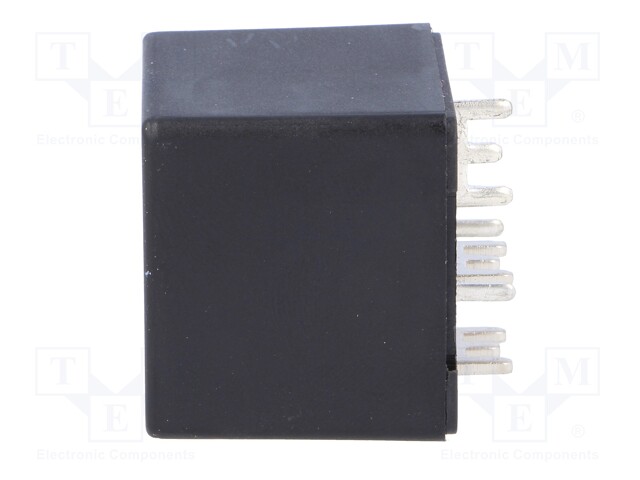

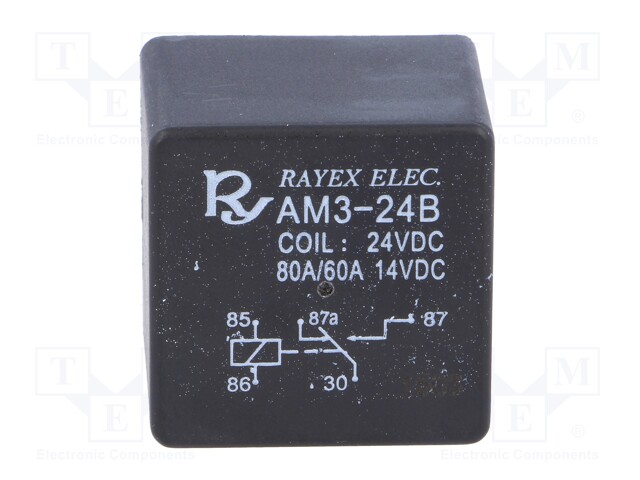

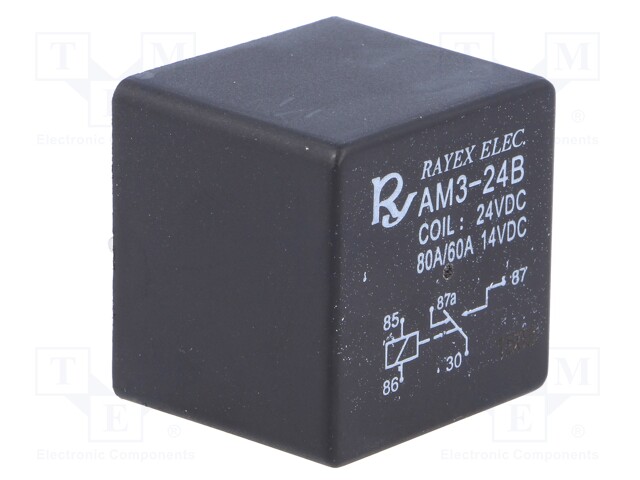

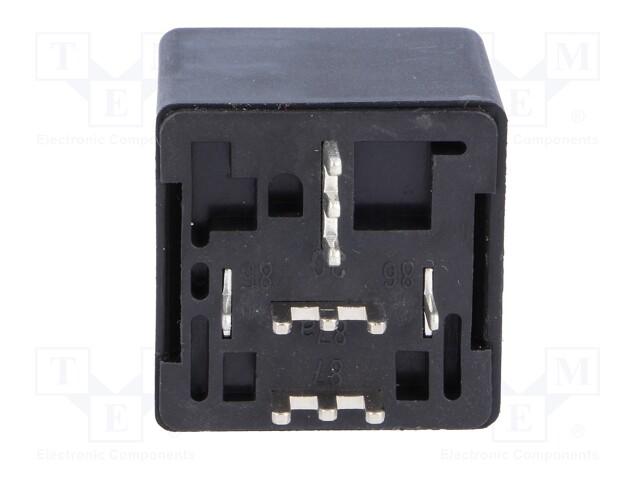

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 80A; automotive; 1.8W

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AM3-24BP
    Manufacturer: RAYEX ELECTRONICS
    Manufacturer code: AM3-24BP
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Relay series
    • Operate time
    • Release time
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 80A; automotive; 1.8W

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgCdO

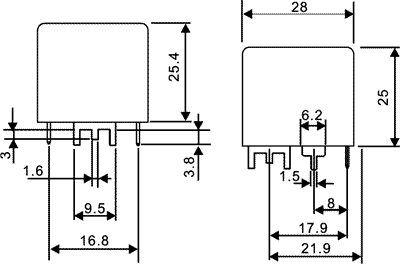

    Body dimensions 28x28x25mm
    Coil resistance 288Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 60A / 14V DC
    Contact resistance 50mΩ
    Contact current max. 80A
    Relay variant automotive
    Type of relay electromagnetic
    Coil power consumption 1.8W
    Relay series AM3
    Operate time 7ms
    Release time 5ms
    Coil current 83mA
