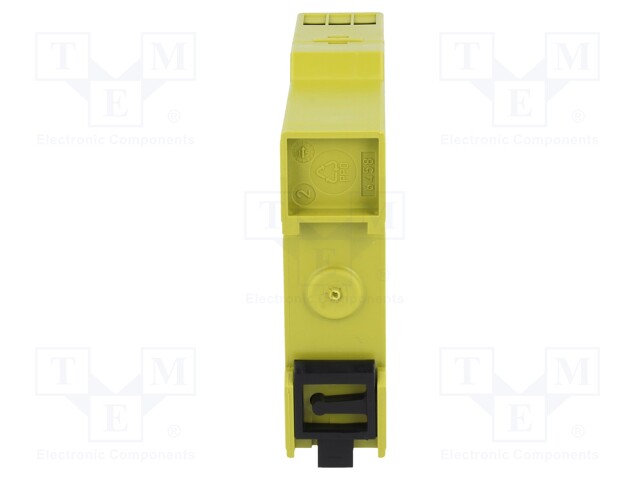

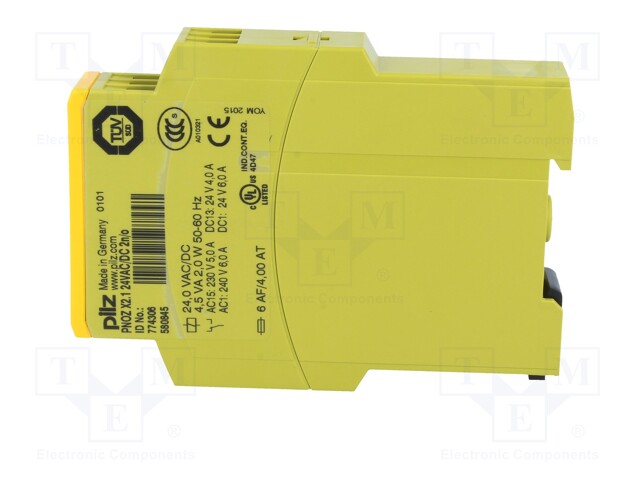

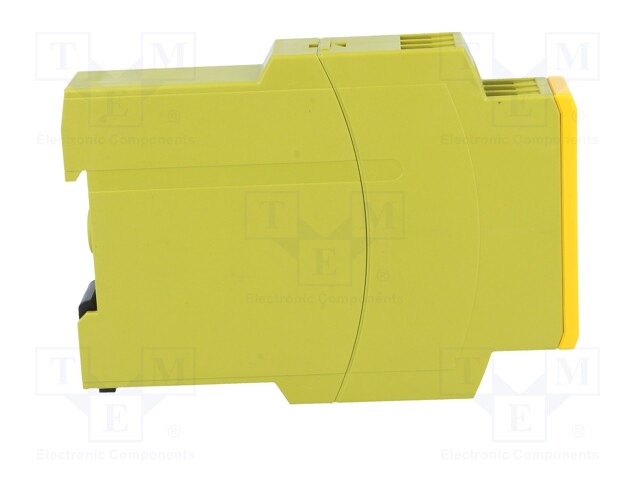

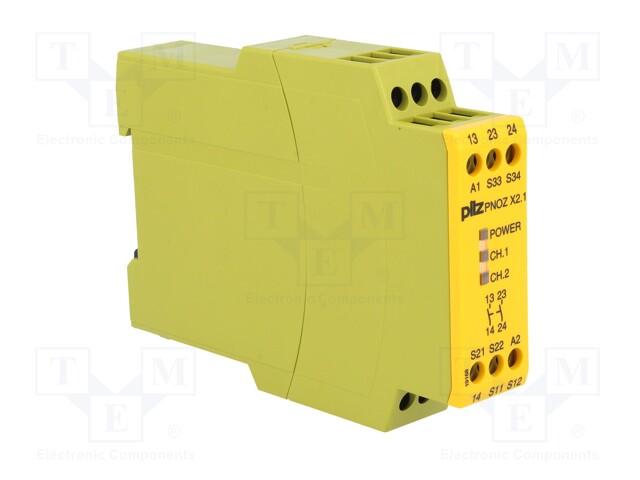

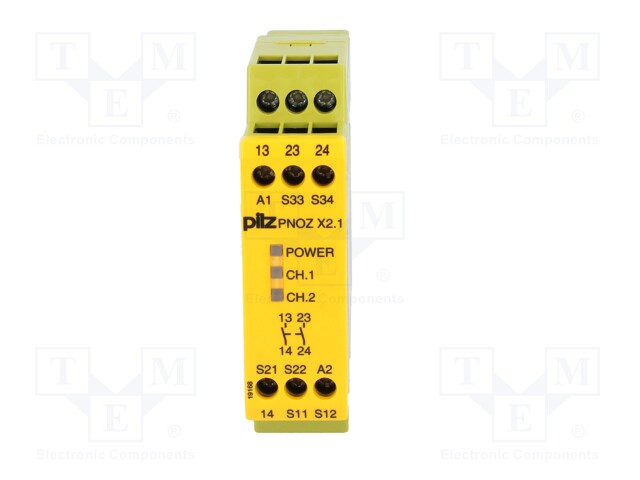

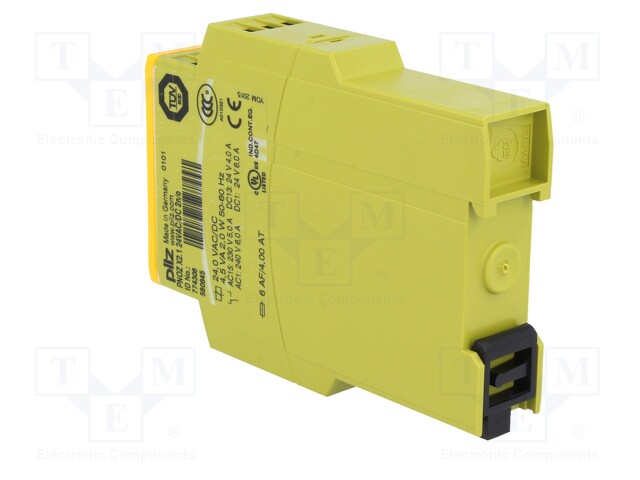

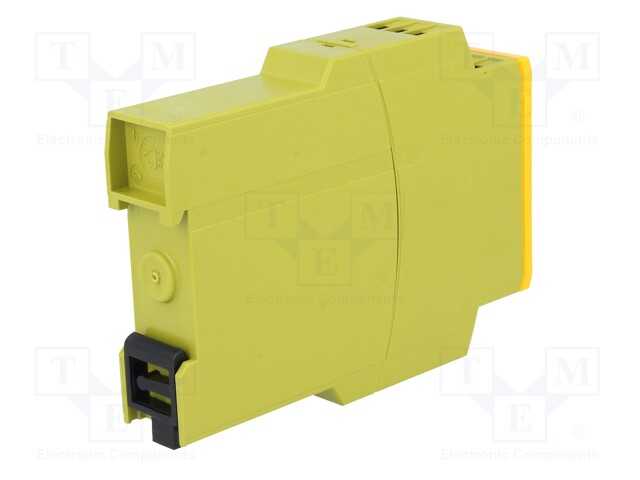

Module: safety relay; Series: PNOZ X2.1; 24VDC; 24VAC; IN: 2; OUT: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 774306
    Manufacturer: PILZ
    Manufacturer code: 774306
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Series
    • Body dimensions
    • Number of inputs
    • Number of outputs
    • Electrical connection
    • Contacts configuration
    • Safety category
    • Safety category
    • Input 1 properties

    198.91 € 198.91 € (wo VAT) 198.91 EUR

    198.91 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Module: safety relay; Series: PNOZ X2.1; 24VDC; 24VAC; IN: 2; OUT: 2

    Mounting for DIN rail mounting
    Supply voltage 24V AC, 24V DC
    Operating temperature -10...55°C
    IP rating IP40
    Type of module safety relay
    Series PNOZ X2.1
    Body dimensions 87x22.5x121mm
    Number of inputs 2
    Number of outputs 2
    Electrical connection screw terminals
    Contacts configuration NO x2
    Safety category 2, 4 (EN ISO 13849)
    Input 1 properties 2 channels with between-channels short circuits detection
