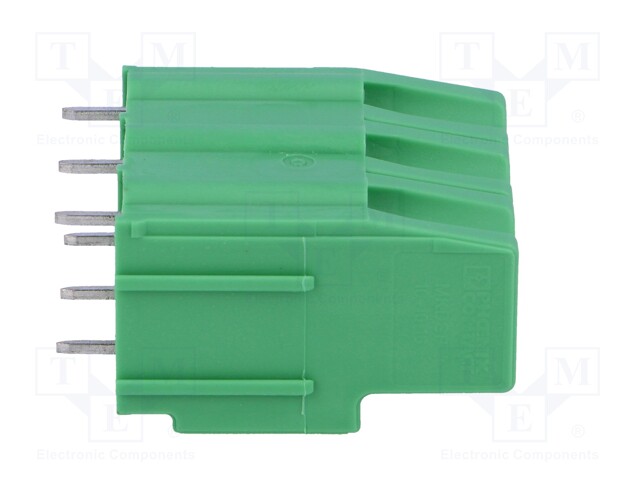

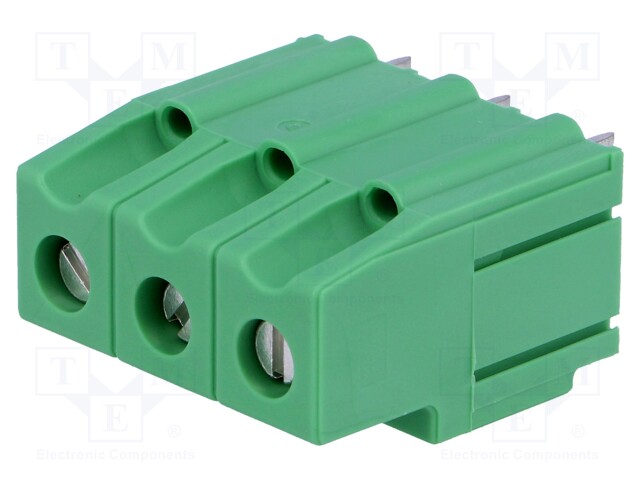

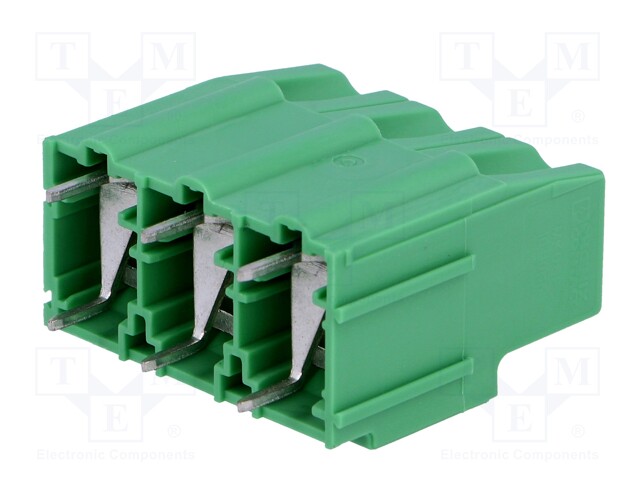

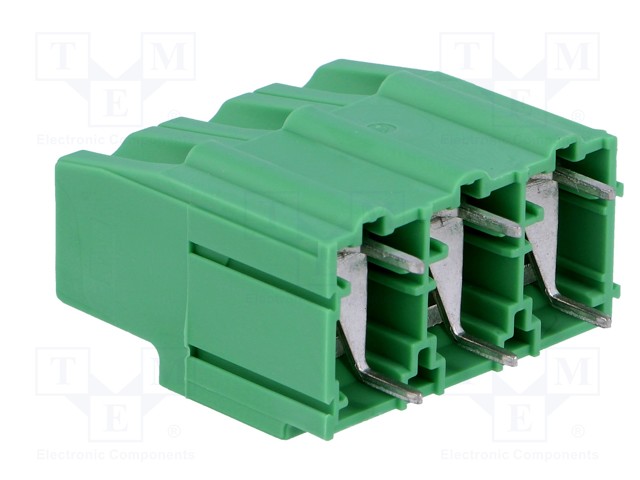

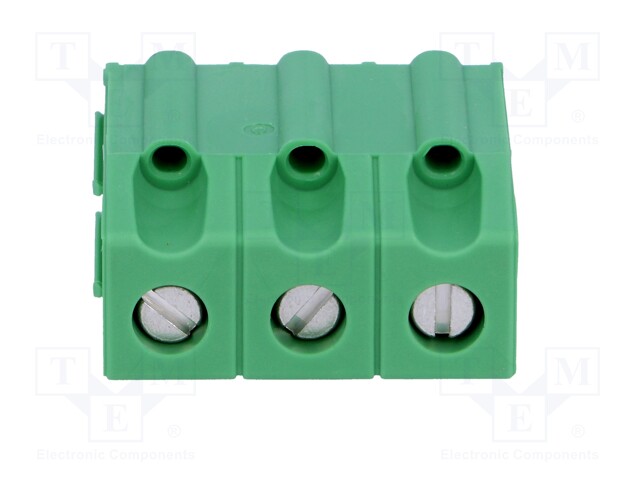

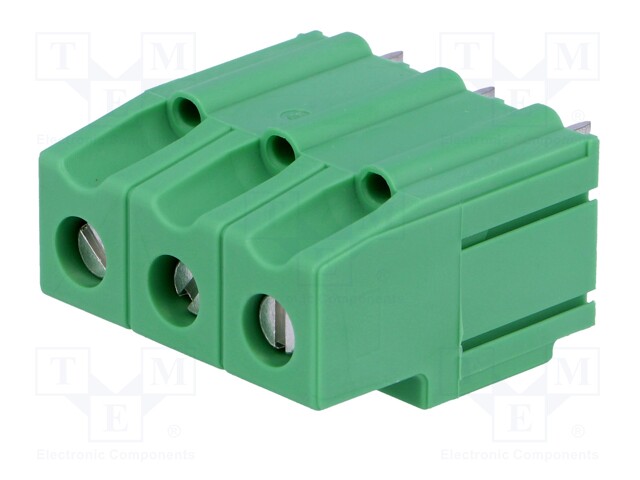

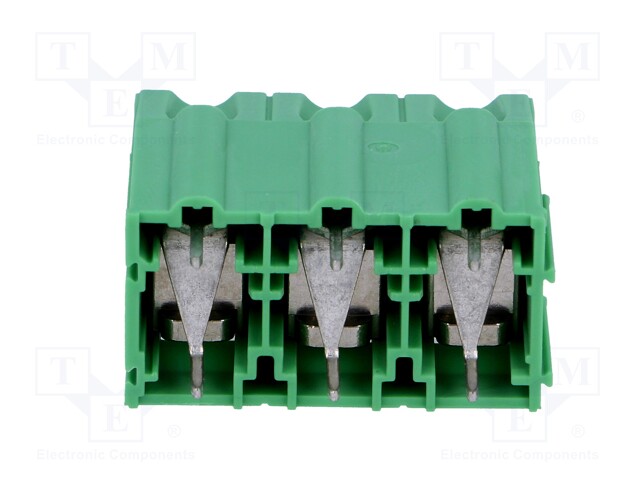

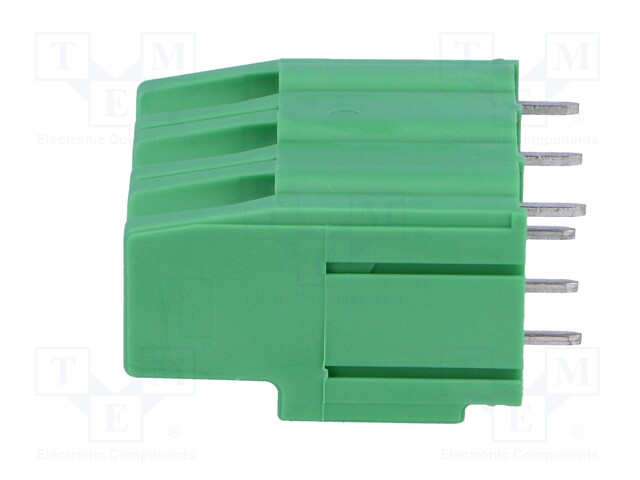

PCB terminal block; angled 90°; 10.16mm; ways: 3; on PCBs; tinned

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1774137
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 1774137
    • Operating temperature
    • Contacts pitch
    • Electrical mounting
    • Electrical mounting
    • Connector
    • Mechanical mounting
    • Colour
    • Contact plating
    • Type of connector
    • Body material
    • Flammability rating
    • Length
    • Height
    • Current rating
    • Number of ways
    • Type of pin configuration
    • Rated voltage
    • Conform to the norm
    • Spatial orientation
    • Connectors features
    • Depth

    10.98 € 10.98 € (wo VAT) 10.98 EUR

    10.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for PCB terminal block; angled 90°; 10.16mm; ways: 3; on PCBs; tinned

    Operating temperature -40...105°C
    Contacts pitch 10.16mm
    Electrical mounting screw terminal, THT
    Connector terminal
    Mechanical mounting on PCBs
    Colour green
    Contact plating tinned
    Type of connector PCB terminal block
    Body material polyamide
    Flammability rating UL94V-0
    Length 30.48mm
    Height 29.3mm
    Current rating 67A
    Number of ways 3
    Type of pin configuration 1x3
    Rated voltage 690V
    Conform to the norm VDE
    Spatial orientation angled 90°
    Connectors features assembling possibility
    Depth 18.3mm
